KTM 2016 RC 390 User Manual

14 WHEELS, TIRES 113

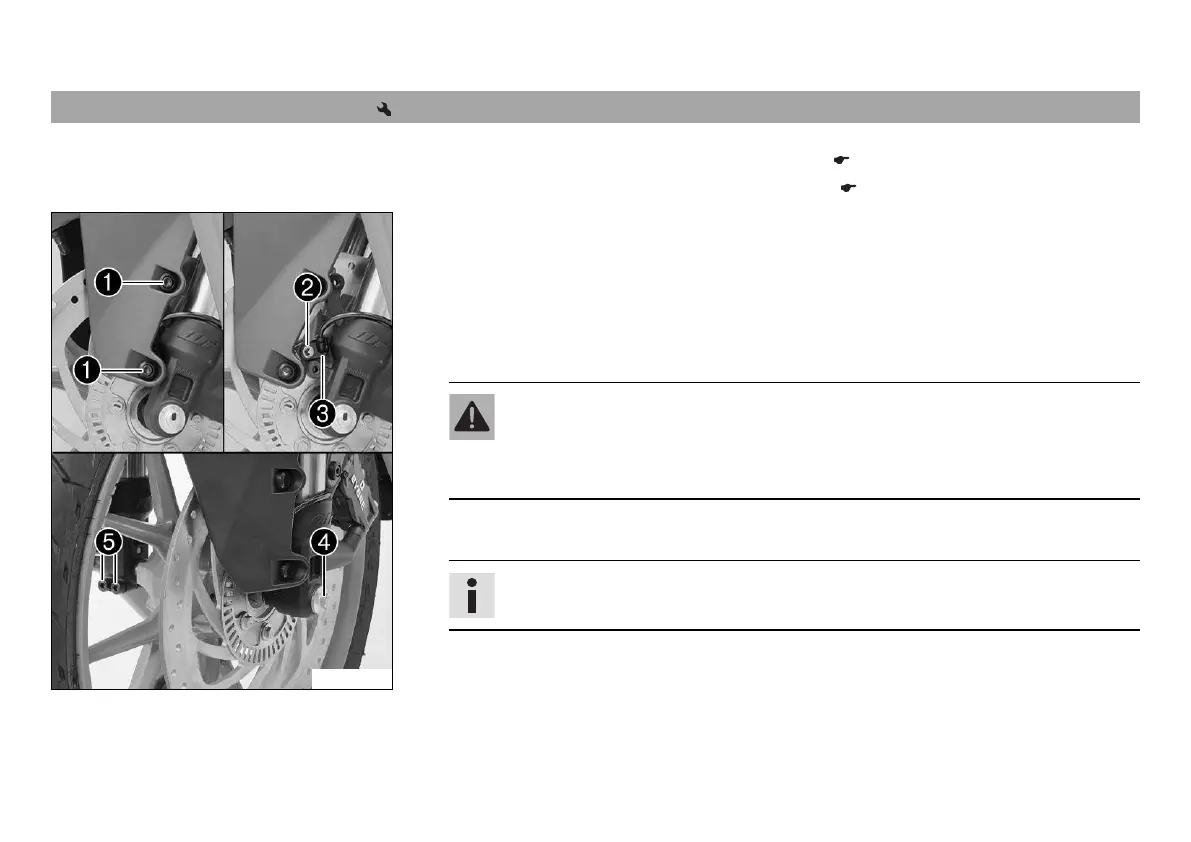

14.1 Removing the front wheel
Preparatory work
– Raise the motorcycle with the rear wheel stand. ( p. 78)
– Raise the motorcycle with the front wheel stand. ( p. 79)
L02277-10
Main work
–
Remove screws

and push the fender to the side.
–
Remove screw

and pull wheel speed sensor

out of the hole.
–
Loosen screw

and screws

.
–
Unscrew screw

about 6 turns and press your hand on the screw to push the wheel
spindle out of the axle clamp. Remove screw

.
Warning
Danger of accidents Reduced braking effect caused by damaged brake discs.
– Always lay the wheel down in such a way that the brake discs are not dam-
aged.
– Holding the front wheel, withdraw the wheel spindle. Take the front wheel out of the
fork.
Info
Do not pull the hand brake lever when the front wheel is removed.

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
