KTM 2016 RC 390 User Manual

13 BRAKE SYSTEM 112
M00461-11
–

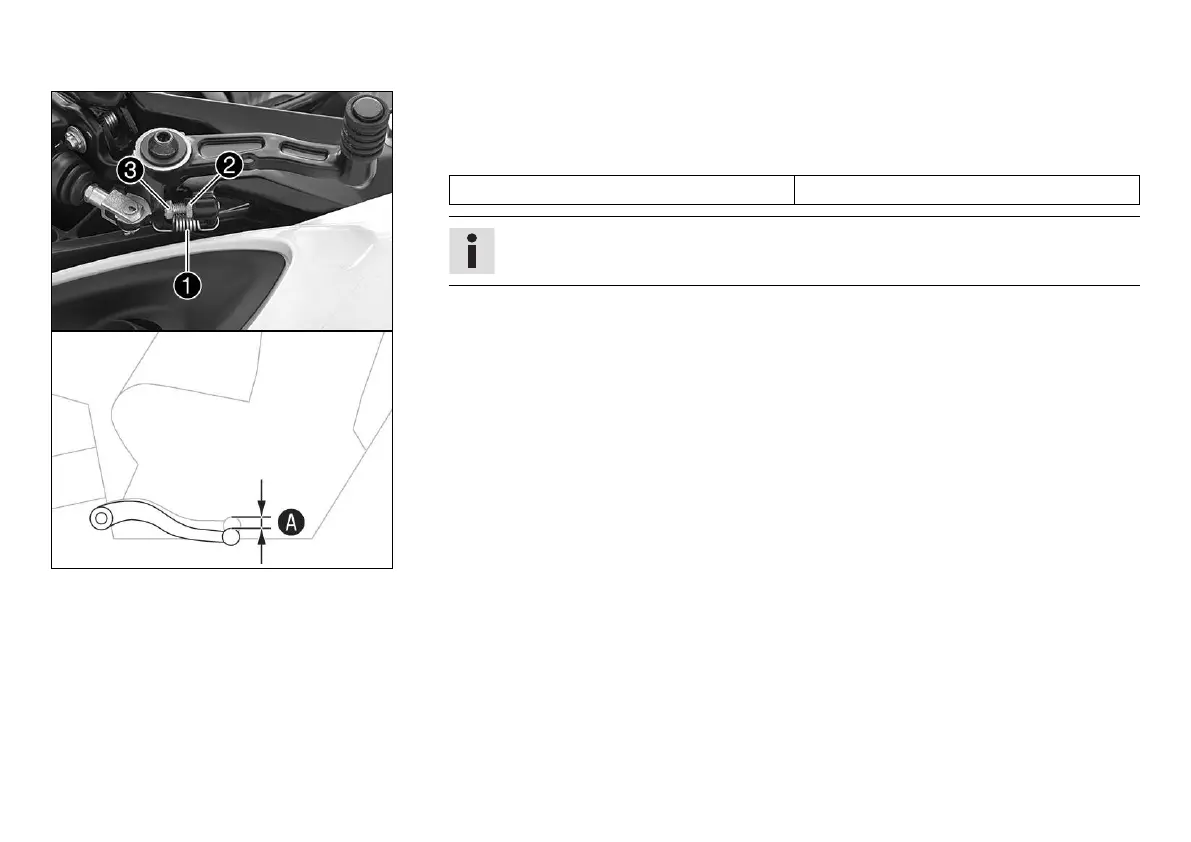

Disconnect spring

.
–
Release nut

and use screw

to adjust the specified free travel

.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
The range of adjustment is limited.
–
Hold screw

and tighten nut

.
–
Attach spring

.

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
