KTM 2016 RC 390 User Manual

15 ELECTRICAL SYSTEM 130

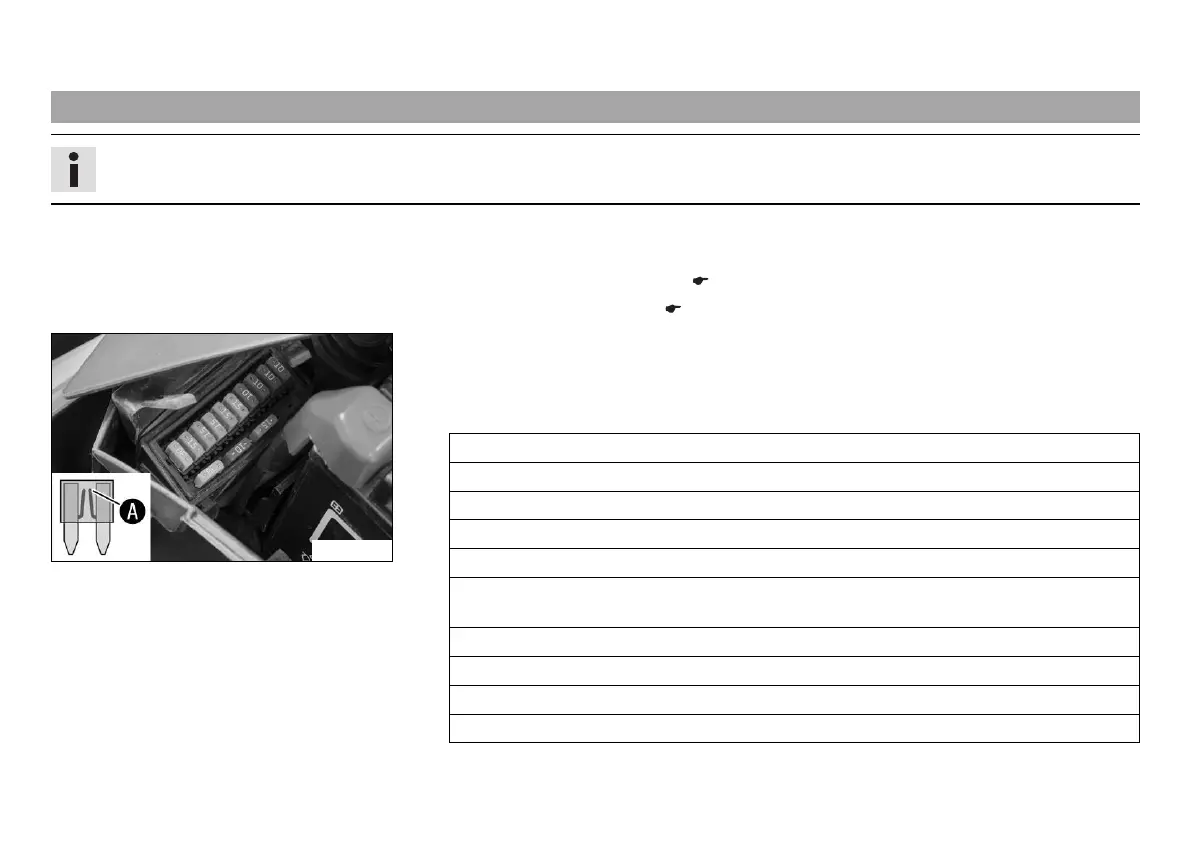

15.5 Changing the fuses of individual power consumers
Info
The fuse box with the main fuse and fuses of the individual power consumers is located next to the positive terminal of the battery.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the front rider's seat. ( p. 81)
– Remove the battery cover. ( p. 91)
L02275-11
Main work
– Open fuse box cover.
– Remove the defective fuse.
Guideline
Fuse 1 - 30 A - main fuse
Fuse 2 - 15 A - combination instrument, alarm system (optional)
Fuse 3 - 15 A - fuel pump, power relay
Fuse 4 - 15 A - ignition coil
Fuse 5 - 15 A - radiator fan
Fuse 6 - 15 A - horn, brake light, turn signal, high beam, low beam, parking light, tail
light, license plate lamp
Fuse 7 - 10 A - combination instrument, control unit
Fuse 8 - 10 A - ABS control unit
Fuse 9 - 10 A - auxiliary equipment
Fuse 10 - 10 A - auxiliary equipment

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
