KTM 2016 RC 390 User Manual

15 ELECTRICAL SYSTEM 137

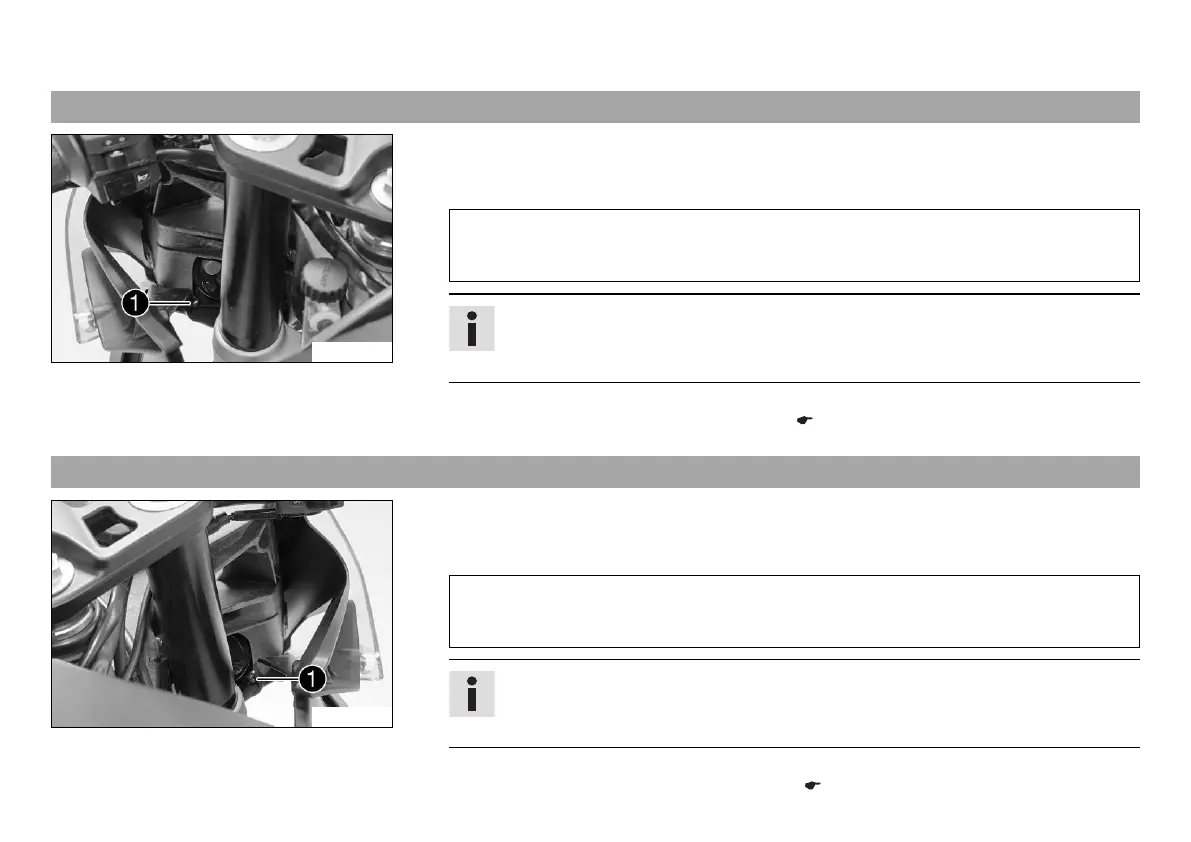

15.10 Adjusting the headlight range of the low beam
L02164-10
Main work
–
Adjust the beam range of the low beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the low
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the low beam headlight adjustment. ( p. 135)
15.11 Adjusting the headlight range of the high beam
L02163-10
Main work
–
Adjust the beam distance of the high beam by turning screw

.
Guideline
For a motorcycle with rider, and with luggage and a passenger if applicable, the
light/dark boundary must be exactly on the lower mark (applied in: Checking the high
beam headlight setting).
Info
Turn clockwise to increase the headlight range; turn counterclockwise to reduce
the headlight range.
Finishing work
– Check the high beam headlight adjustment. ( p. 136)

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
