KTM 2016 RC 390 User Manual

15 ELECTRICAL SYSTEM 128
15.4 Changing the ABS fuses
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never bypass or repair fuses.
Info
Two fuses for the ABS are located under the protective cap next to the negative terminal of the battery. These fuses protect the
return pump and the hydraulic unit of the ABS. The third fuse, which protects the ABS control unit, is located in the fuse box.
Preparatory work
– Switch off all power consumers and the engine.
– Remove the front rider's seat. ( p. 81)
– Remove the battery cover. ( p. 91)

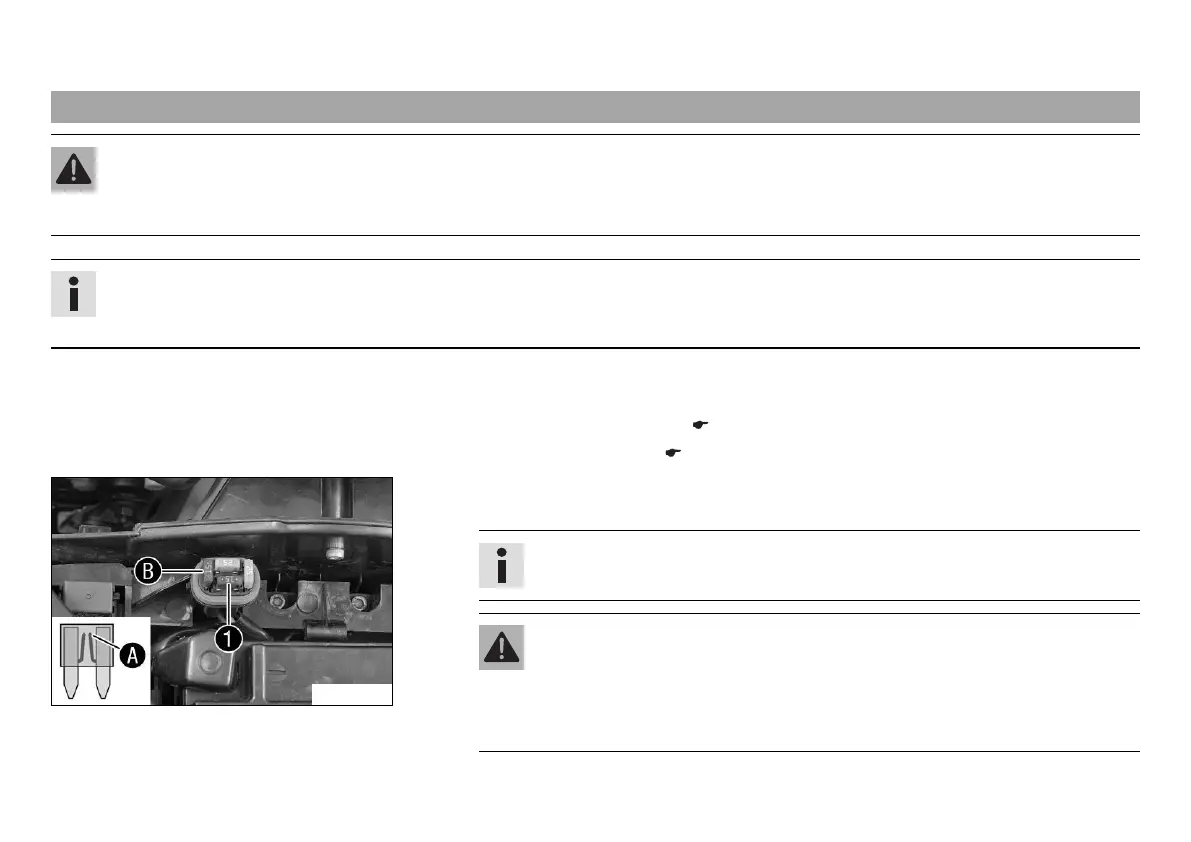

L02158-10
To change the fuse of the ABS hydraulic unit:
–
Take off the protection cap and remove fuse

.
Info
A defective fuse is indicated by a burned-out fuse wire

.
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are
used.
– Use only fuses with the prescribed amperage. Never bypass or repair
fuses.
– Use spare fuses with the correct rating only.

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
