KTM 2016 RC 390 User Manual

12 SERVICE WORK ON THE CHASSIS 88
L02150-10
Main work
–
Loosen nut

.
–
Loosen nuts

.
–

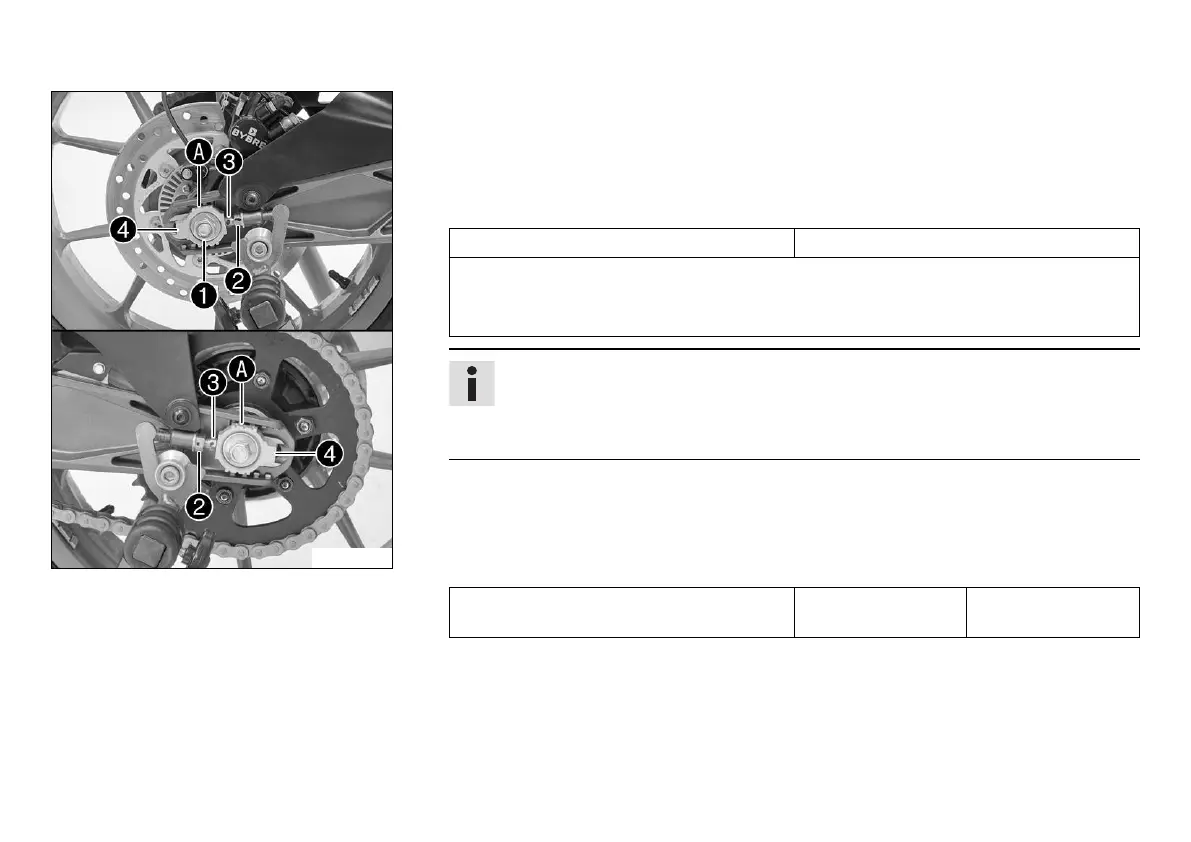

Adjust the chain tension by turning adjusting screws

on the left and right.
Guideline
Chain tension 5… 7 mm (0.2… 0.28 in)
Turn the adjusting screws

on the left and right so that the markings on the
left and right chain adjusters

are in the same position relative to the reference
marks

. The rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even, so you should check the setting at different chain
positions.
–
Tighten nuts

.
–
Make sure that chain adjusters

are fitted correctly on adjusting screws

.
–
Tighten nut

.
Guideline
Nut, rear wheel spindle M14x1.5 90 Nm
(66.4 lbf ft)

KTM 2016 RC 390 Specifications

General

Displacement	373.2 cc
Bore x Stroke	89 mm x 60 mm
Compression Ratio	12.6:1
Power	32 kW (44 hp) @ 9, 500 rpm
Torque	35 Nm @ 7, 250 rpm
Transmission	6-speed
Rear Suspension	WP monoshock
Rear Brake	230 mm disc, single-piston caliper
Front Tire	110/70 ZR17
Rear Tire	150/60 ZR17
Seat Height	820 mm
Fuel Tank Capacity	10 liters
Dry Weight	147 kg
Ground Clearance	178.5 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Electronic Fuel Injection
Front Suspension	WP USD 43 mm
ABS	Bosch 9MB Two-Channel ABS
Frame	Steel trellis frame
Front Brake	300 mm disc, 4-piston radial caliper
