ELECTRICAL SYSTEM 16
101

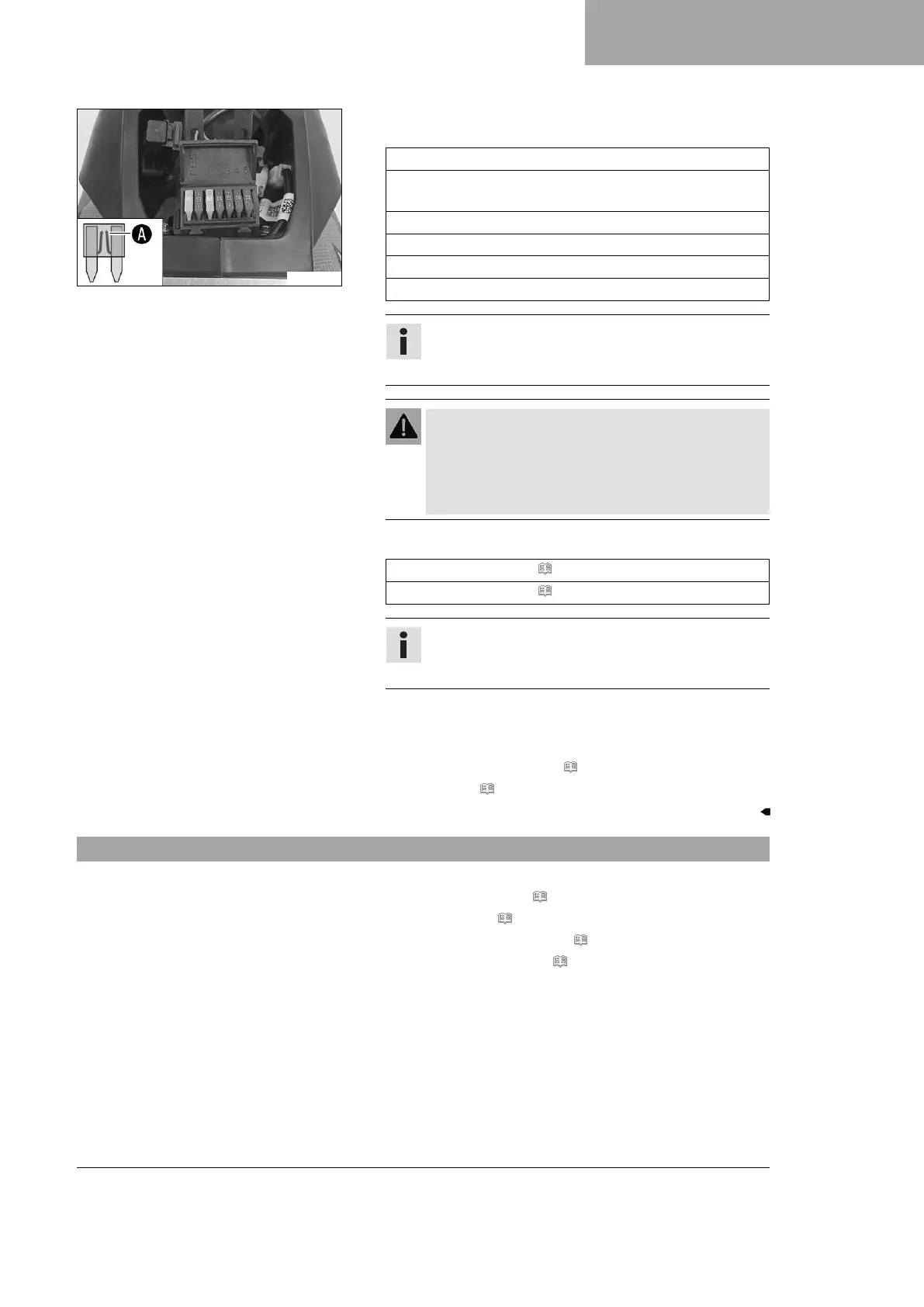

F01686-10
– Remove the faulty fuse.
Guideline
Fuses res - 10 A and 20 A - spare fuses
Fuse 1 - 20 A - main fuse, motor electronics control unit,
ignition lock
Fuse 2 - 10 A - ignition lock, main switch, tip switch
Fuse 3 - 10 A - high beam, low beam
Fuse 4 - 10 A - horn, brake light, turn signal
Fuse 5 - 10 A - water pump
Info
You can recognize a faulty fuse by a burned-out fuse
wire
A
.
Warning
Fire hazard Incorrect fuses overload the electrical sys-
tem.
– Only use fuses with the required ampere value.
– Do not bypass or repair fuses.
– Insert spare fuse with the correct rating only.
Fuse (75011088010) ( p. 133)
Fuse (75011088020) ( p. 133)
Tip
Replace the spare fuse in the fuse box so that it is
available if needed.
– Check that the power consumer is functioning properly.
– Close the fuse box cover and allow the catches to engage.
Finishing work
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
16.5 Removing the headlight mask with the headlight
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
