KTM Freeride E-XC 2019 - Handlebar Position; Adjusting the Handlebar Position

TUNING THE CHASSIS 12
55
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.

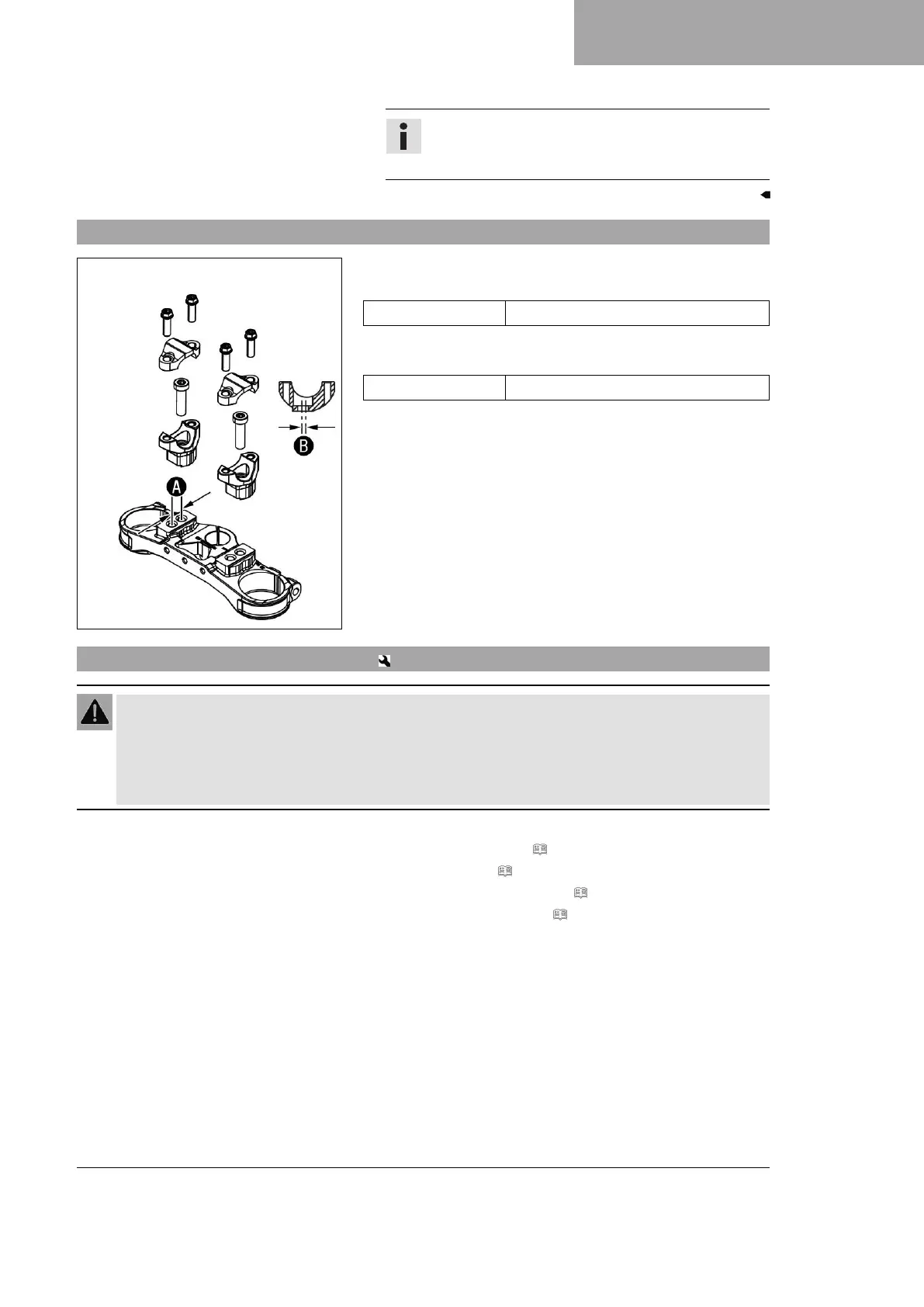

12.14 Handlebar position
H02563-10
On the upper triple clamp, there are two holes at a distance of
A
to each other.
Hole distance
A
15 mm (0.59 in)
The holes on the handlebar supports are placed at a distance
of
B
from the center.
Hole distance
B
3.5 mm (0.138 in)
The handlebar supports can be mounted in four different posi-
tions.
12.15 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
