17.2 Installing the KTM PowerPack
Caution
Risk of injury The KTM PowerPack is very heavy.
The KTM PowerPack must rest flush on the electric motor after installation.
– Only lift the KTM PowerPack using the carry handle.
– Make sure that nobody is pinched when the KTM PowerPack is removed or installed.
Note
Material damage Components damaged or destroyed by water or dirt.
– Before installing the KTM PowerPack, check that the battery discharge plug on the electric motor and the bat-
tery discharge socket on the KTM PowerPack are clean.
– Check the battery discharge plug form ring.
– Clean the battery discharge plug and the battery discharge socket without using water or compressed air if the
battery discharge plug or the battery discharge socket is dirty.
– After cleaning, spray silicone spray onto the battery discharge plug form ring.
Main work
– Remove the protection cap. ( p. 71)
– Check the battery discharge plug form ring. ( p. 71)
402145-12
–

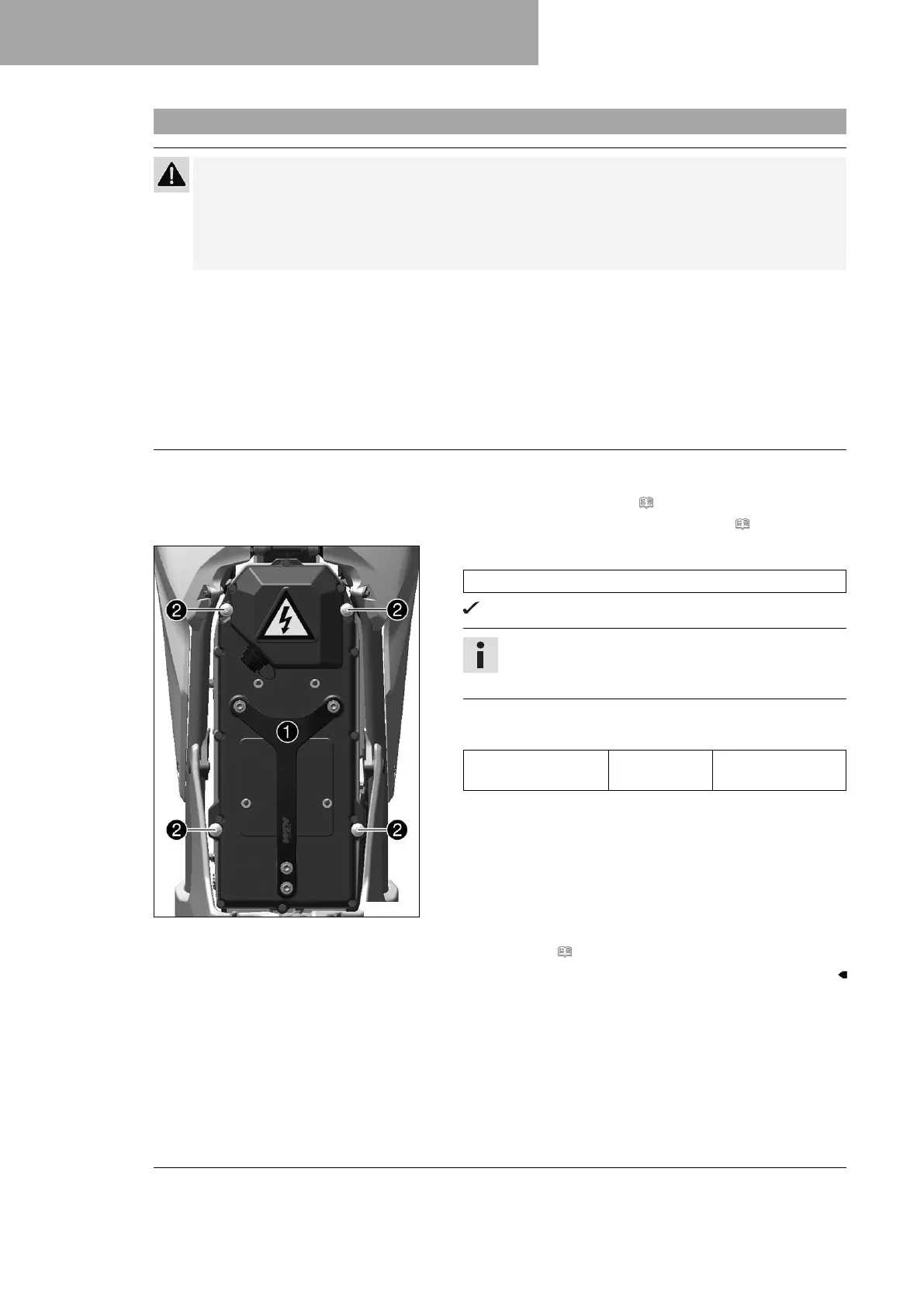

Position the KTM PowerPack
1
in the vehicle.
Lifting strap (70029022000)
The KTM PowerPack is resting flush on the electric motor.
Info
The KTM PowerPack is very heavy. A second person
can help with installation.
–
Tighten screws
2
.
Guideline
KTM PowerPack
attachment
M6 10 Nm (7.4 lbf ft)
Finishing work
– Lock the seat. ( p. 69)
