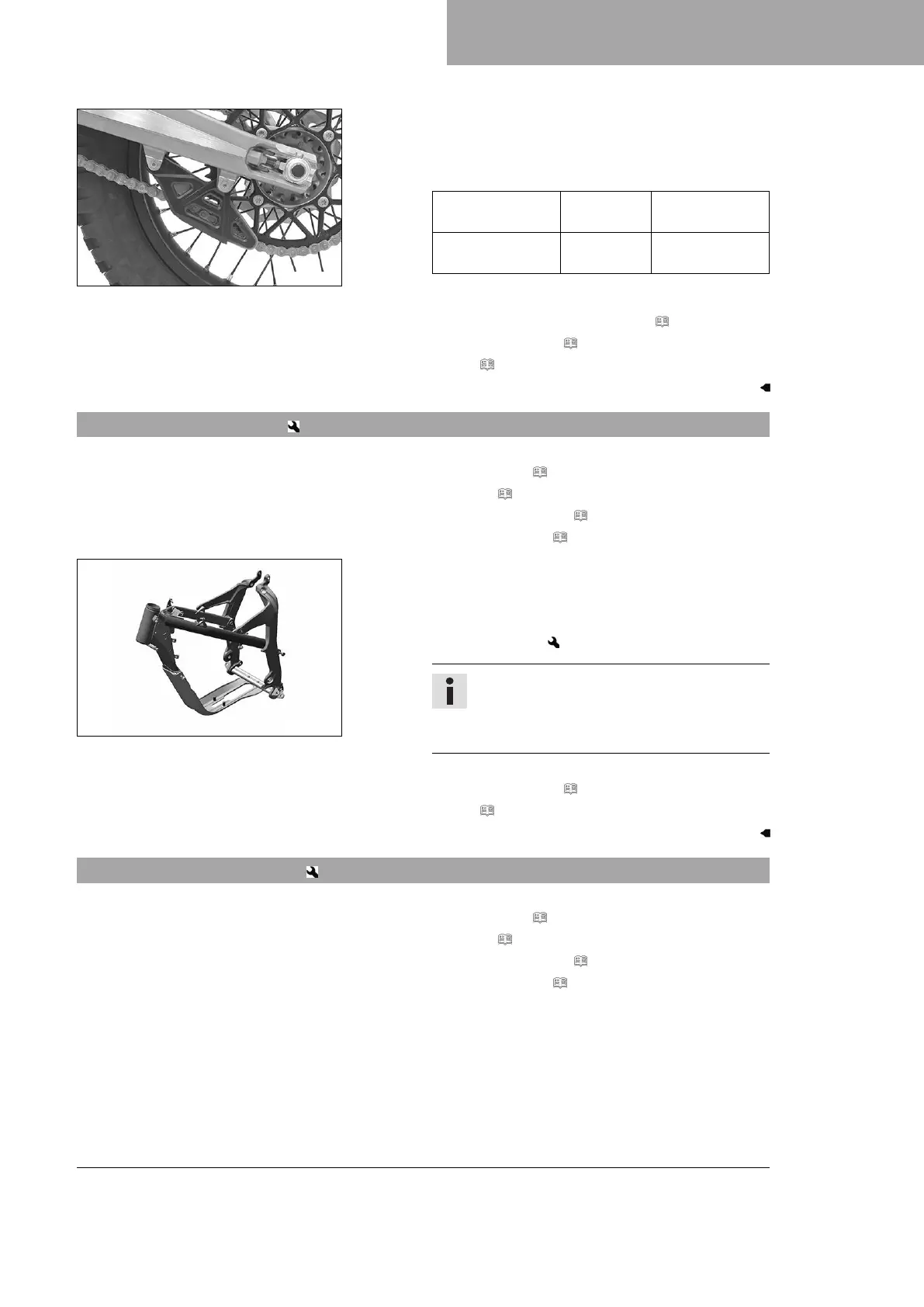

SERVICE WORK ON THE CHASSIS 13
77
F01674-01
– Check that the chain guide is firmly seated.
» If the chain guide is loose:
– Tighten the fitting on the chain guide.
Guideline
Remaining screws,
chassis
M6 10 Nm
(7.4 lbf ft)
Remaining nuts,
chassis
M6 10 Nm
(7.4 lbf ft)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
13.30 Checking the frame
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
402151-01
Main work
– Check the frame for cracking and deformation.
» If the frame exhibits cracking or deformation due to a
mechanical impact:
– Change the frame.
Info
A frame that has been damaged due to a
mechanical impact must be replaced. Repair of
the frame is not authorized by KTM.
Finishing work
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
13.31 Checking the link fork
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
