20 SERVICE WORK ON THE ENGINE
122

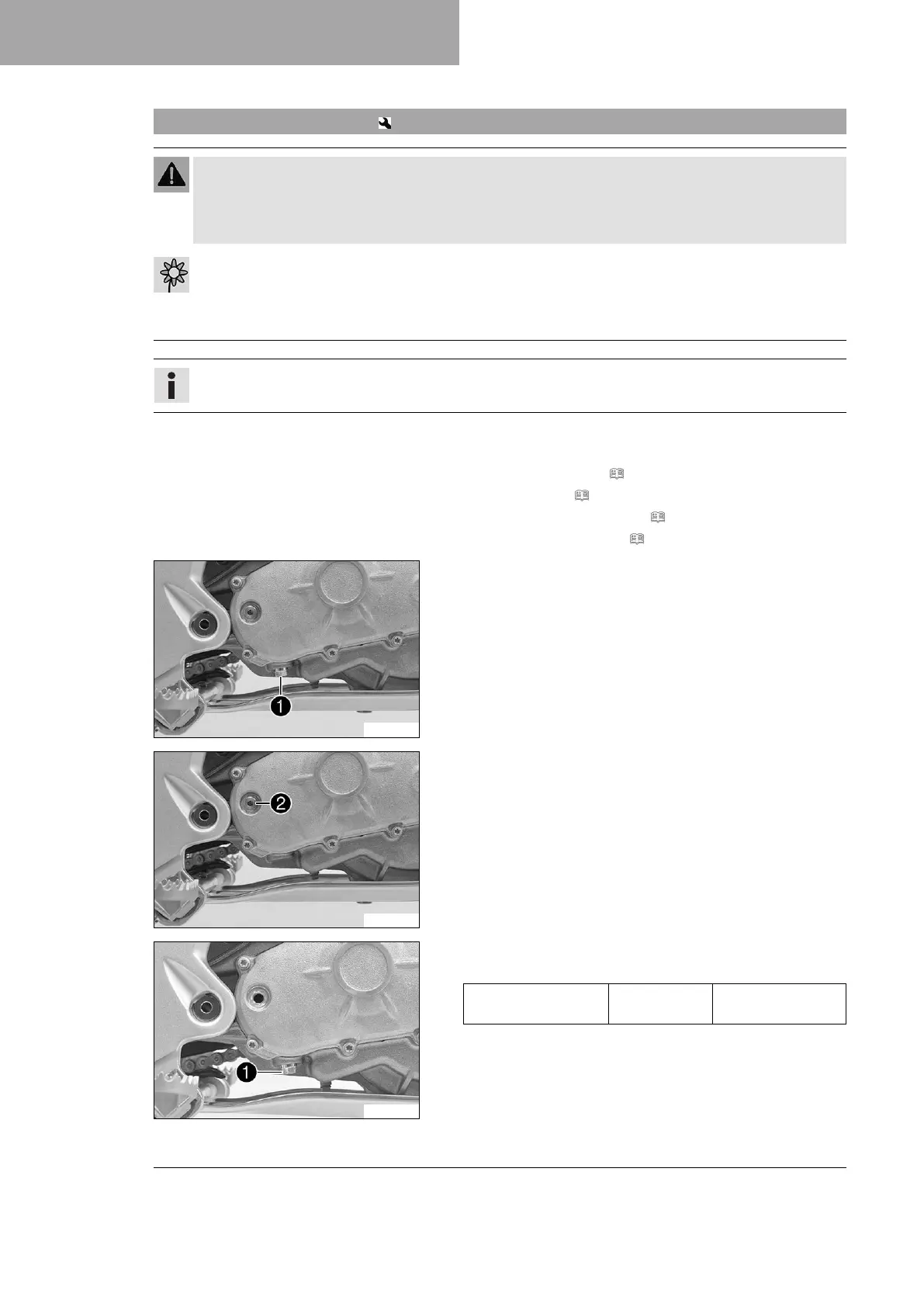

20.1 Changing the gear oil
Warning
Danger of scalding Gear oil becomes very hot when the motorcycle is operating.
– Wear suitable protective clothing and safety gloves.
– If you have been scalded, hold the burn under lukewarm water immediately.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, cleaning agents, brake fluid etc. properly and in compliance with the applica-
ble regulations.
Info
Drain the gear oil while the motor is warm.
Preparatory work
– Stand the motorcycle on its side stand on a horizontal surface.
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
C00745-10
Main work
– Place an appropriate container under the engine.
–
Remove oil drain plug
1
.
C00748-10
–
Remove screw plug
2
.
– Let the gear oil drain fully.
C00746-10
–
Mount and tighten oil drain plug
1
.
Guideline
Oil drain plug with
magnet
M12x1.5x12 20 Nm (14.8 lbf ft)
– Place the motorcycle on its left side with the aid of an assis-
tant.
