12 TUNING THE CHASSIS
54

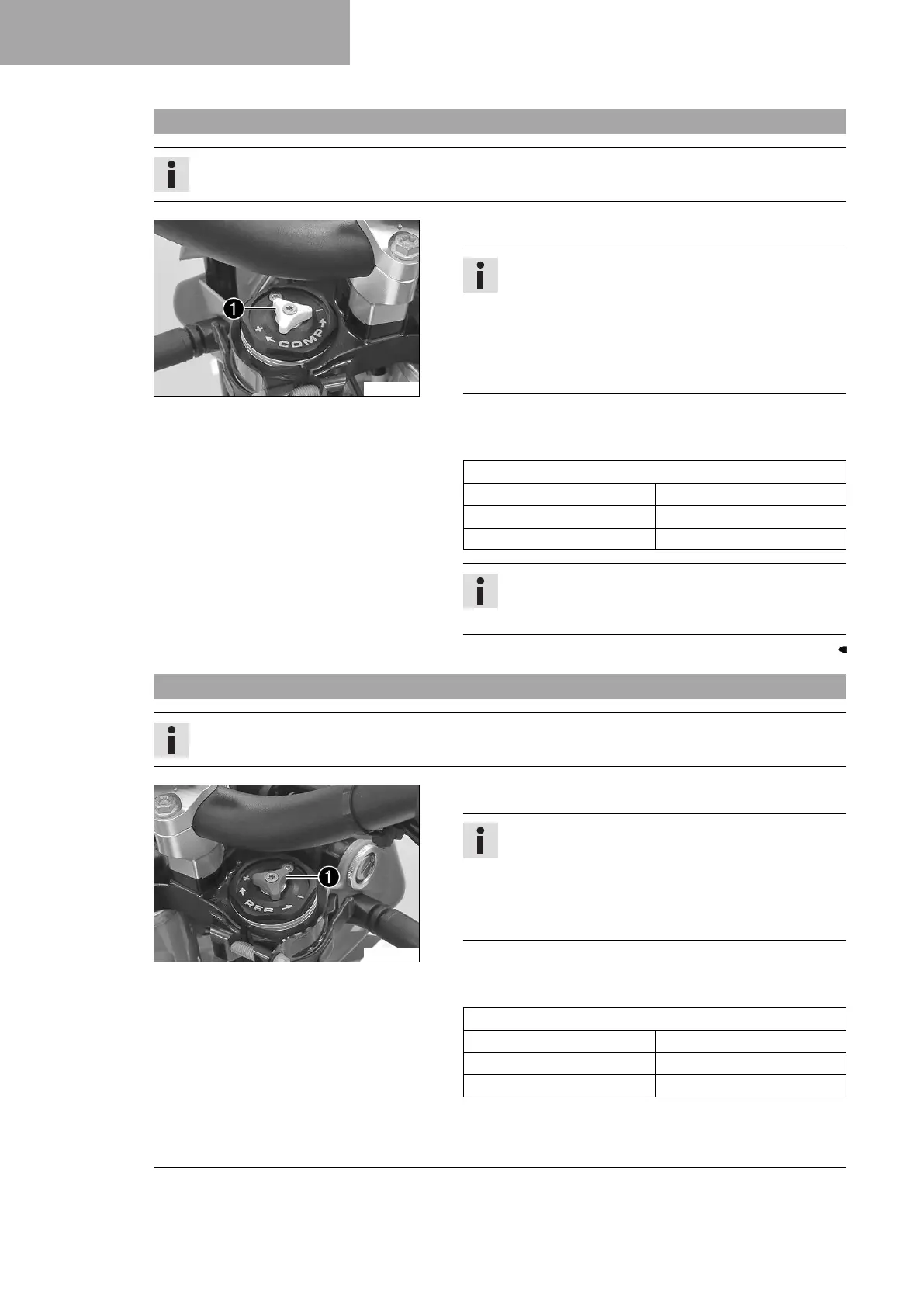

12.12 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
F01196-10
–
Turn white adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the
left fork leg.
The compression damping is located in left fork
leg COMP (white adjusting screw). The rebound
damping is located in right fork leg REB (red adjusting
screw).
–
Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counterclock-
wise to reduce damping.
12.13 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
F01197-10
–
Turn red adjusting screw
1
clockwise as far as it will go.
Info
Adjusting screw
1
is located at the upper end of the
right fork leg.
The rebound damping is located in right fork leg REB
(red adjusting screw). The compression damping is
located in left fork leg COMP (white adjusting screw).
– Turn counterclockwise by the number of clicks corresponding
to the fork type.
Guideline
Rebound damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
