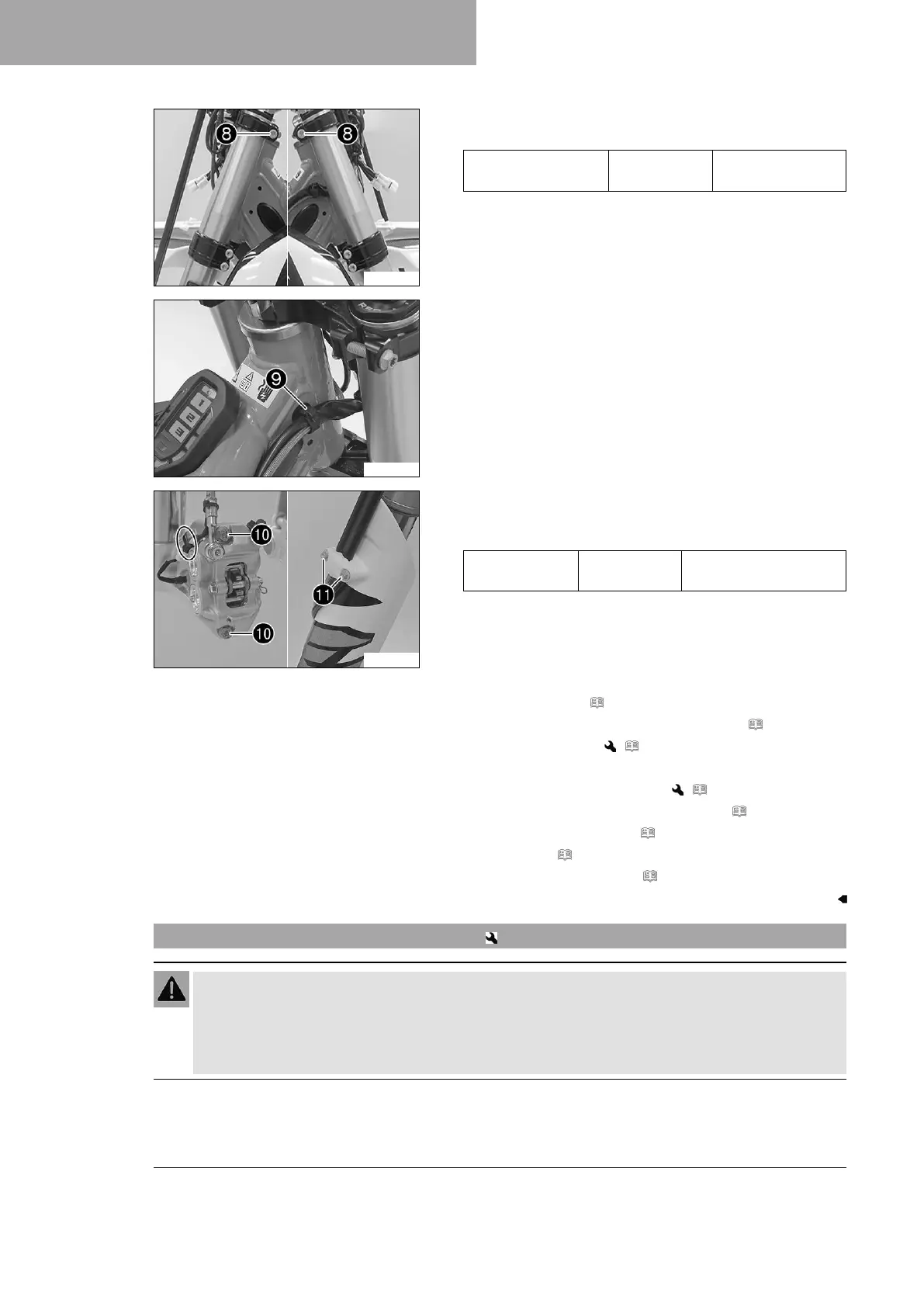

13 SERVICE WORK ON THE CHASSIS
64
A00184-11
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 22 Nm (16.2 lbf ft)
F01689-10
–
Attach the brake line and wiring harness. Close holder
9
.
F01669-11
–
Position the brake caliper. Mount and tighten screws
bk
with
the spacers.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
bl
.
– Connect plug-in connector and mount the cable tie(s).
Finishing work
– Install front fender. ( p. 67)
– Install the headlight mask with the headlight. ( p. 102)
– Install the front wheel. ( p. 91)
– Check that the cable and brake lines are routed correctly.
– Check steering head bearing play. ( p. 64)
– Remove the motorcycle from the lift stand. ( p. 57)
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
– Check the headlight setting. ( p. 105)
13.11 Checking steering head bearing play
Warning
Danger of accidents Incorrect steering head bearing play impairs the handling characteristic and dam-
ages components.
– Correct incorrect steering head bearing play immediately. (Your authorized KTM workshop will be glad
to help.)
