Main work

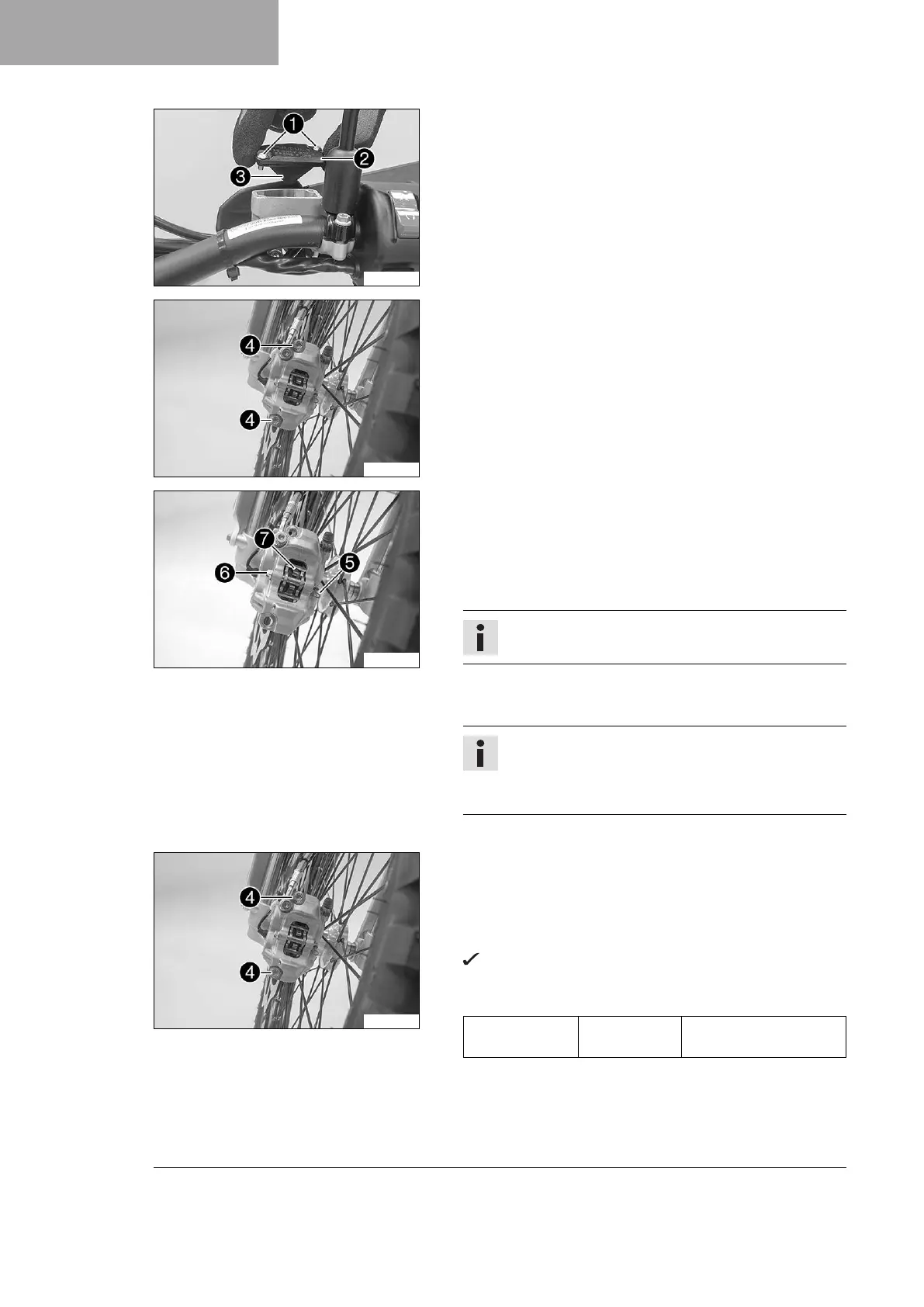

– Move the brake fluid reservoir attached to the right of the han-
dlebar to a horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
A00130-10
–
Remove screws
4
with spacers.
– Remove the cable tie.
– Press back the brake linings by slightly tilting the brake caliper
laterally on the brake disc.
– Carefully pull the brake caliper backward from the brake disc.
– Press the brake piston back to its basic position and make sure
that no brake fluid overflows from the brake fluid reservoir,
extracting brake fluid if necessary.
A00131-10
–
Remove cotter pin
5
.
–
Remove pin
6
.
–
Take off retainer spring
7
and remove the brake linings.
– Clean the brake caliper.
– Position new brake linings.
Info
Always change the brake linings in pairs.
–
Position retaining spring
7
.
–
Mount pin
6
.
Info
To make it easier to mount the pin, push the retainer
spring down.
Make sure the retaining spring is seated correctly.
–
Mount cotter pins
5
.
A00130-10
–
Position the brake caliper. Mount screws
4
with the spacers
but do not tighten yet.
– Operate the front brake lever several times until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Secure the front brake lever in the activated position.
The brake caliper straightens.
–
Tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Remove the means of securing the front brake lever.
– Mount the cable tie.
