BRAKE SYSTEM 14
87
Warning
Danger of accidents Unsuitable brake fluid damages the brake system.
DOT 5 brake fluid attacks seals and brake lines. DOT 5 brake fluid is silicone-based and purple in color.
– Do not use DOT 5 brake fluid.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, cleaning agents, brake fluid etc. properly and in compliance with the applica-
ble regulations.
Info
Avoid contact between brake fluid and painted parts. Brake fluid attacks paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Deactivate the vehicle. ( p. 43)
– Fold the seat up. ( p. 69)
– Remove the KTM PowerPack. ( p. 107)
– Mount the protection cap. ( p. 71)
– Check the rear brake linings. ( p. 88)

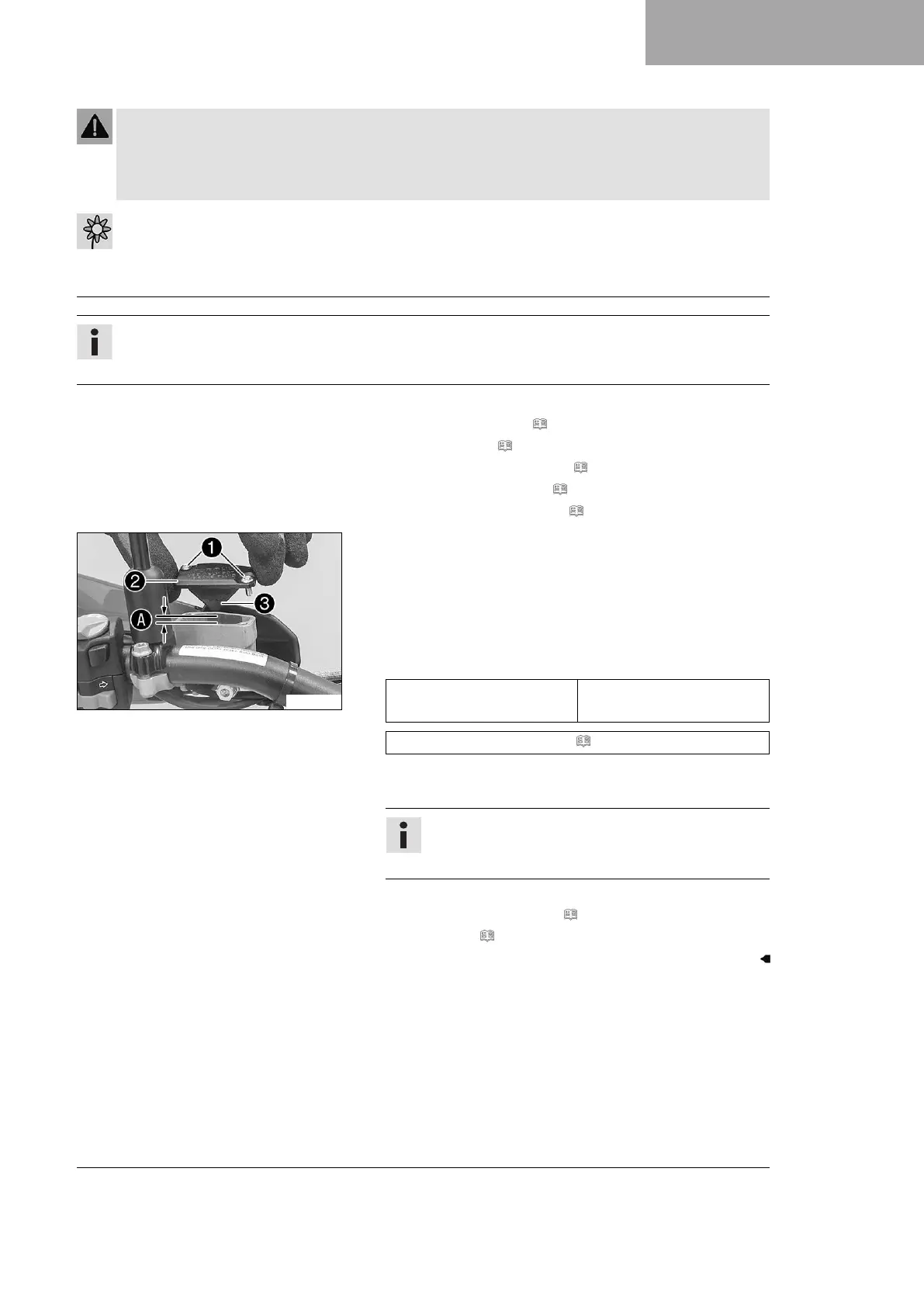

A00201-10
Main work
– Move the brake fluid reservoir attached to the left of the han-
dlebar to a horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
–
Add brake fluid to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 137)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
Finishing work
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
