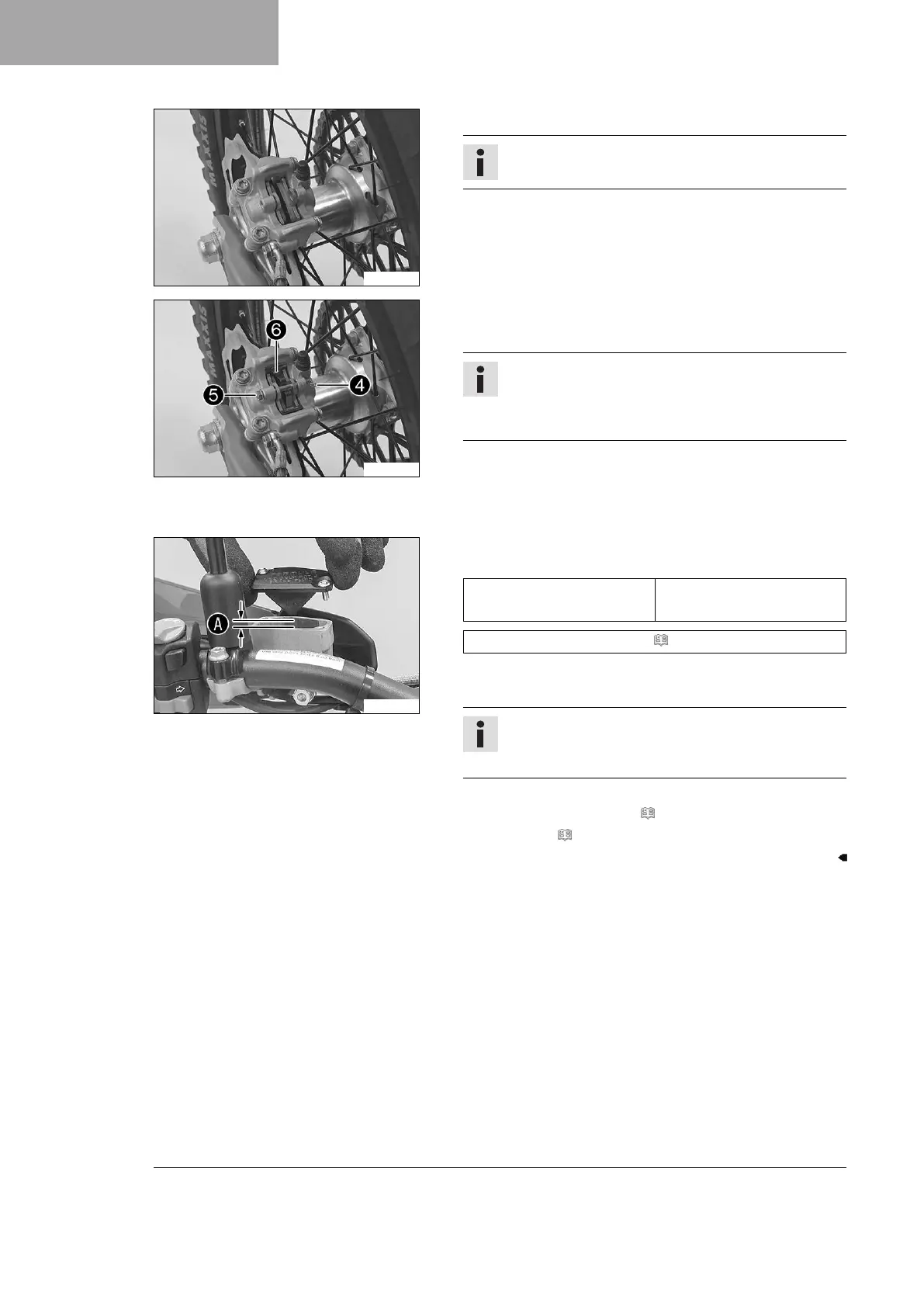

14 BRAKE SYSTEM
90
F01678-01
– Position new brake linings.
Info
Always change the brake linings in pairs.
F01677-10
–
Position retaining spring
6
.
–
Mount pin
5
.
Info
To make it easier to mount the pin, push the retainer
spring down.
Make sure the retaining spring is seated correctly.
–
Mount cotter pins
4
.
– Operate the rear brake lever several times until the brake lin-
ings are in contact with the brake disc and there is a pressure
point.
A00201-12
–
Fill up the brake fluid to the level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 137)
– Position the cover with the membrane. Mount and tighten the
screws.
Info
Clean up overflowed or spilled brake fluid immediately
with water.
Finishing work
– Install the KTM PowerPack. ( p. 108)
– Lock the seat. ( p. 69)
