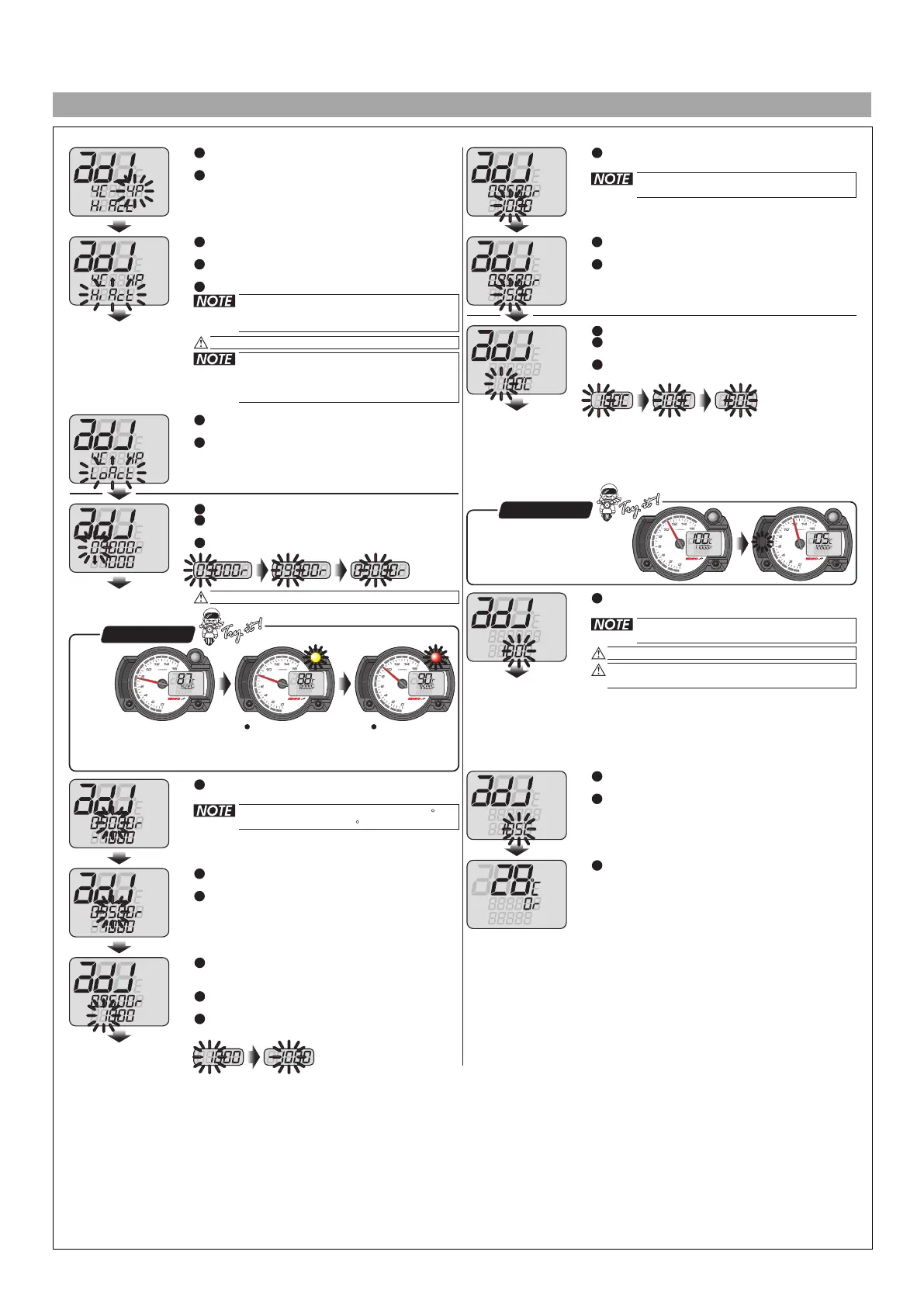

KTM RC 250 R User Manual

6 CONTROLS 16
6.12 Combination instrument 2/2
If the tachometer can't detect the
signal (No RPM is displayed on the
screen), you could choose another
setting, and check it again.
The input signal setting range is
between hight (The positive signal) &
low (The negative signal)
Setting range: 5,000~16,000 RPM
Setting unit:100 RPM
Press the Select button to enter the signal
input setting screen.
EX. Now the piston setting is changed from
1 P (Piston) to 4 P (Pistons).
Press the Select button to enter the shift light
setting screen.
EX. Now the input signal is changed from hight
to low.
Select
EX. The shift light set on 9,500 RPM.
Press the button to move to the digit
you want to set.
EX. Now the RPM shift light setting is 9,000 RPM.
EX. The pre-shift RPM set on 8,000 RPM.
(It means that the pr e-shift light will light on
1,500 RPM before the shift light.)
Press the Select button to move to the digit
you want to set.
EX. Now the RPM pr e-shift light setting is -1,000
RPM.
Select
o
0.0 C
o
EX. The over heat warning set on 105 C.
Press the button to move to the digit
you want to set.
EX. Now the over heat warning setting is
10 .
Press the Select button to back the main
screen.
o
EX. Now the setting is changed from 100 C
o
to 105 C.
Main screen.
Press the Select button to enter the over heat
warning light setting screen.
EX. Now the pre-shift light setting is changed
from 1,000 RPM to 1,500 RPM.
Press the Adjust button to change the setting
digit.
Press the Adjust button to change the setting
digit.
Press the Adjust button to change the setting
digit.
Press the Select button to enter the pre-shift
light setting screen.
EX. Now the shift light setting is changed from
9,000 RPM to 9,500 RPM.
EX. To change the setting to L o.
(The negative impulse)
Press the Adjust button to choose the input
signal you want to set.
EX. Now the setting is Hi (The positive impulse)
Setting range: -500~-5,000 RPM.
Setting unit: 100 RPM.
Setting range: 60~15
etting unit:
oo
0C (
140~302
oo
S 1 C (1 F).
The setting unit will change together with the
temperature unit setting.
P.S.
P.S.
The temperature light
will light on when the
temperature reached your
setting.
P.S.
P.S.
Shift light (9,500 RPM)Pre-shift light (-1,500 RPM)
If you set the RPM shift light at 9,500 RPM, the yellow light (Pre-shift
light) will light on at 8,000 RPM.
And the red light (Shift light) will light on when it reaches 9,500 RPM.
Now the input signal setting is ashing!
The digit you could set is ashing now .
The digit you could set is ashing now .
