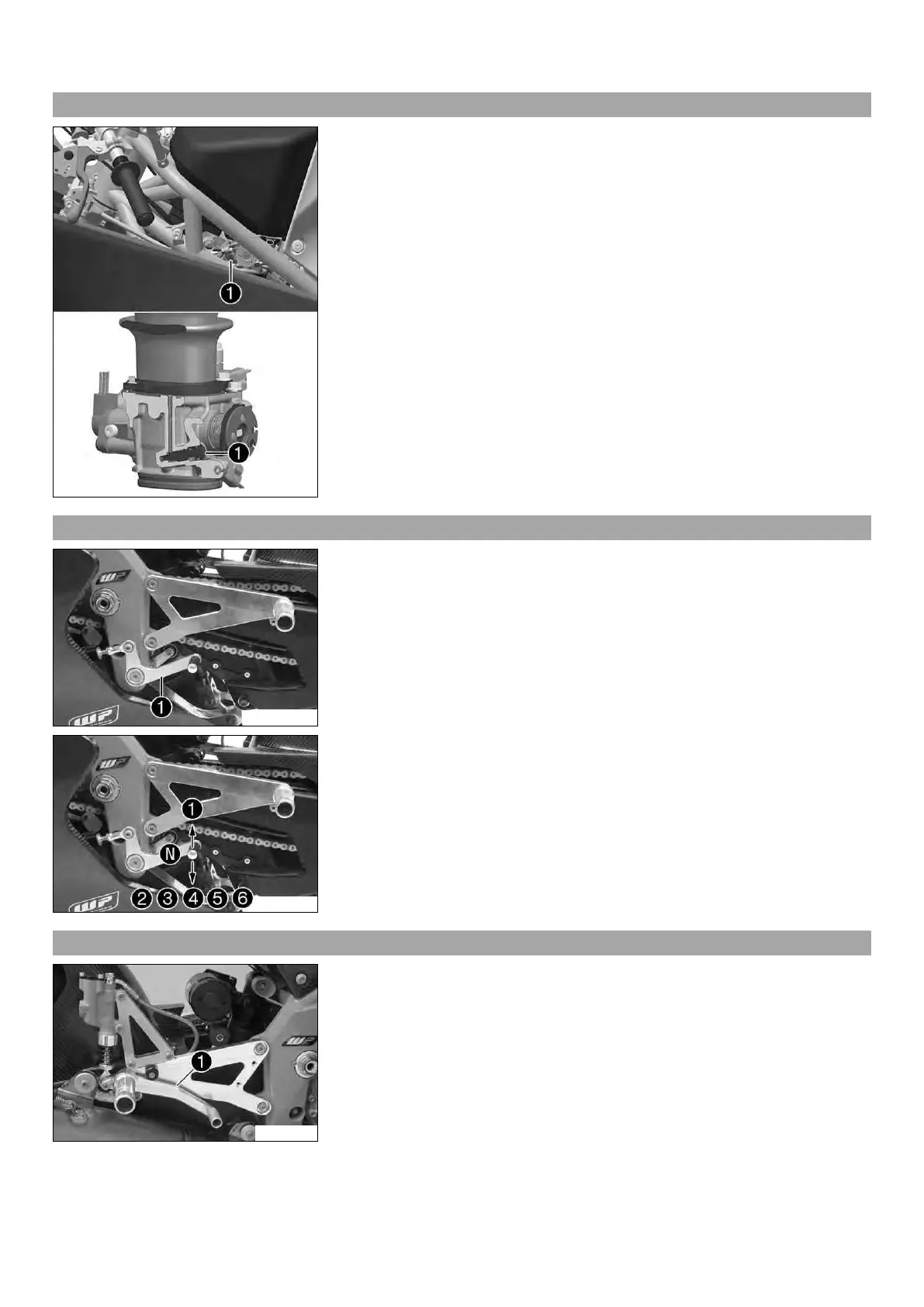

6 CONTROLS 18
6.15 Idle speed adjusting screw
L00577-10
The idle speed adjusting screw
1
is located on the throttle valve body on the left
side.
Turning the screw clockwise decreases the idle speed.
Turning the screw counterclockwise increases the idle speed.
6.16 Shift lever
L00467-10
The shift lever
1
is mounted on the left of the engine.
L00467-11
The gear positions can be seen in the figure.
The neutral or idle position
N
is between the first and second gear.
6.17 Foot brake lever
L00468-10
The foot brake lever
1
is in front of the right footrest.
The foot brake lever operates the rear brake.
