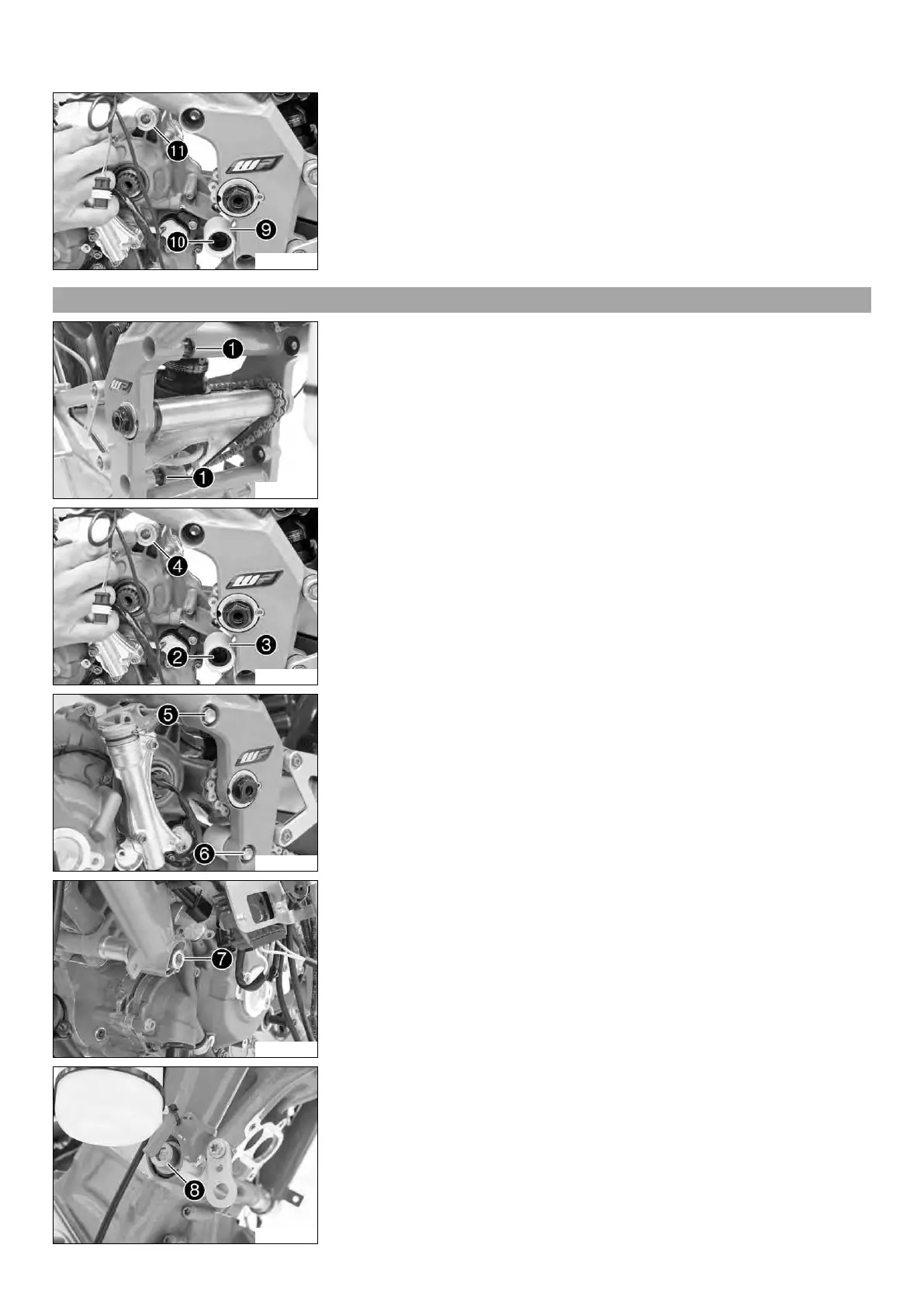

18 SERVICE WORK ON THE ENGINE 70
L00660-11
Take off chain link
9
and the lower left engine spacer
bk
.
Take off the upper left engine spacer
bl
.
Lower the engine with the scissors stand.
18.5 Installing the engine x
L00659-10
Main work
Position the adjustable engine spacers
1
to create sufficient space for the engine.
L00660-10
Raise the engine with the scissors stand.
Position the lower left engine spacer
2
and chain link
3
.
Position the upper left engine spacer
4
.
L00661-10
Mount the upper engine bracket screw
5
and lower engine bracket screw
6
.
L00662-10
Mount the front engine bracket screw
7
with the washer but do not tighten yet.
L00663-10
Mount the front engine bracket screw
8
with the washer but do not tighten yet.
