18 SERVICE WORK ON THE ENGINE 71

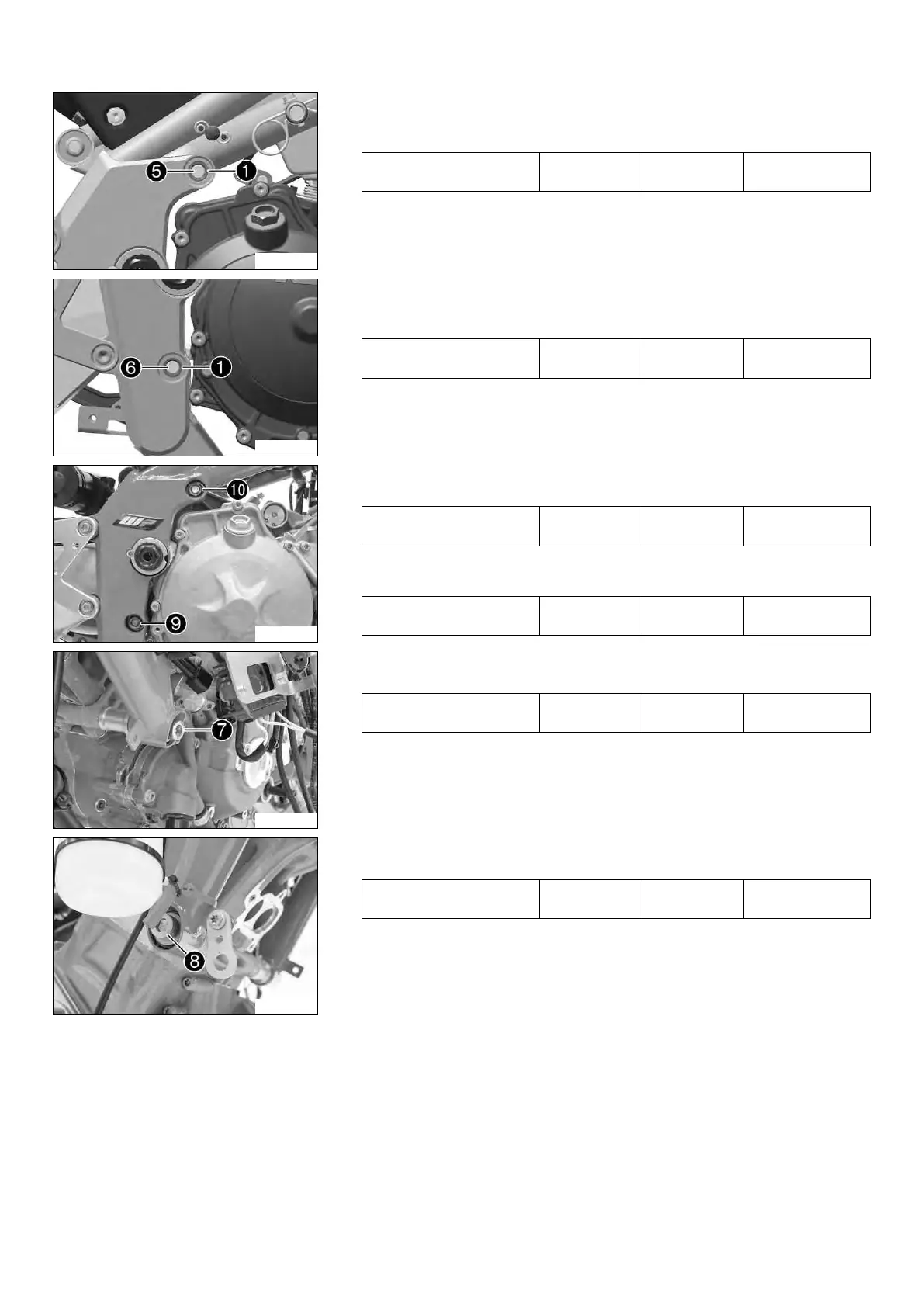

L00665-10
–
Pull out the upper engine bracket screw
5
slightly and tighten the upper
adjustable engine spacer
1
.
Guideline
Screw, engine spacer M16x1 10 Nm
(7.4 lbf ft)
Thread greased
–
Mount the upper engine bracket screw
5
.
L00666-10
–
Pull out the lower engine bracket screw
6
slightly and tighten the lower
adjustable engine spacer
1
.
Guideline
Screw, engine spacer M16x1 10 Nm
(7.4 lbf ft)
Thread greased
–
Mount the lower engine bracket screw
6
.
L00664-13
–
Mount and tighten nut
9
with the washer.
Guideline
Screw, rear engine bearer M10 35 Nm
(25.8 lbf ft)
Thread greased
–
Mount and tighten nut
bk
with the washer.
Guideline
Screw, rear engine bearer M10 35 Nm
(25.8 lbf ft)
Thread greased
L00662-10
–
Tighten the front engine bracket screw
7
.
Guideline
Screw, front engine bearer M10 35 Nm
(25.8 lbf ft)
Thread greased
L00663-10
–
Tighten the front engine bracket screw
8
.
Guideline
Screw, front engine bearer M10 35 Nm
(25.8 lbf ft)
Thread greased
Finishing work
– Attach the clutch cable to the eyelet of the clutch release lever and mount the
thrust bearing of the clutch cable.
– Position the throttle valve body and mount the hose clip of the throttle valve body.
– Mount the engine breather hose.
– Mount the front air intake.
– Connect the ground wire and all plug-in connections.
– Mount the shift linkage.
– Mount the sprocket.
