4. - Safety
FC313RF
19
KN021BGB K
Mower conditioner
Before engaging the PTO drive, make sure that
there are no people or animals near the machine.
Never engage the PTO drive when the tractor
engine is stopped.

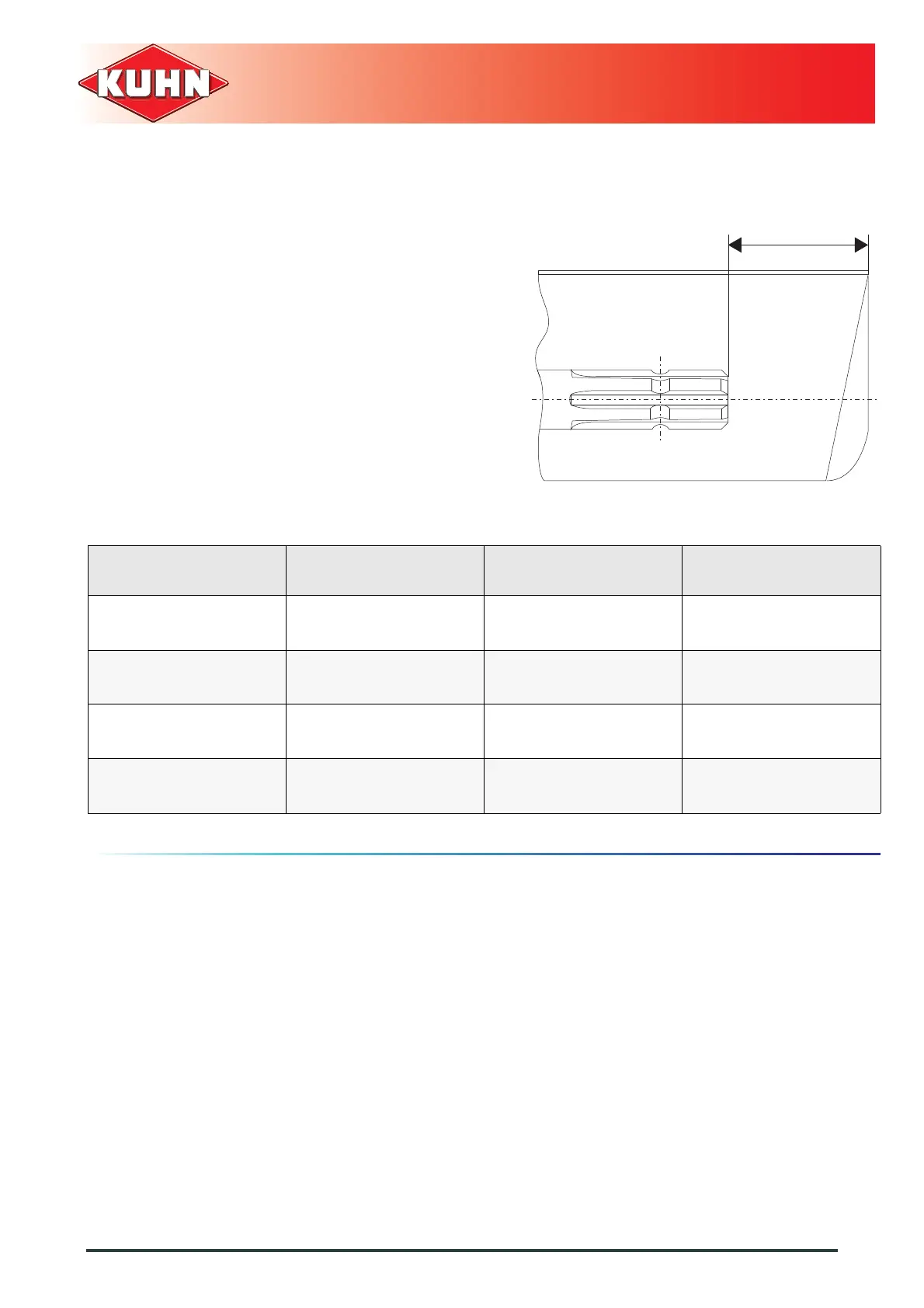

Do not install any adapter device that results in a
portion of the tractor PTO stub, the rotating PTO
shaft, or the adapter to be unguarded. The tractor
master shield shall overlap the end of the splined
shaft and the added adaptor device as outlined in
the table.
When uncoupling the machine, rest the PTO shaft
on the support specially provided, and replace
protective shield on the PTO stub of the tractor.
Read and follow the instructions in the operator's
manual provided with the PTO shaft.
A
PTO type Diameter X splines A ±5 mm
(0.20’’)
1
35 mm
(1.378’’)
6
85 mm
(3.35’’)
2
36 mm
(1.42’’)
8
85 mm
(3.35’’)
3
35 mm
(1.378’’)
21
85 mm
(3.35’’)
4
45 mm
(1.772’’)
20
100 mm
(4.00’’)
