6. - Putting into service
FC313RF
33
KN021BGB K
Mower conditioner
6. Putting into service

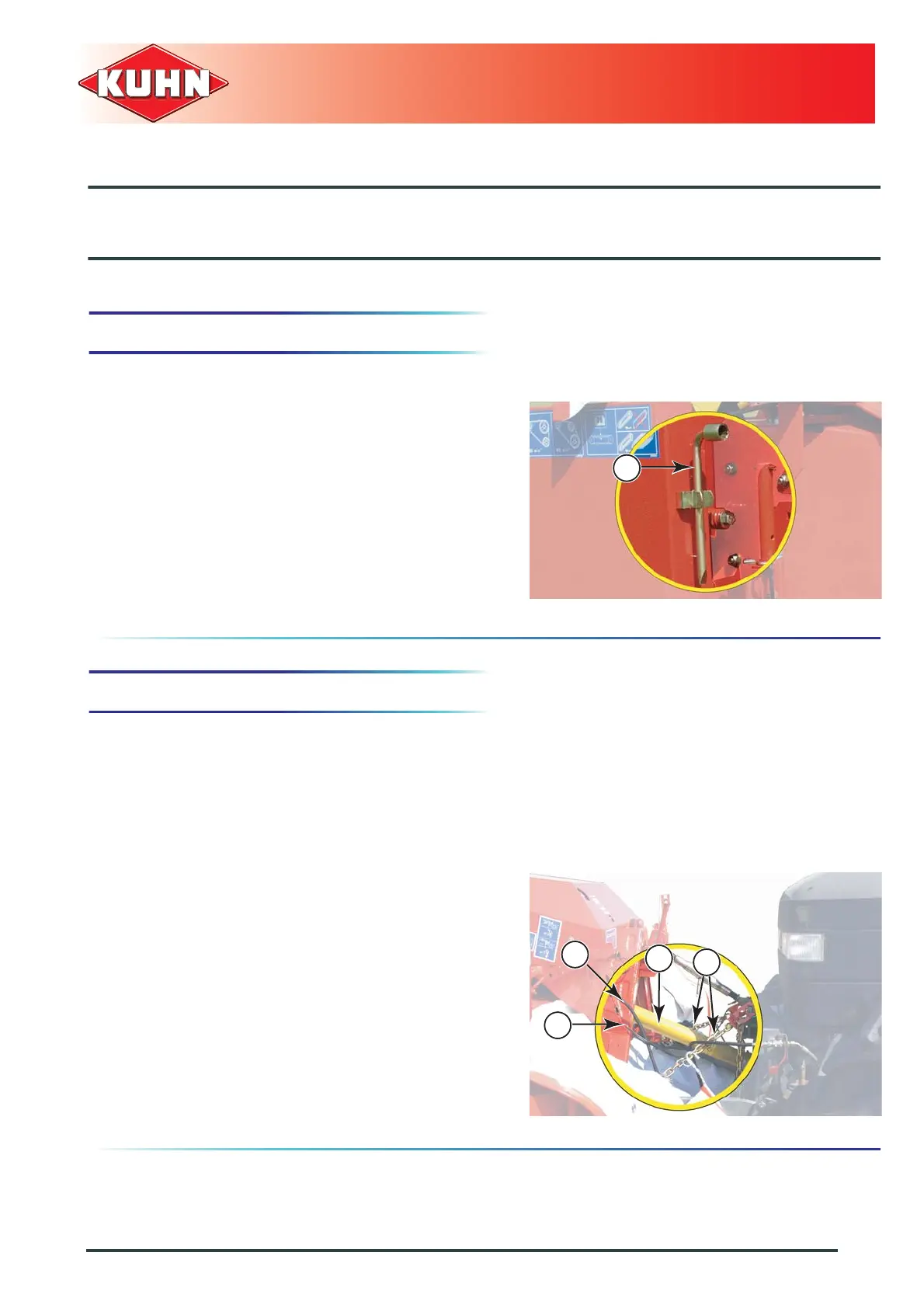

6.1 Description of control elements
6.2 Coupling and uncoupling
The machine adapts to tractors equipped with a
front mounted 3-point lift linkage fitted with a quick
release A frame coupler category 2 (ISO 11001).
6.2.1 Description of coupling elements
The machine is supplied with an 18 mm box wrench
(1) to carry out certain adjustment and maintenance
tasks.
1
• A PTO shaft 1 3/8’’ - 6 splines (1).
• 2 check chains (2).
• One hydraulic hose which controls the machine
transport/work position setting (3).
• An electric 7-pin plug for the signalling
equipment (4).
3
4
1
2
