Mower conditioner
10.4.2 Basic adjustments
 Transport stops

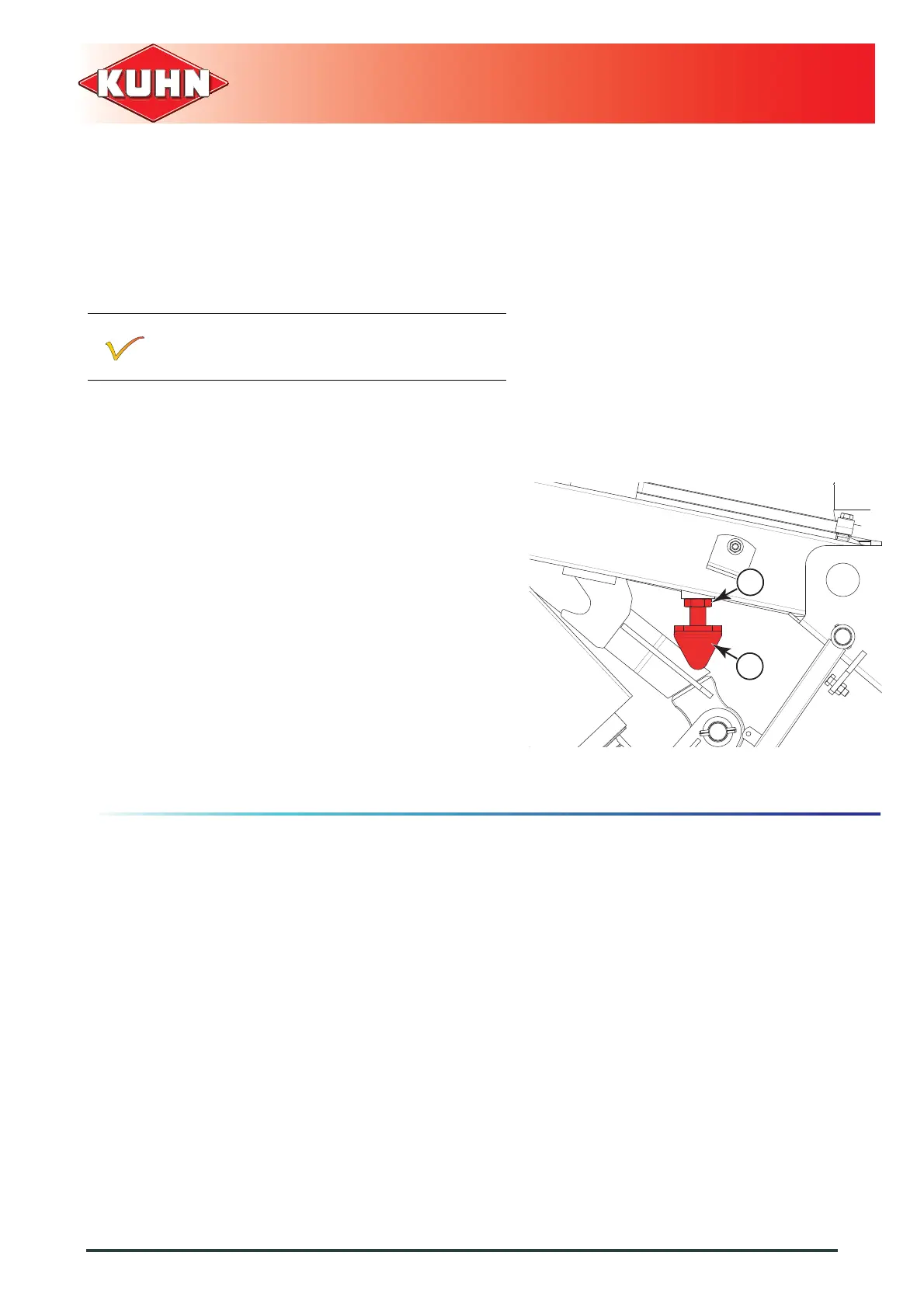

Transport stops (1) limit the machine's oscillation
during transport.
Adjustment:
The transport stops are factory set.
Transport stop rubbers must flaten themselves
by 10 mm (0.4’’) in transport position.
From the working position:
- Loosen counter-nuts (2).
- Fully tighten transport stops (1).
- Place the machine in transport position.
- Lift transport lock lever in transport position.
- Shift the mowing unit lift cylinder directional control
valve in float position.
- Bring stops (1) in contact with carrying frame.
- Place the machine in working position.
- Give transport stops (1) 5 preload turns.
- Tighten counter nuts (2) after adjustment.
Replacement:
- Replace transport stops (1) when they are worn
and no longer act as a suspension device.
