KUHN FC3160 TCD - Page 17

4. - Safety
FC3160-3560-4060 TCD
17
KN284EGB_A
Mower conditioner

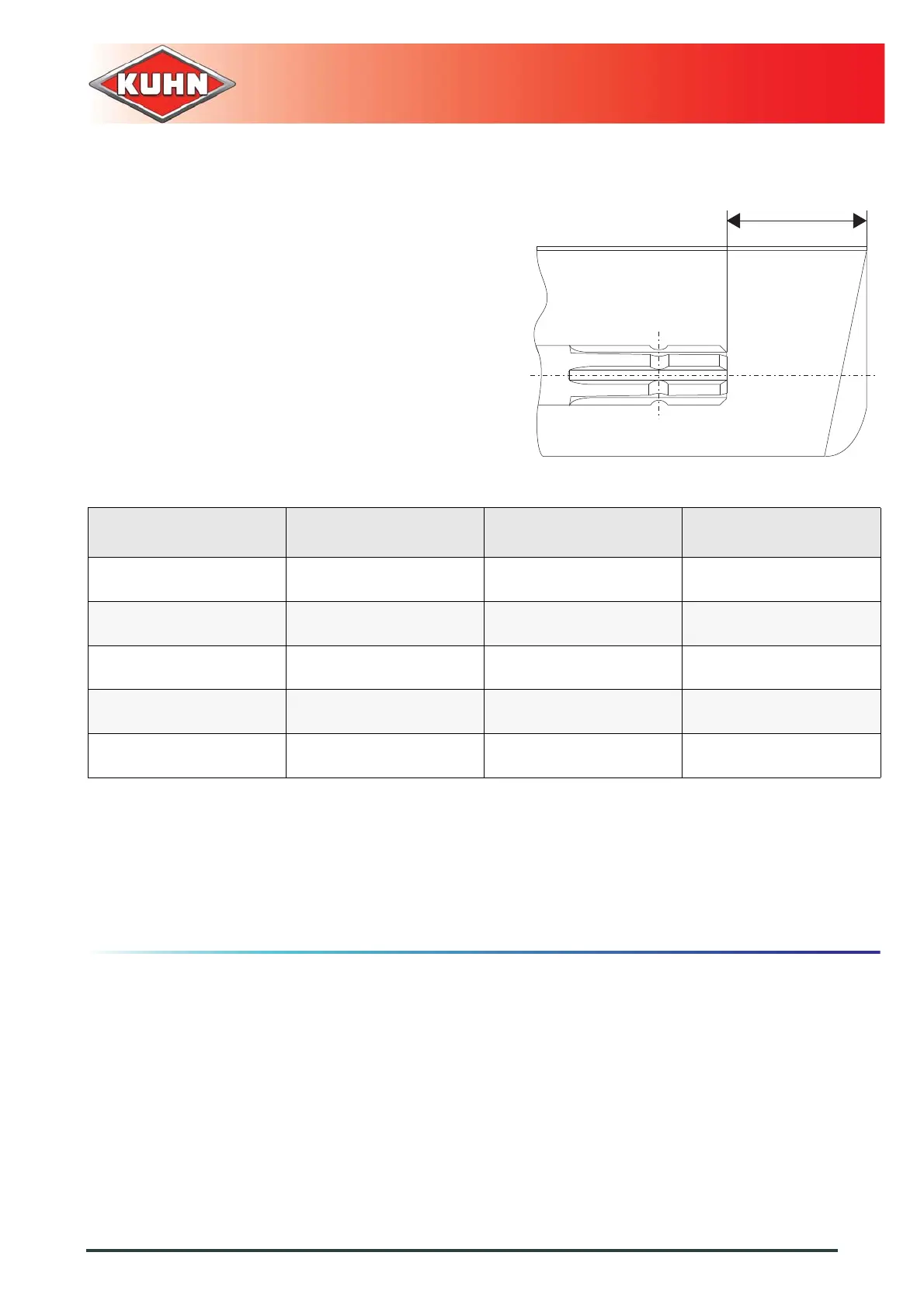

- Do not install any adapter device that results in a
portion of the tractor PTO stub, the rotating PTO
shaft, or the adapter to be unguarded. The tractor
master shield shall overlap the end of the splined
shaft and the added adaptor device as outlined in
the table.
PTO type Diameter X splines A ±5 mm (0.20’’)
1 35 mm (1.378’’) 6 85 mm (3.35’’)
2 36 mm (1.42’’) 8 85 mm (3.35’’)
3 35 mm (1.378’’) 21 85 mm (3.35’’)
4 45 mm (1.772’’) 20 100 mm (4.00’’)
5 44 mm (1.732’’) 6 100 mm (4.00’’)
- When uncoupling the machine, rest the PTO
shaft on the support specially provided, and
replace protective shield on the PTO stub of the
tractor.
- Read and follow the instructions in the operator's
manual provided with the PTO shaft.
A
