8. - Instructions for work
KN284EGB_A
Mower conditioner

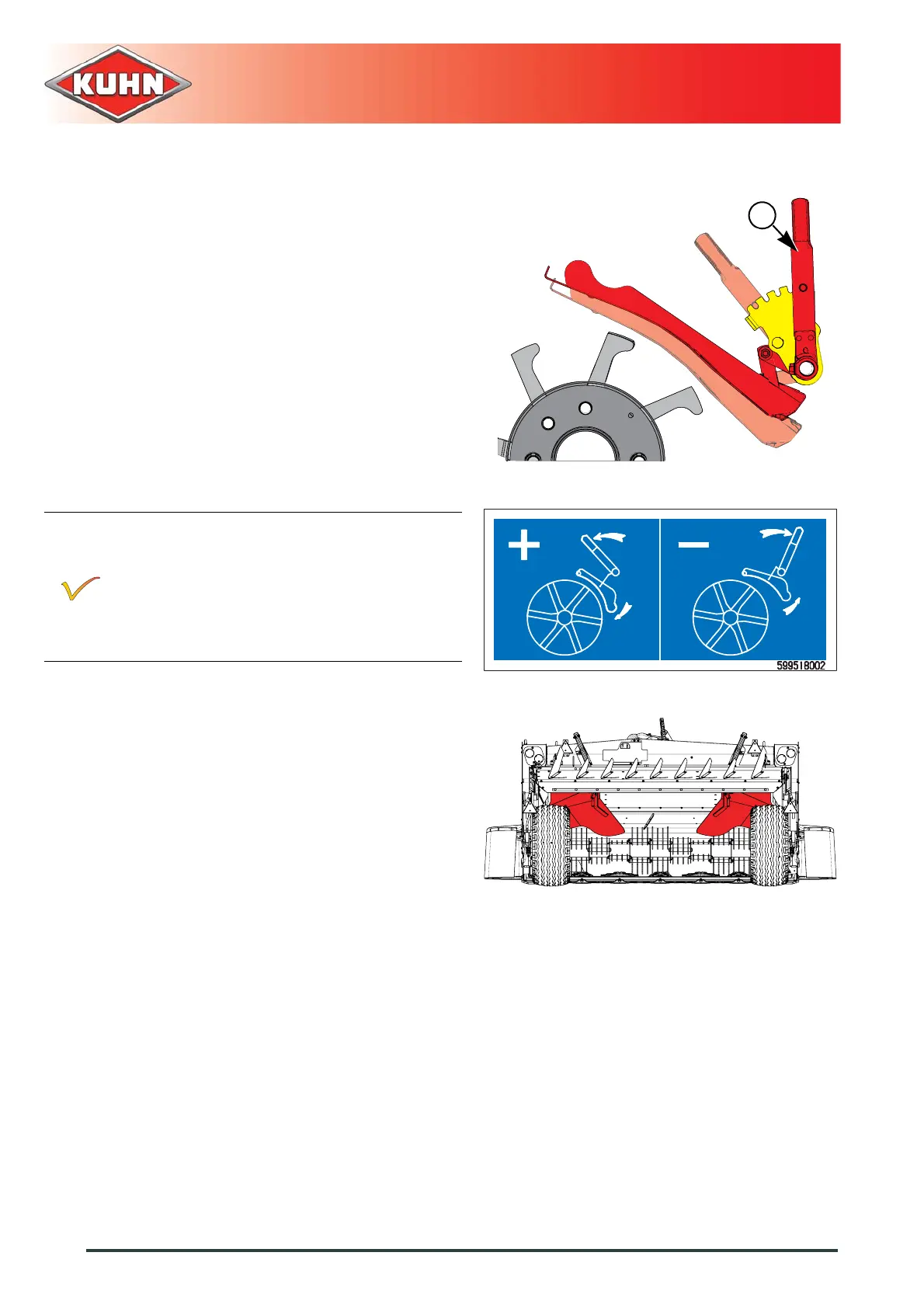

Adjustment lever (1)
The lever sets the conditioning hood in relation to
the rotor in 5 positions.
- To increase the conditioning intensity, reduce the
distance between the conditioning hood and the
conditioning rotor.
- To reduce the conditioning intensity (for mowing
leguminous for example), increase the distance
between the conditioning hood and the
conditioning rotor.
- Refer to the pictorial applied on the machine to
check the lever direction of operation with
regards to the required conditioning intensity.
If the leaves are damaged and the stalks are
crushed, reduce the conditioning intensity.
8.2.5 Swathing and wide spreading
Swathing system
The swathing system comprises:
• 2 swath shields.
