11.4 Maintenance
11.4.1 Checking the oil levels

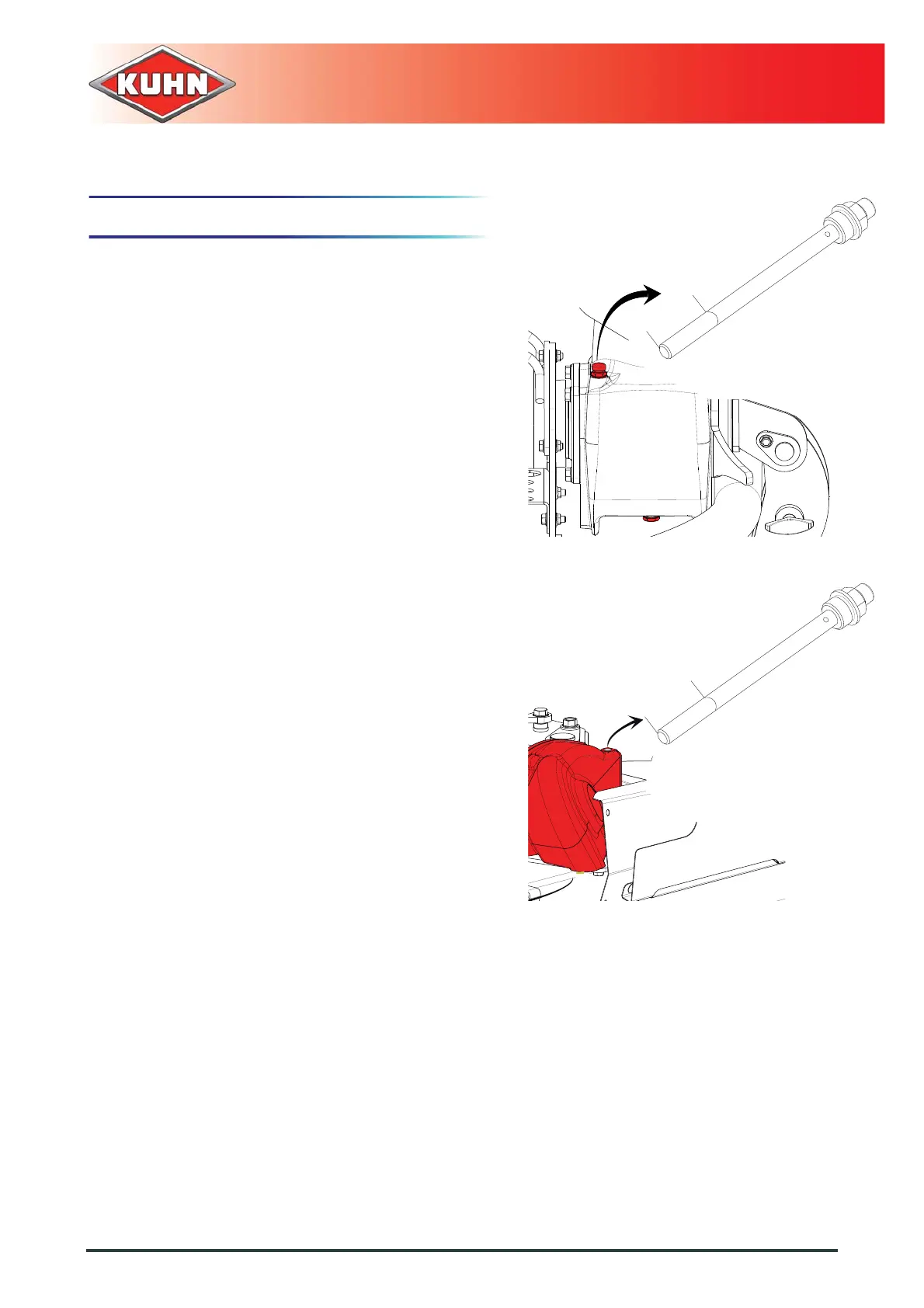

 Gyrodine gearbox
- Check Gyrodine gearbox level:
• The "MAX" level corresponds to the mark on the
dipstick plug (A).
• The "MIN" level corresponds to the end of the
dipstick plug (B).

Gearbox
- Check gearbox oil level:
• The "MAX" level corresponds to the mark on the
dipstick plug (A).
• The "MIN" level corresponds to the end of the
dipstick plug (B).
B
A
B
A
