6. - Putting into service
FC3160-3560-4060 TCD
43
KN284EGB_A
Mower conditioner

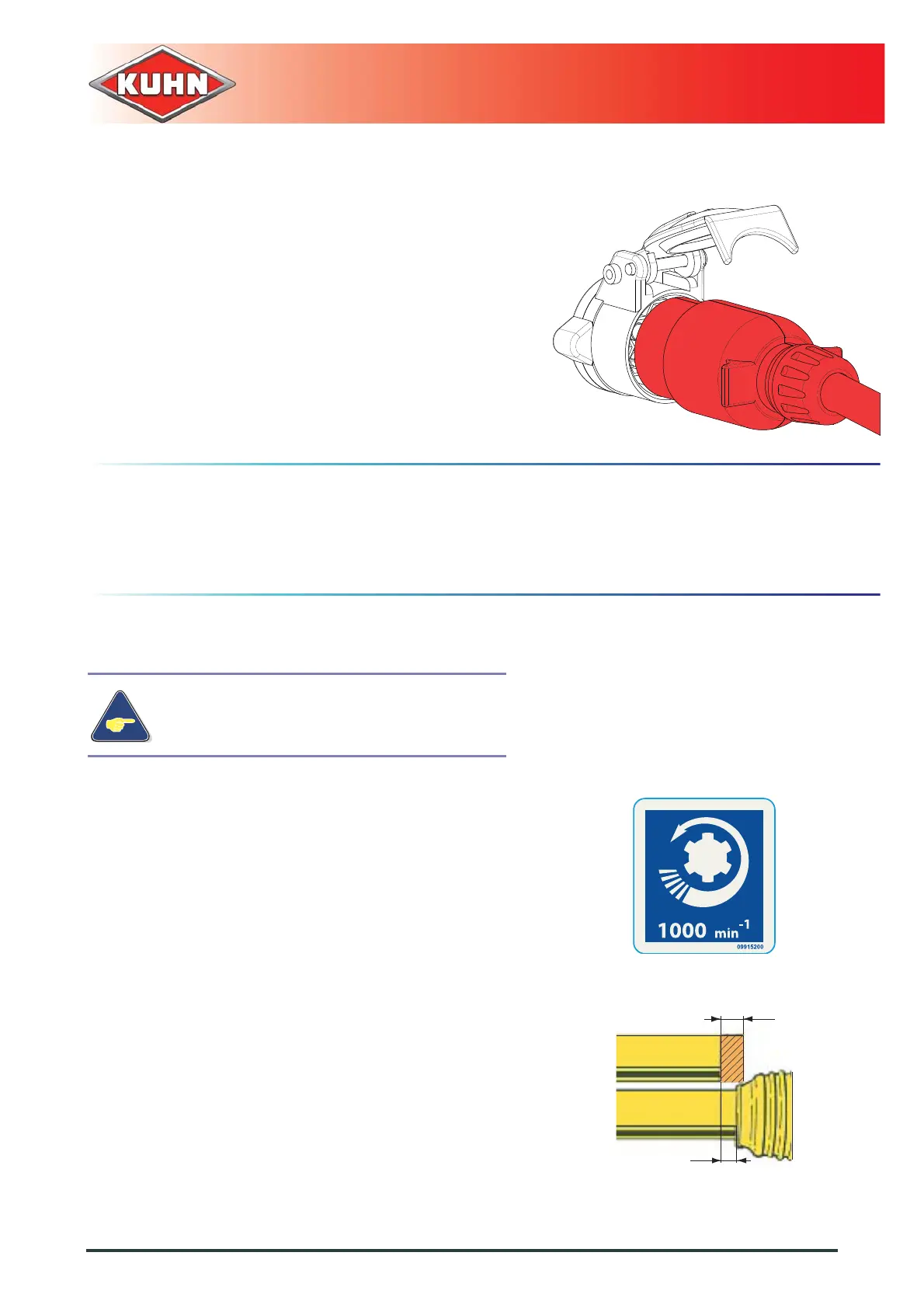

6.2.6 Electrical connections
- Connect machine 7-pin plug on the tractor 7-pin
socket.
6.2.7 Fit the check chains
- See section "Frame height adjustment" to
position the check chain.
6.2.8 Primary PTO shaft
- Make sure that the PTO shaft is correctly
adjusted, to avoid premature wear and tear.
The direction of rotation is shown on a decal.
- Separate the two half PTO shafts and connect
them to the machine's input shaft and to the
tractor PTO stub.
- Check the length of the PTO shaft:
• When the PTO shaft is in its maximum overlap
position (retracted), tubes should not butt
against the yokes. There must still be a
minimum safety travel (L) of 25 mm (1’’).
• When extended to the maximum, the tube
overlap must not be below 250 mm (10’’).
