8. - Instructions for work
FC3160-3560-4060 TCD
57
KN284EGB_A
Mower conditioner
8.2.2 Ground pressure
The ground pressure is adjusted independently
on each side of the mower unit.

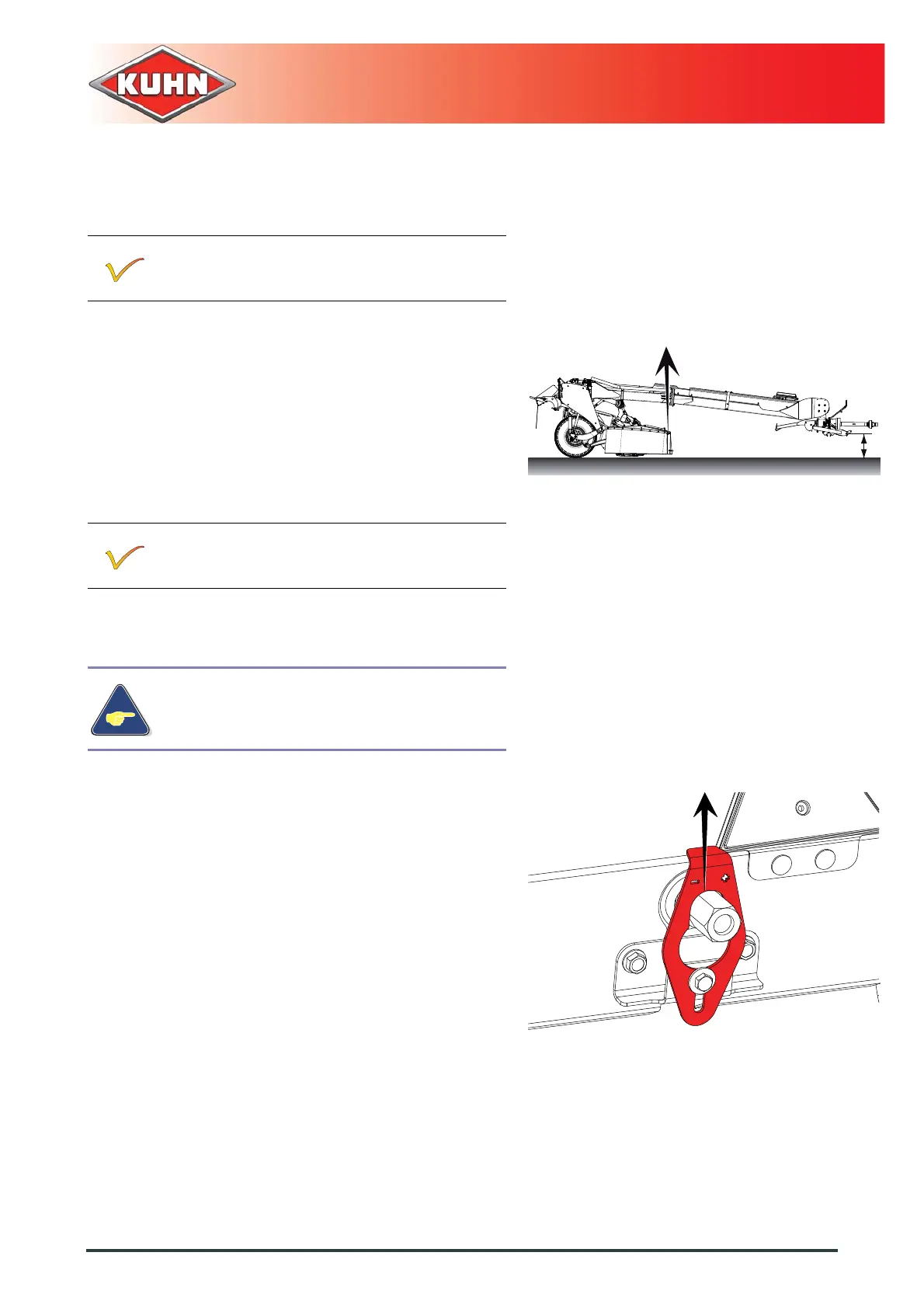

To check the ground pressure
- Check that the hitch pins are at the proper height
H = 650 mm (26’’).
- Raise the mowing unit:
• The force F must be of approximately 60 daN
(135 lbf) on each side.
The pressure must be adapted to the nature and
moisture degree of the ground.
To adjust the suspension
- Adjust both sides to the same setting.
- Move the locking plate upwardly to release the
rotation of the adjustment screw.
