8. - Instructions for work
KN284EGB_A
Mower conditioner

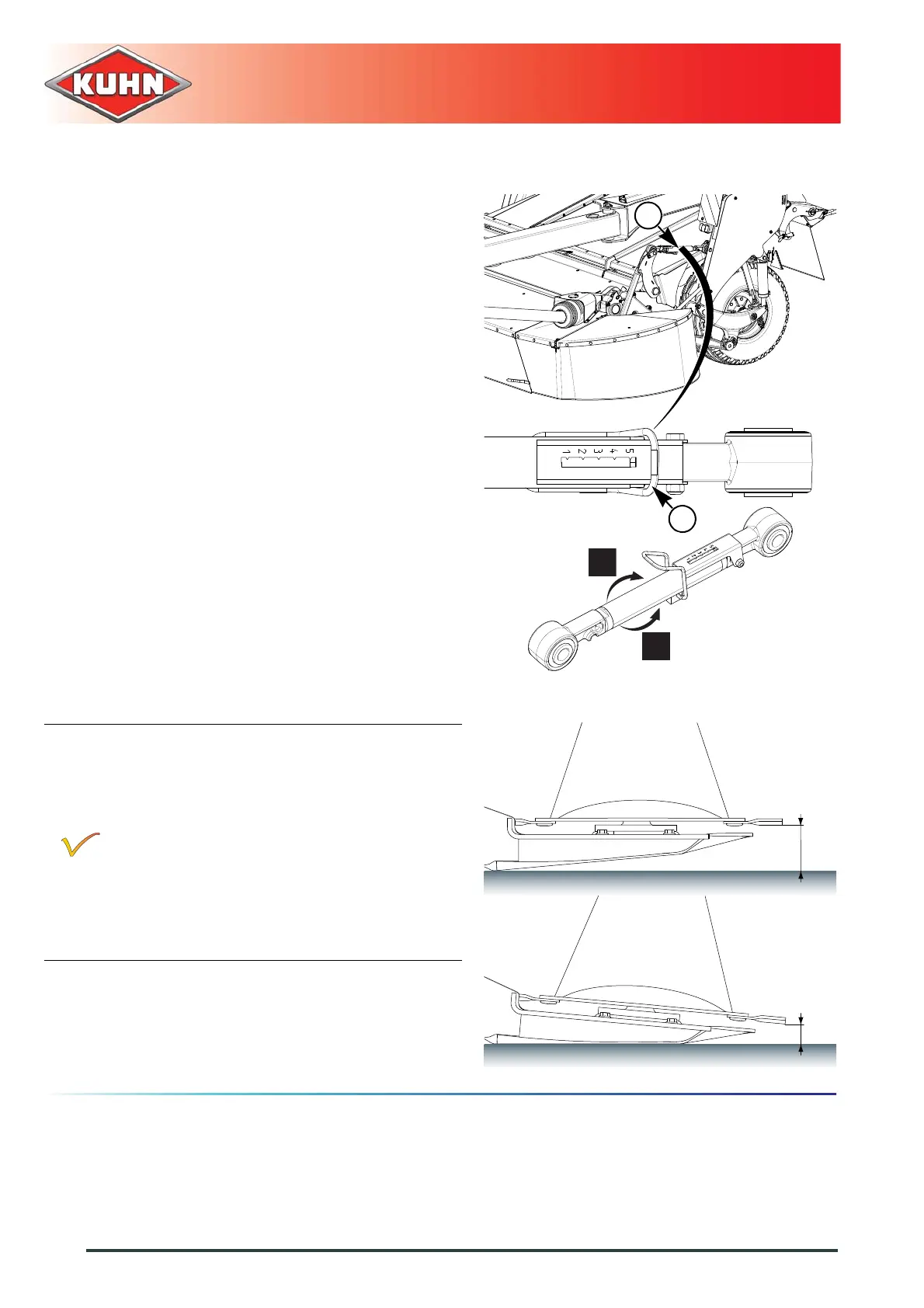

The adjustment is centralized by means of the pitch
angle rod (1).
The height can be adjusted between 25 and 85 mm
(1"/3.3") (Equipment excluded):
• Mark 1 = 25 mm (1’’).
• Mark 5 = 85 mm (3.3’’).
To adjust the cutting height:
- Lift lock (2).
- Turn clockwise to reduce cutting height (a).
- Turn counter-clockwise to increase the cutting
height (b).
- Lower lock (2).
The maximum cutting height L1 = 85 mm (3.3’’)
is obtained when the disks are parallel to the
ground.
The minimum height must not be below L2 =
25 mm (1’’).
Too low a cutting height can lead to:
• Excessive disc and knife wear.
• Crop being contaminated by soil.
• Delay in regrowth.
