 Spring plate replacement
Inner disc:
Replacing spring plates on outer discs must
be carried out only by an authorised Kuhn
dealer.
Intermediate discs:
- Remove the disc:
- See section: ’’Disc replacement’’.
- Remove spring plate (1).
- Fit a new spring plate.
- Refit the disc.
- See section: ’’Disc replacement’’.

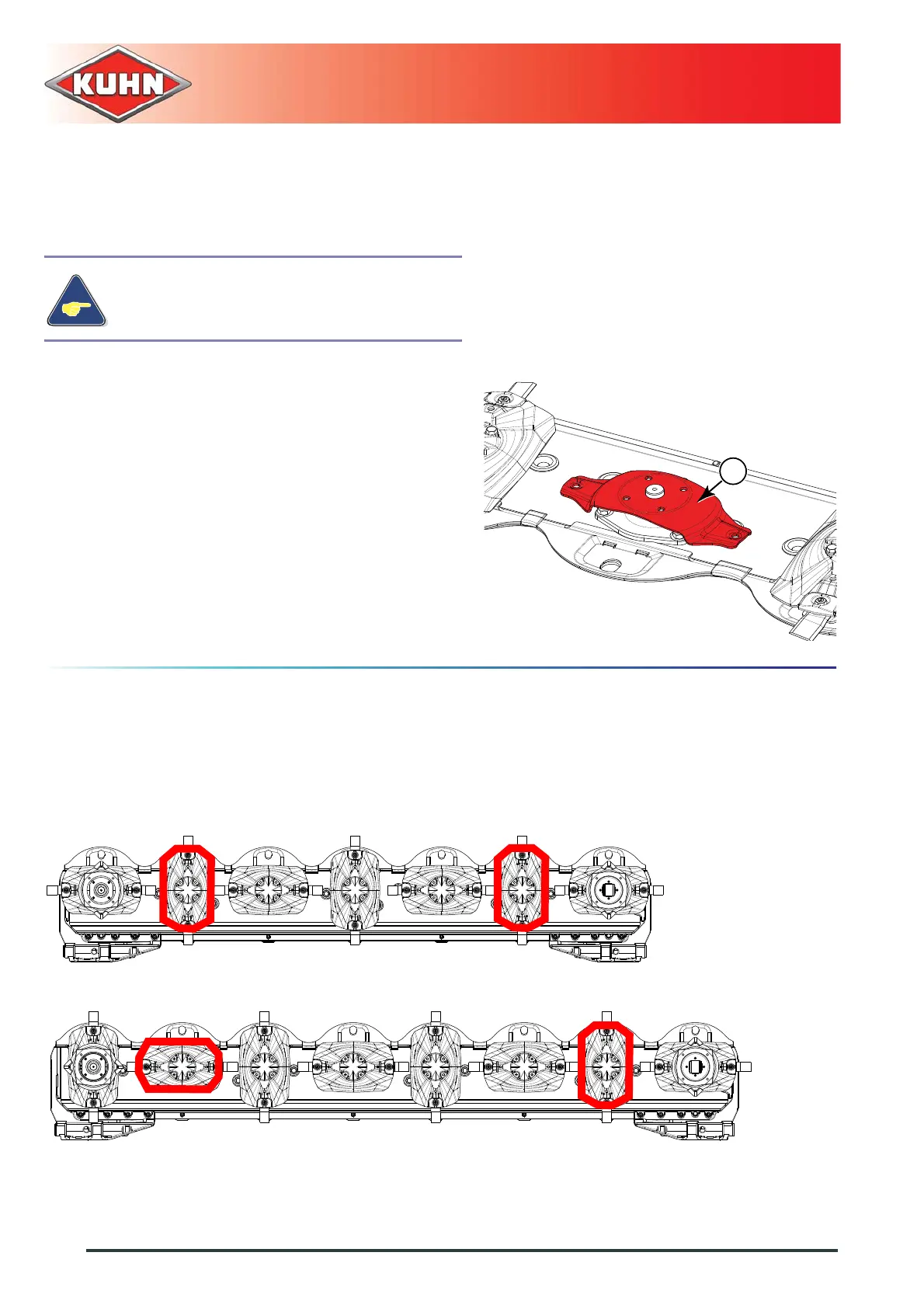

11.4.3 Fitting of the lifters
2 pairs of lifters are supplied with the machine.
In case of side ejections, lifters can be fitted on the
outer disks (See drawing below):
FC3160TCD
FC3560TCD
1
