6. - Putting into service
FC3160-3560-4060 TCD
47
KN284EGB_A
Mower conditioner

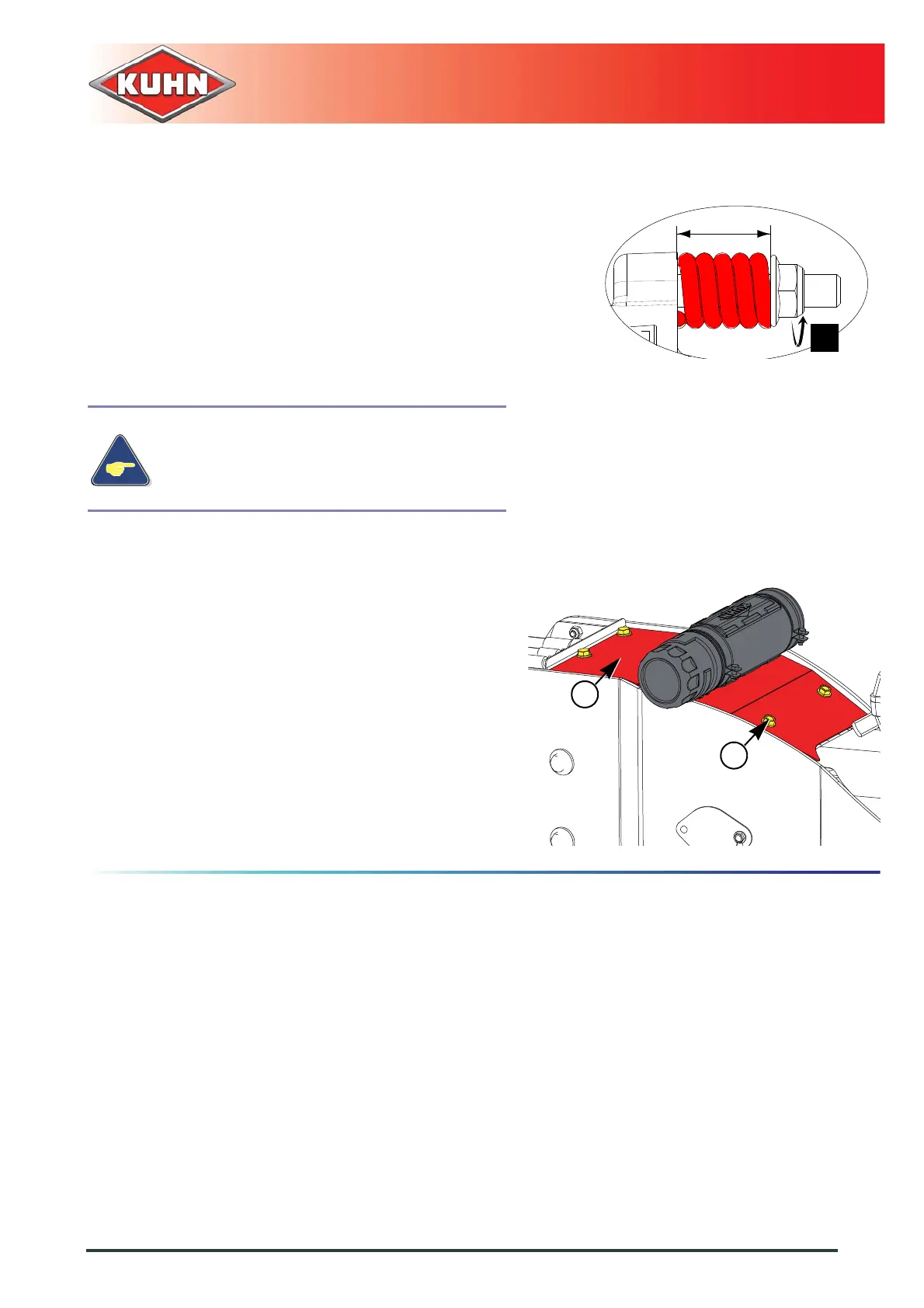

- FC3160/3560: Tighten nuts to the dimension (L)
of 34 mm (1.34’’).
- FC4060: Tighten nuts to the dimension (L) of
33 mm (1.3’’).
- Do not fully tighten springs to prevent
damage on drive elements. The springs
must never be coil bound.
- Loosen at least by 1/2 turn.
The friction slip clutch is ready to function.
- Reinstall guard plate (2).
- Reinstall the 4 screws (1).
c
L
1
2
