FC3160-3560-4060 TCD
72
10. - Optional equipment
KN284EGB_A
Mower conditioner

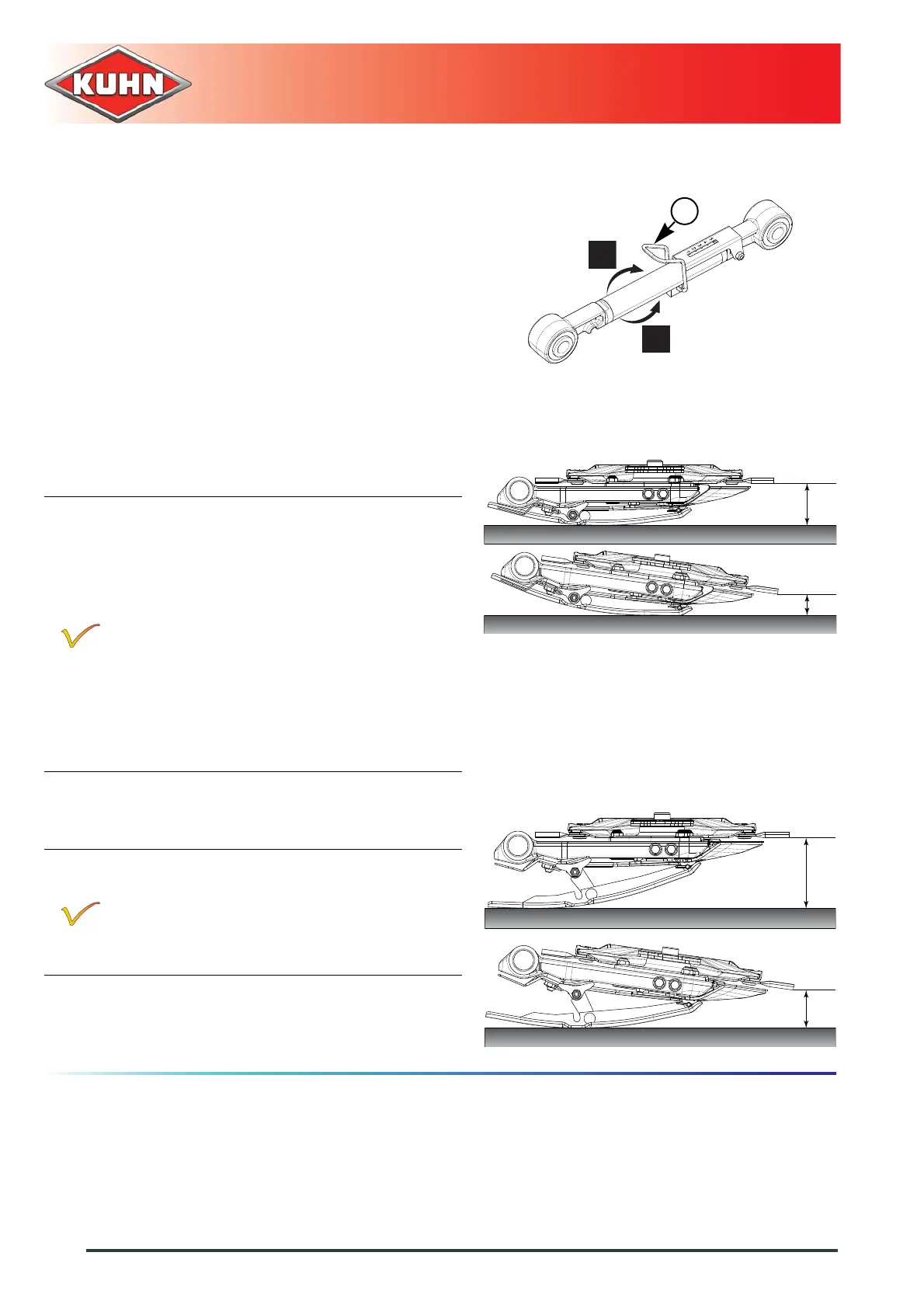

The adjustment is centralized by means of the pitch
angle rod.
The height can be adjusted between 55 and
150 mm (2.17’’5.91"):
• Mark 1 = 55 mm (2.17’’).
• Mark 5 = 150 mm (5.91’’).
To adjust the cutting height:
- Lift lock (1).
- Turn clockwise to reduce cutting height (a).
- Turn counter-clockwise to increase the cutting
height (b).
- Lower lock (1).
With skids shoes in low position:
The maximum cutting height L1 = 95 mm (3.74’’)
is obtained when the disks are parallel to the
ground.
The minimum height must not be below L2 =
55 mm (2.17’’).
Too low a cutting height can lead to:
• Excessive disc and knife wear.
• Crop being contaminated by soil.
• Delay in regrowth.
• Risk of tearing out the grass cover in wet
conditions.
With skid shoes in high position:
The maximum cutting height L1 = 150 mm
(5.91’’) is obtained when the disks are parallel to
the ground.
The minimum height must not be below L2 =
90 mm (3.54’’).
1
a
b
L2
L1
L2
L1
