FC3160TCD-3560TCD-4060TCD
34
6. - Putting into service
KN284DGB B
Mower conditioner
6.2 Coupling and uncoupling
6.2.1 Description of coupling elements
- A PTO shaft 1 3/8’’ - 6 splines.
- 2 check chains (Optional equipment).
- A hose that controls the mowing unit
raising/lowering.
- Two hydraulic hoses controlling the drawbar shift
cylinder.
- A 7-pin electric plug for the electrical signalling
equipment.
6.2.2 Preparing the tractor
The machine adapts to tractors fitted with a 3-point
hitch coupler category 2 or 3.
The tractor must be equipped with:
• 1 double acting hydraulic outlet.
• 1 single acting hydraulic outlet
The tractor must be fitted with lower link
stabilizers.

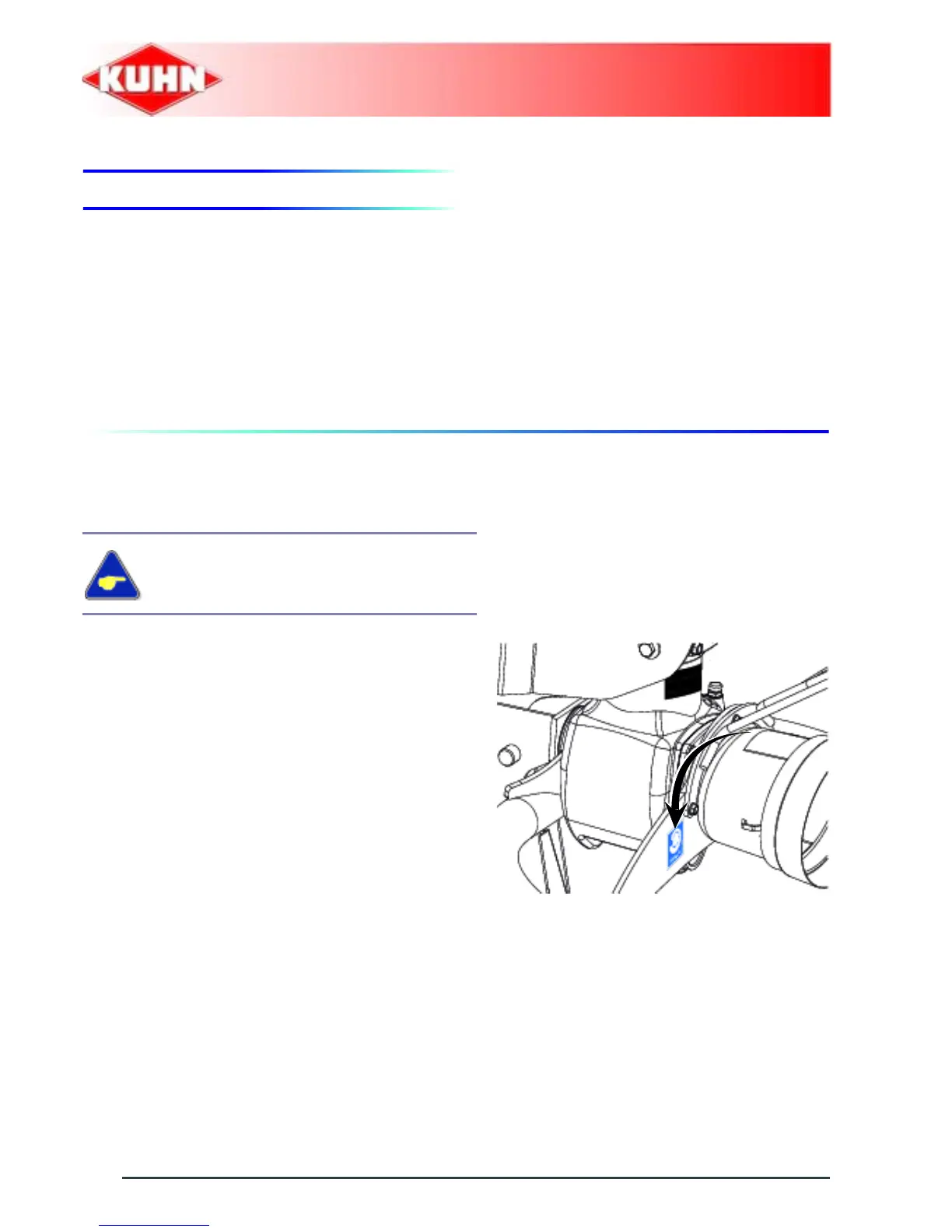

The tractor PTO stub must rotate at a speed of 1000
min
-1
.
