KUHN FC3160TCD - Raised Skid Shoes and SMV Sign

FC3160TCD-3560TCD-4060TCD
70
10. - Optional equipment
KN284DGB B
Mower conditioner
10.5 Raised skid shoes adjustable in
height
Kit no. 1066310
The raised skid shoes enable mowing higher,
between 55 mm (2.17’’) and 150 mm (5.91’’).
10.5.1 Adjustments
 Raised skid shoes

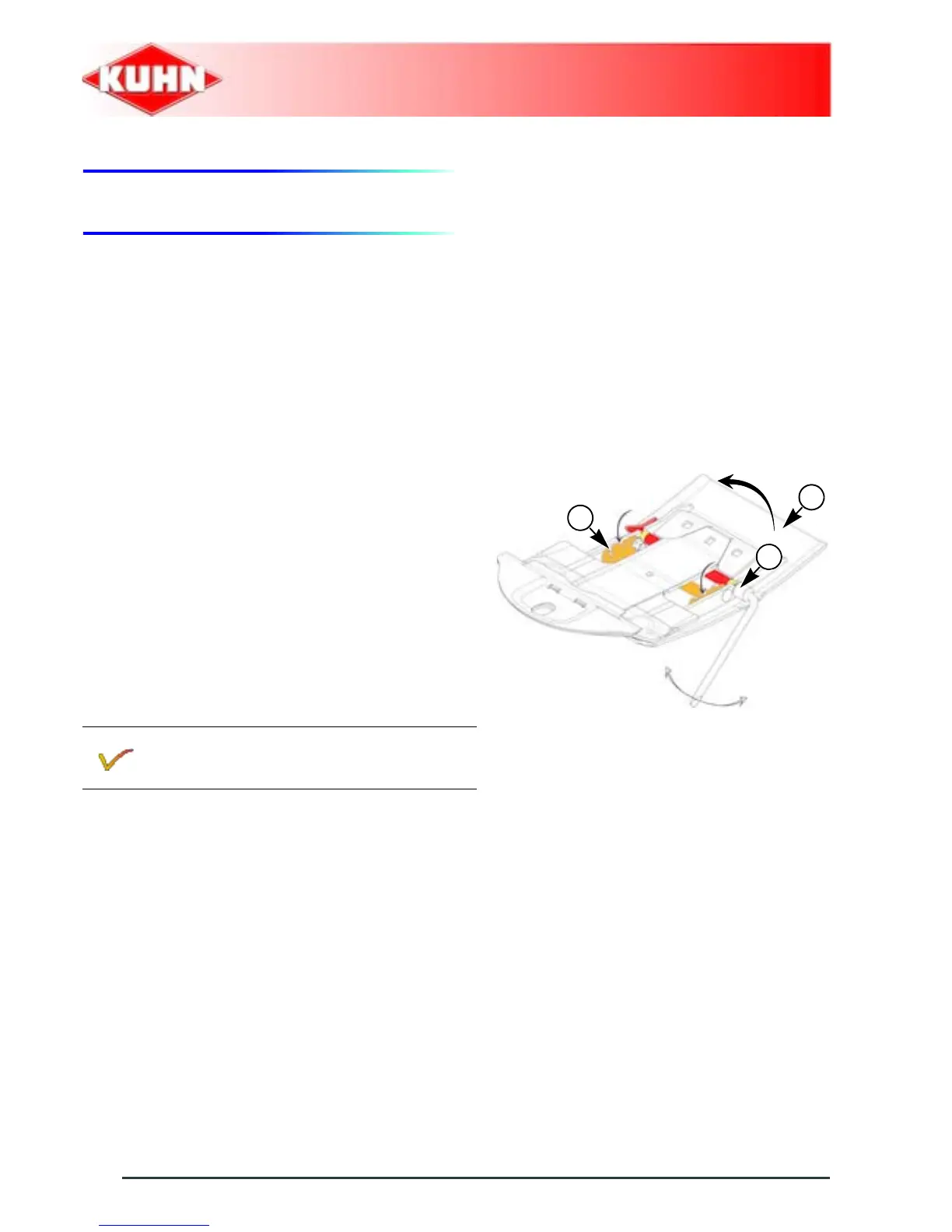

The skid shoes can be adjusted to 2 positions:
Low position:
- Loosen screw (1).
- Pivot lever (2) downwards.
- Raise skid shoe (3).
- Tighten screw (1).
1
2
3
Adjust both sides to the same setting
