8. - Instructions for work
FC3160TCD-3560TCD-4060TCD
53
KN284DGB B
Mower conditioner

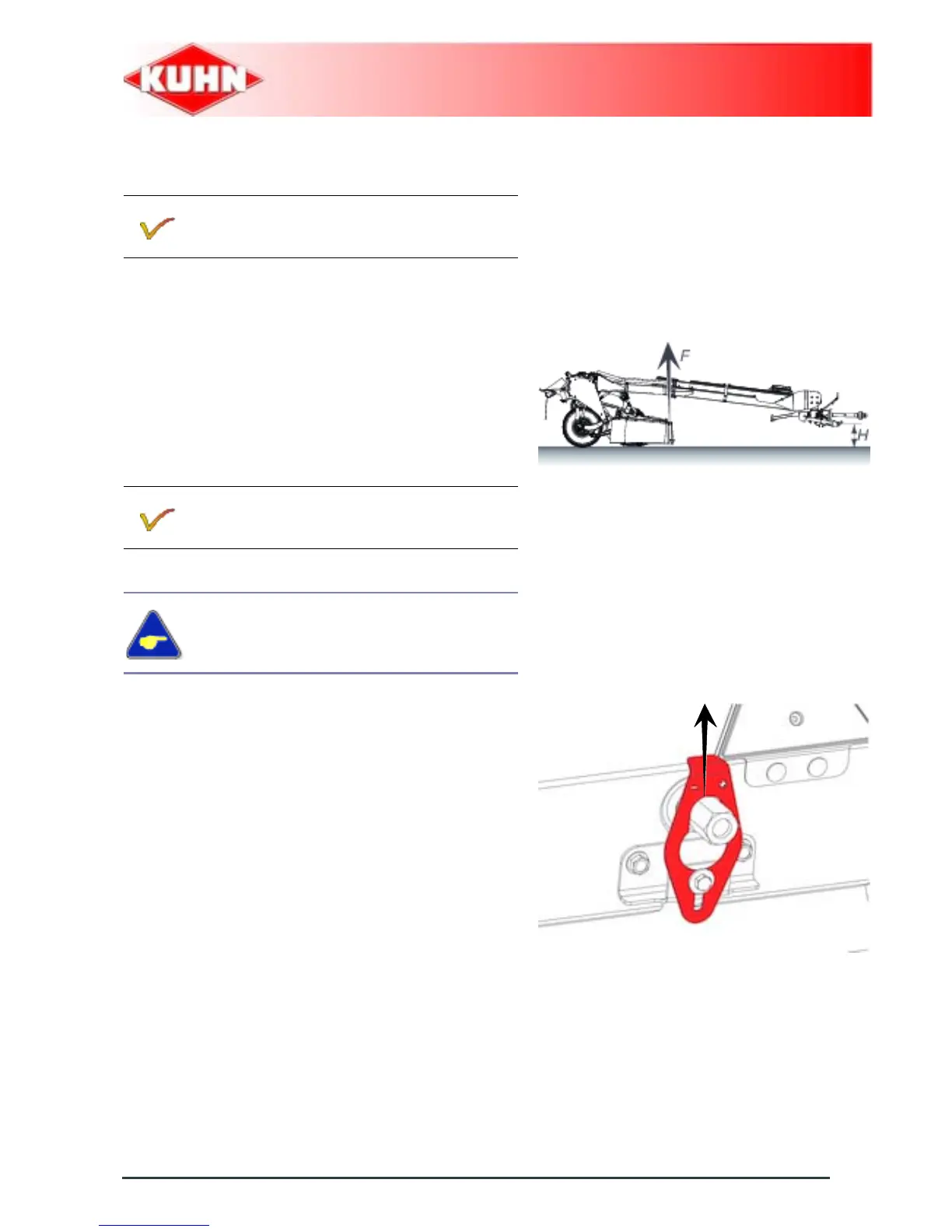

8.2.2 Ground pressure
To check the ground pressure::
To adjust the suspension
The ground pressure is adjusted independently
on each side of the mower unit.
- Check that the hitch pins are at the proper height
H = 650 mm (26’’).
- Raise the mowing unit:
• Force F must equal approximately 60 daN (135
lbf) on each side.
The pressure must be adapted to the nature and
moisture degree of the ground.
Adjust both sides to the same setting.
- Move the locking plate upwardly to release the
rotation of the adjustment screw.
