KUHN FC3160TCD - Working Position Adjustments

8. - Instructions for work
FC3160TCD-3560TCD-4060TCD
51
KN284DGB B
Mower conditioner
8.2 Adjustments in working position

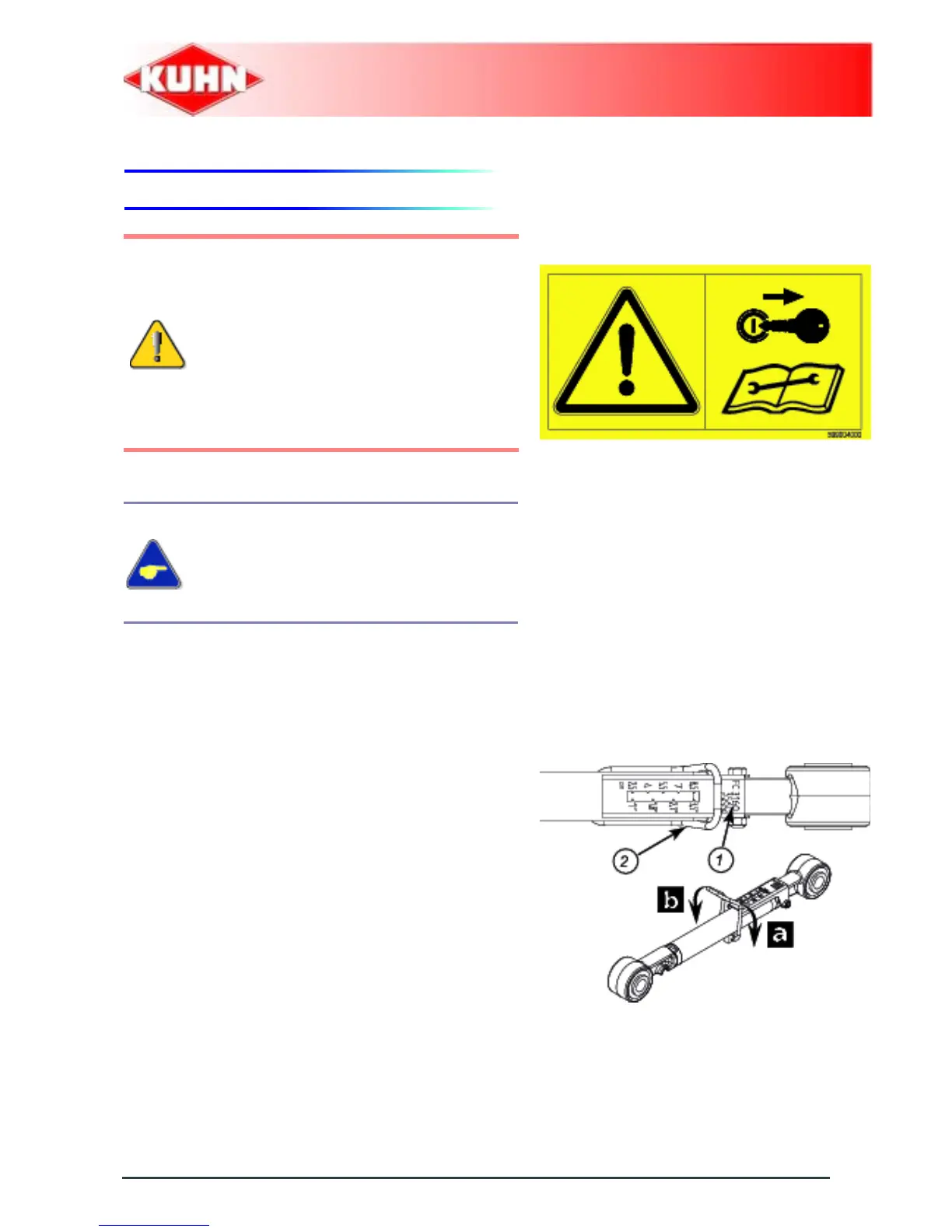

8.2.1 Cutting height
The height can be adjusted from 25 to
85 mm (1"/3.3"). Centralized adjustment by means
of a pitch angle adjustment rod fitted with a
graduated scale (1).
Before making any adjustment:
- Check that nobody is within the
machine pivoting area.
- If there is someone, make sure the
person moves away.
- Wait until the rotating parts have
come to a complete stop.
Place the machine on flat ground.
The cutting height is adjusted with the
machine attached, hitch pins at 650 mm (26’’)
from the ground.
Cutting height is always adjusted before
adjusting the ground pressure.
To adjust the cutting height:
- Lift lock (2).
- Turn clockwise to reduce cutting height (a).
- Turn counter-clockwise to increase the cutting
height (b).
- Lower lock (2).
