KUHN FC3160TCD - Swathing and Wide Spreading

8. - Instructions for work
FC3160TCD-3560TCD-4060TCD
57
KN284DGB B
Mower conditioner

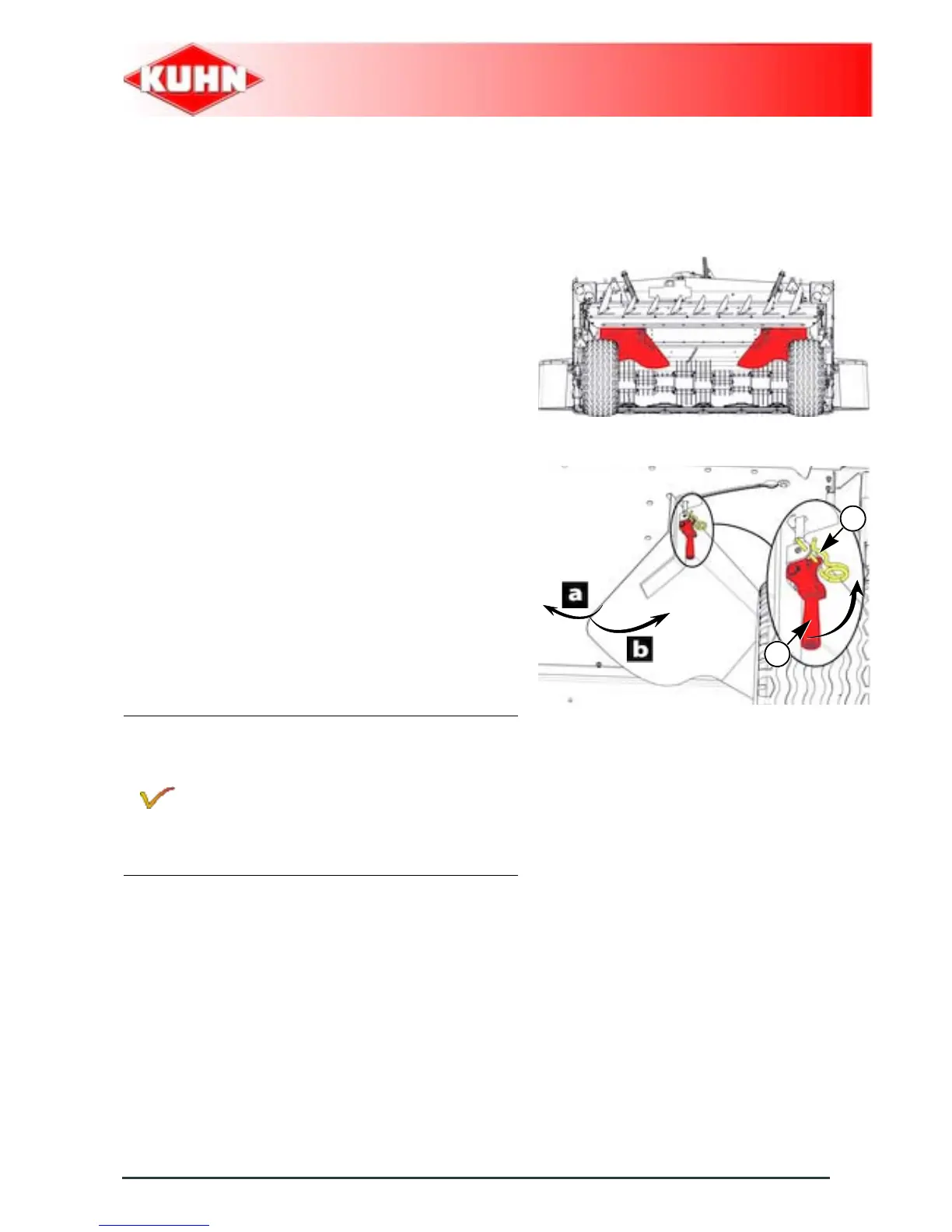

8.2.5 Swathing and wide spreading
 Swathing system
Swath width adjustment:
The swathing system comprises:
• 2 swath shields.
- Remove R-clip (1).
- Lift handle (2):
• Pivot swath shields inwards to reduce the swath
width (a).
• Pivot swath shields outwards to increase the
swath width (b).
- Lower the handle (2) as far as it will go.
- Reinstall R-clip (1).
- Proceed the same way on the other side.
2
1
FC3160TCD:
• The swath width can be adjusted of
approximately 0.90 m (2’11’’) to
2.30 m (7’7’’).
FC3560TCD / FC4060TCD:
• The swath width can be adjusted of
approximately 1.10 m (3’7’’) to
2.70 m (8’10’’).
