8. - Instructions for work
KN284DGB B
Mower conditioner

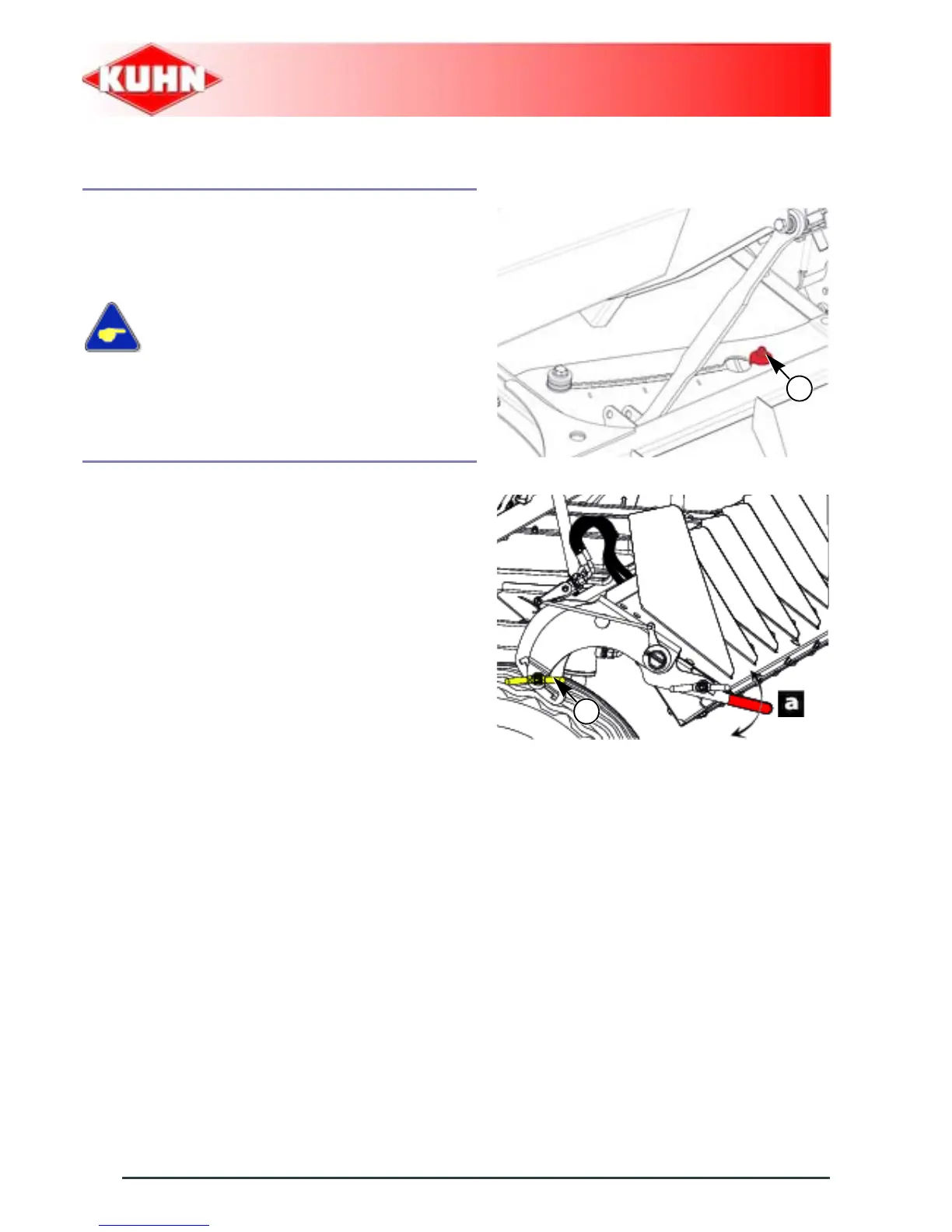

Rear hood adjustment:
Stop (1) enables preventing interferences
between swath shield and wheel (With large
wheels).
1
The rear hood can be pivoted according to the
forage density in order to improve the swath delivery
and structure.
- Loosen butterfly nut (1).
- Pivot hood (a).
- Tighten butterfly nut (1).
Repeat procedure until required result is obtained.
1
