FC3160TCD-3560TCD-4060TCD
38
6. - Putting into service
KN284DGB B
Mower conditioner

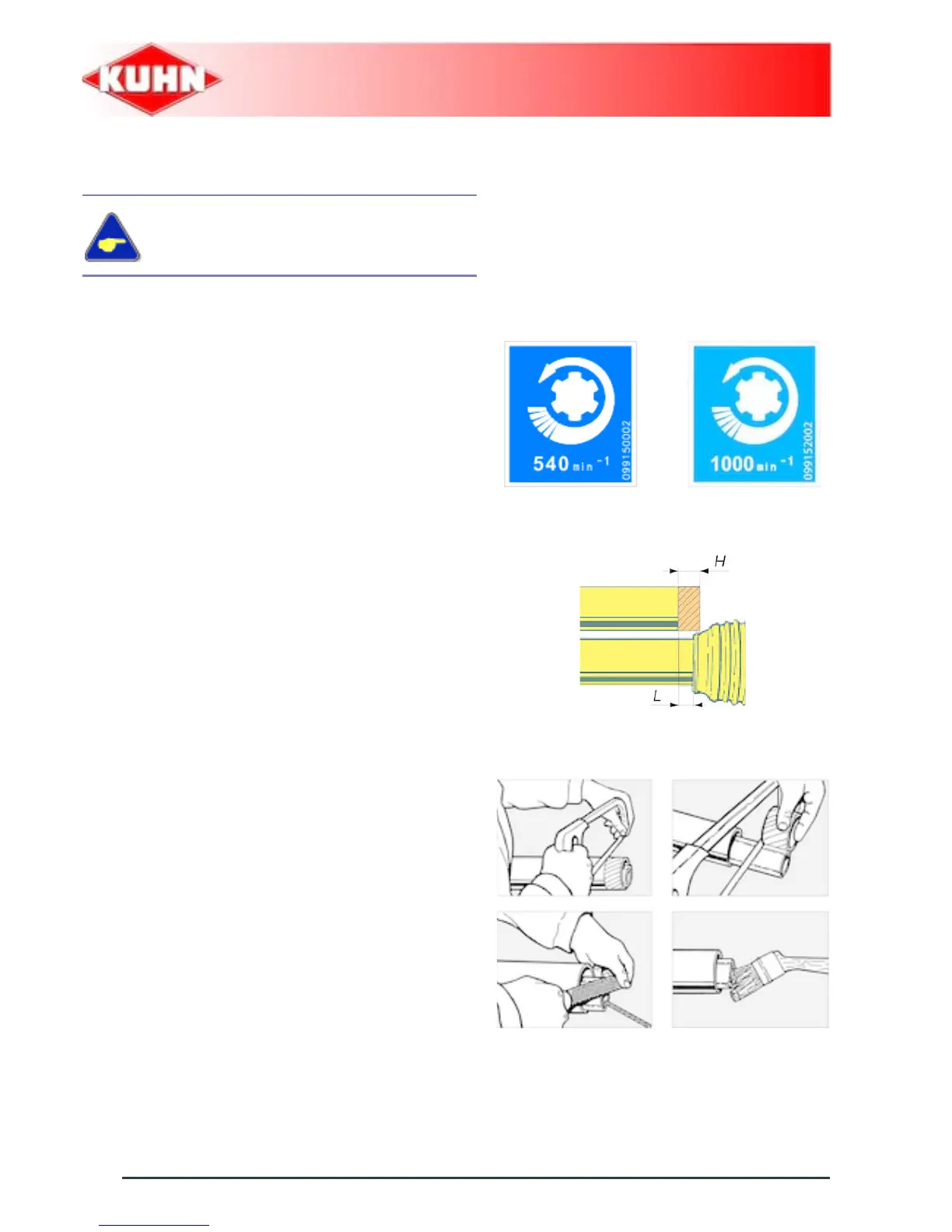

6.2.7 Primary PTO shaft
Make sure that the PTO shaft is correctly
adjusted, to avoid premature wear and tear.
The direction of rotation is shown on a decal.
- Separate the two half PTO shafts and connect
them to the machine's input shaft and to the
tractor PTO stub.
Check the length of the PTO shaft:
- When the PTO shaft is in its maximum overlap
position (retracted), tubes should not butt against
the yokes. As a safety measure, a clearance (L)
of at least 25 mm (1’’) must be maintained.
- When the PTO shaft is in its maximum extended
position, the tube overlap must be more than
250 mm (10’’).
If this is not the case:
- Mark length (H) to cut when the transmission is
the maximum overlap position.
- Shorten the guard tubes and the transmission
tubes by the same length.
- Bevel and clean the tubes.
- Grease the inside of the outer tube.
