10. - Optional equipment
FC3160TCD-3560TCD-4060TCD
71
KN284DGB B
Mower conditioner

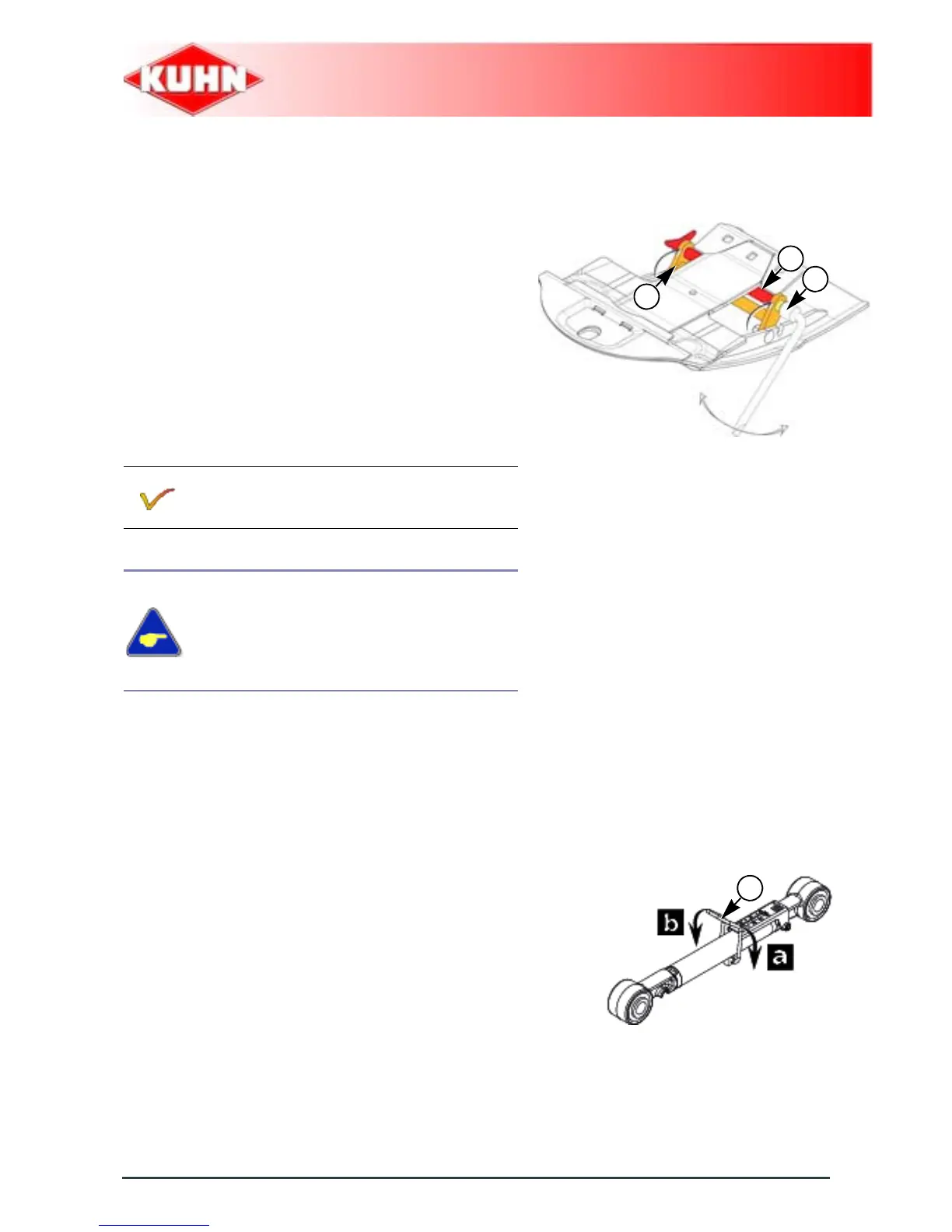

High position:
Cutting height
The height can be adjusted from 55 to
150 mm (2.17"/5.91"). The adjustment is
centralized by means of the pitch angle rod.
To adjust the cutting height:
- Loosen screw (1).
- Pivot lever (2) upwards and insert hooks on pin
(3).
- Tighten screw (1).
Adjust both sides to the same setting
Place the machine on flat ground.
The cutting height is adjusted with the
machine attached, hitch pins at 650 mm (26’’)
from the ground.
Cutting height is always adjusted before
adjusting the ground pressure.
- Lift lock (1).
- Turn clockwise to reduce cutting height (a).
- Turn counter-clockwise to increase the cutting
height (b).
- Lower lock (1).
