15 / 65Issued: 29.11.2012 Version: KR C4 Interbus 1.1 V2 en (PDF)

5 Start-up and recommissioning

5.1 IBS PCI SC/RI-LK

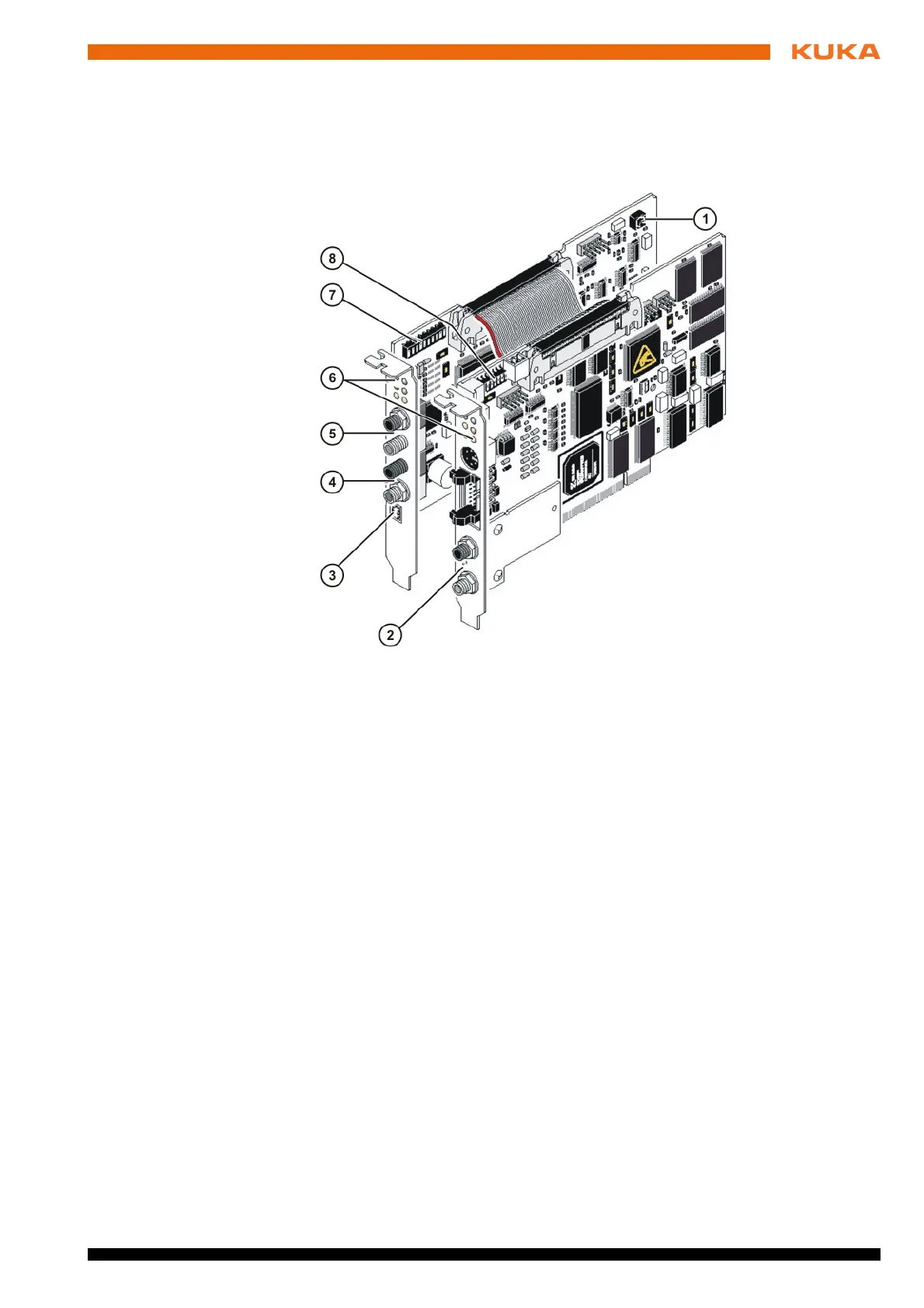

Fig. 5-1: Configuration of the IBS PCI SC/RI-LK controller board

1 Reset button (slave)

2 Master interface (Remote Out, outgoing remote bus)

3 External 24 V supply voltage (slave)

4 Slave interface (Remote Out, outgoing remote bus)

5 Slave interface (Remote In, incoming remote bus)

6 Indicator elements (LEDs)

7 DIP switches for the slave configuration

8 DIP switches for the master configuration
