Interbus 1.1
7.2 Activating/deactivating the Interbus driver
Description The Interbus driver can be activated and deactivated via the HMI.
The Interbus driver is active once it has been installed.
Precondition
“Expert” user group
Procedure 1. In the main menu, select Configuration > Inputs/outputs > I/O driver.
2. Activate/deactivate the Interbus driver:
Activate:
Set the check mark in the “Installed” column after the Interbus name.
Deactivate:
Remove the check mark in the “Installed” column after the Interbus
name.
3. Press the Close icon. Answer the request for confirmation with Yes. Re-
configuration is carried out.

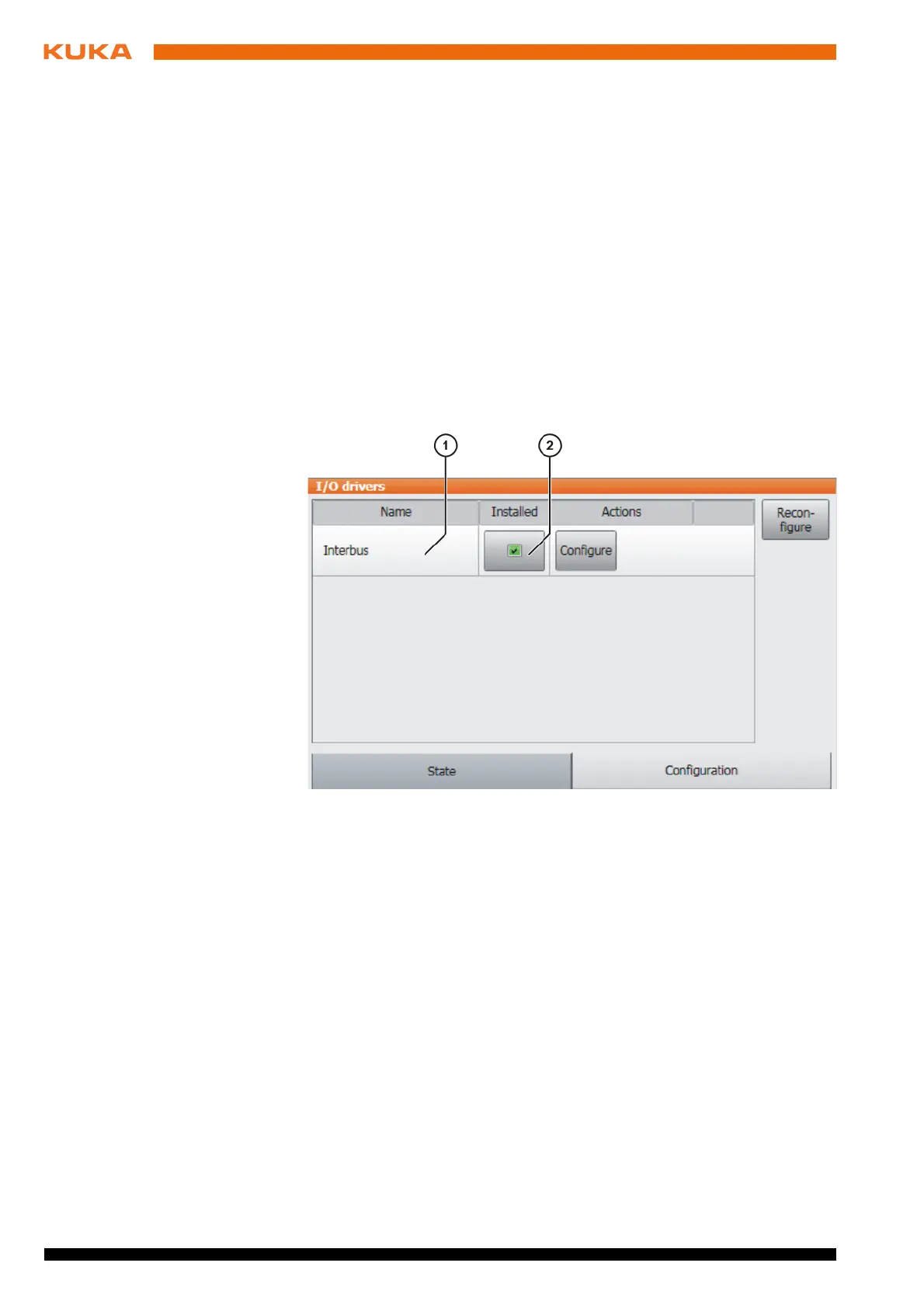

Fig. 7-1: Activating/deactivating the Interbus driver
1 Interbus name
2 “Installed” column
