3 Product description
DIP switches

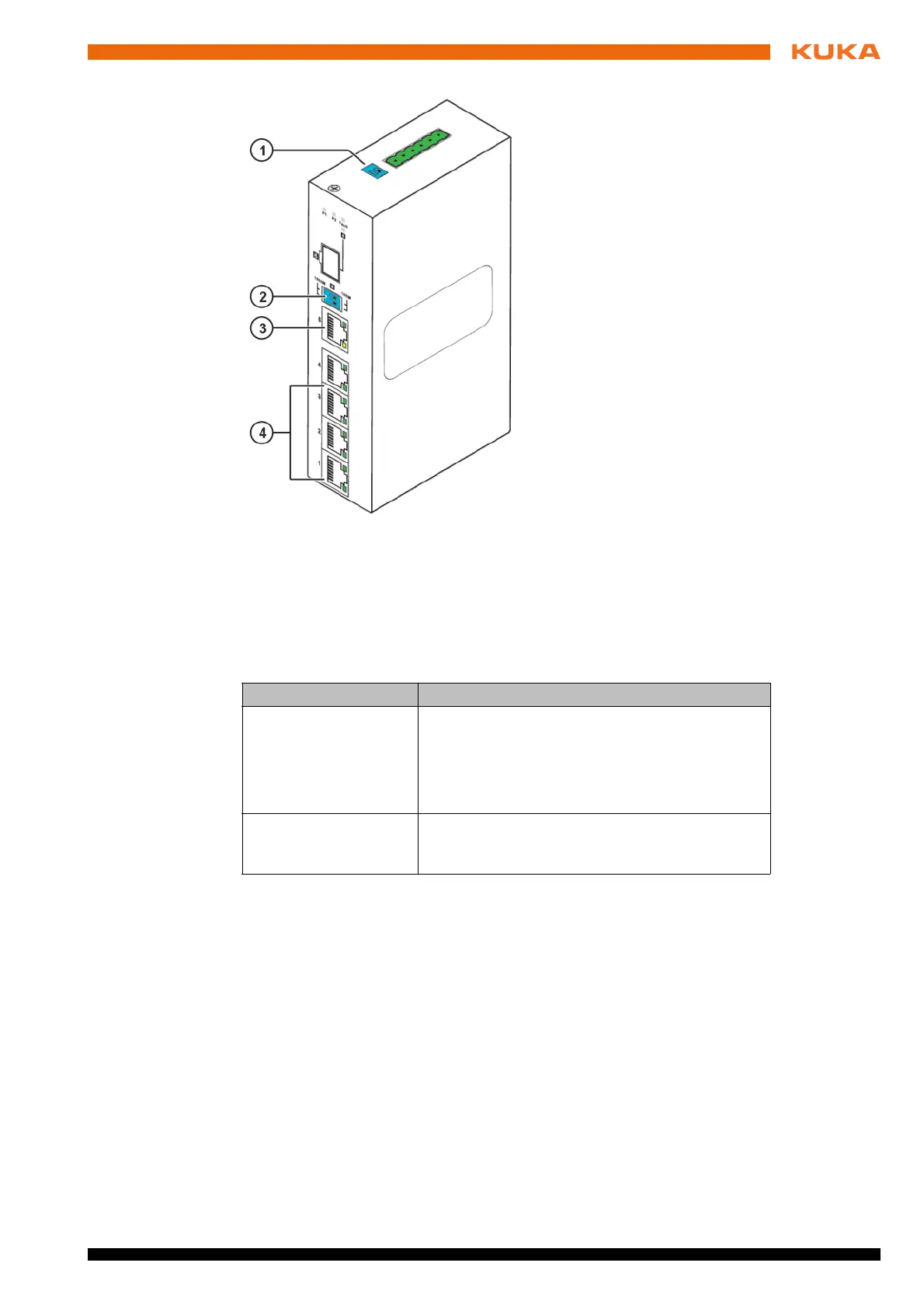

Fig. 3-3: KUKA GigE switch – overview
1 DIP switch for the function “Power Alarm Relay Output”
2 Changeover switch for port 6 (selection of SFP speed)
3 RJ45 PoE connection for the robot controller
4 3 RJ45 PoE connections for cameras
Designation Description
DIP switch for “Power
Alarm Relay Output”
DIP switch 1: P1 error message
DIP switch 2: P2 error message
On: Activated
Off: Deactivated
Changeover switch for
port 6 (selection of
SFP speed)
DIP switches 1 and 2 on: 100 Mbps
DIP switches 1 and 2 off: 1000 Mbps
