KUKA.VisionTech 2.1
Interfaces, KR C4
compact
For connection of the connecting cables between the KR C4 compact, switch
and cameras, the following connectors are available at the interfaces:
Connecting
cables, KR C4
compact

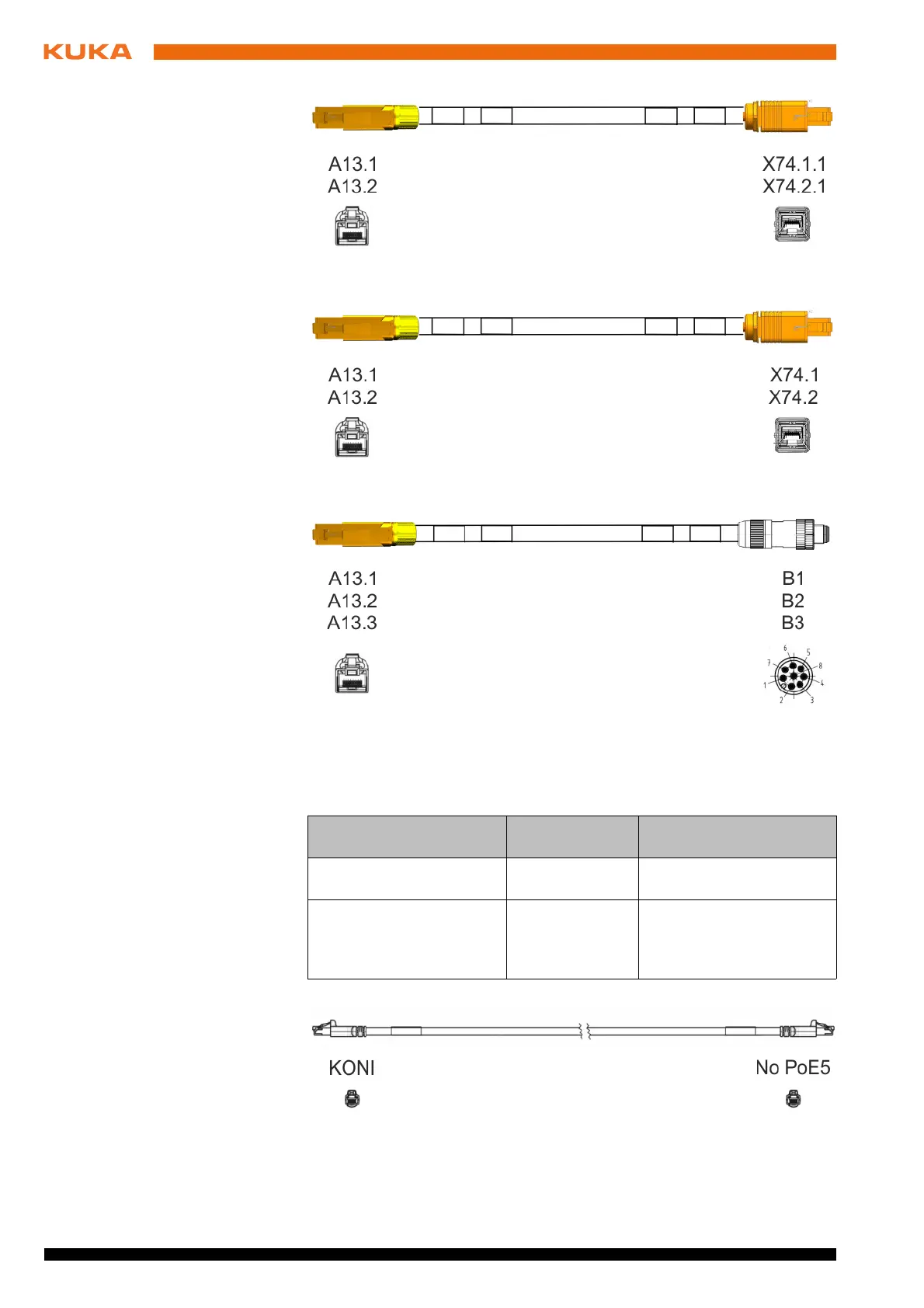

Fig. 9-10: Connecting cable, switch – linear unit
Fig. 9-11: Connecting cable, switch – robot
Fig. 9-12: Connecting cable, switch – camera
Connecting cable Connector des-
ignation
Connections
KR C4 compact – switch KONI – No
PoE5
RJ45 connectors at both
ends
Switch – camera PoE 1 – B1
PoE 2 – B2
PoE 3 – B3
RJ45 connector – M12
male connector, 8-contact
Fig. 9-13: Connecting cable, KR C4 compact – switch
