Status message Description
Ignition heating: The heating element ignites the fuel. Ignition was successful if
the photocell detects a flame.
Ignition wait: Ignition procedure running without heating element. Ignition
was successful if the photocell detects a flame.
Complete ignition: After ignition, the flame spreads over the entire burner plate
Operation: Combustion operation
Boiler output:
Current specified output in comparison to the nominal load in percent
Actual boiler temperature:
Measured temperature of the boiler water
Set boiler temperature:
Stored set temperature of the boiler water

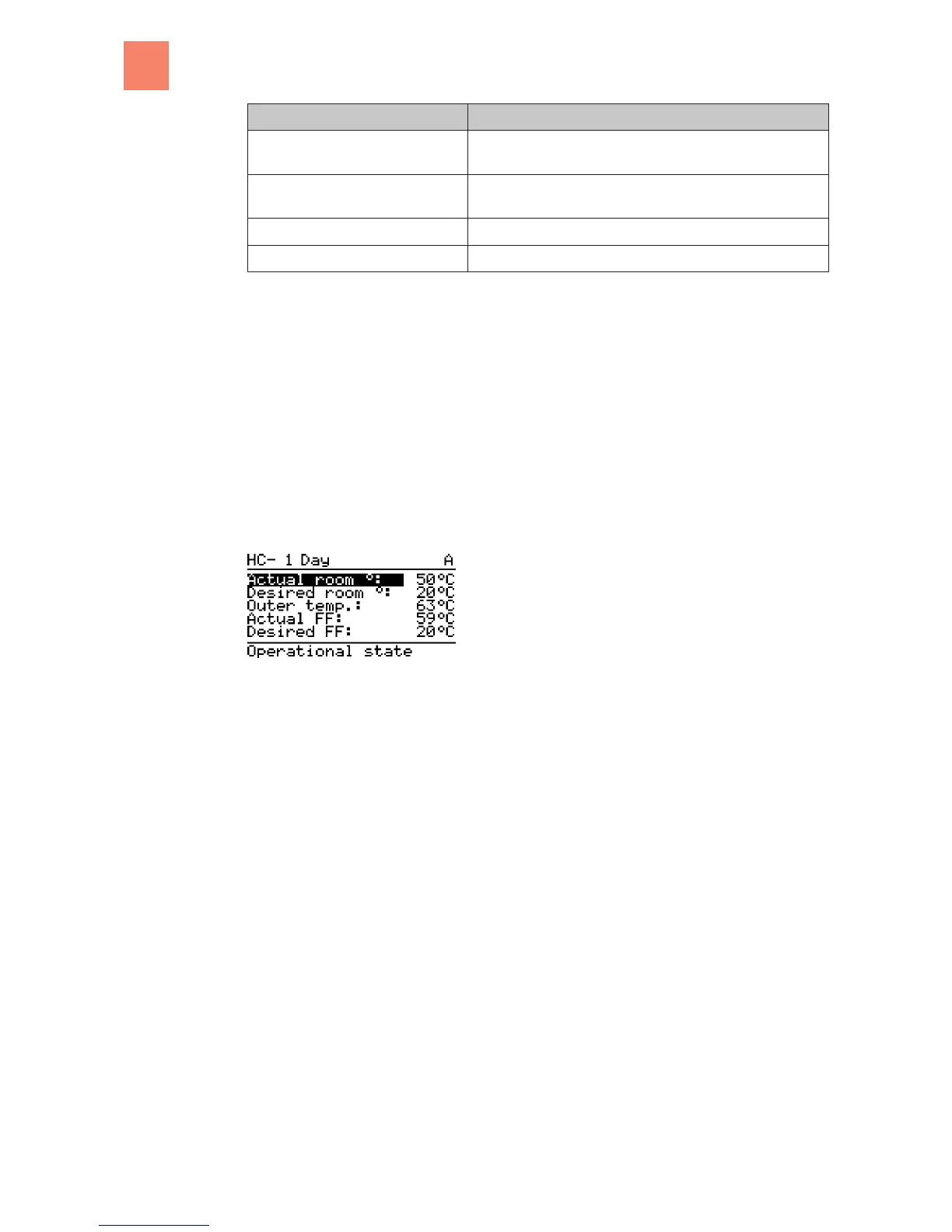

Heating circuits
Main menu >> Operating state >> Heating circuits >> Heating
circuit No.
The header on the left shows the current heating circuit and its operating mode (Day|Night|
Frost protection|Manual mode|Off).
The header on the right shows the current status of the heating circuit:
A: Request
All other displays indicate why the heating circuit has no request:
OT: Outdoor temperature-dependent shutdown
B: Boiler priority
SP: Screed program
FP: Frost protection program
FS: Frost protection selector switch
F: Fast reduction
HP: Holiday program
TP: Outside of the heating times of the time program
Roomtemp.actual:
Measured temperature on the room sensor
Roomtemp.set:
Stored set room temperature
Outsidetemperature:
Measured temperature on the outdoor sensor
6.8.2
6
The commands of the KWB Comfort 3 control
Operational state
32
B KWB Easyfire EN, 05.2011
