KWB Easyfire User Manual

Request
Status of the heat request (On|Off).
On: Buffer tank requesting heat – the combustion is started.
Off: Buffer tank requesting NO heat.
Pump
Displays that a request is present and heat is available: Then, the buffer charge pump or group
charge pump is in operation (On|Off).
Request:
Status of the heat request of the group at the source, typically the boiler or a buffer (On|Off)

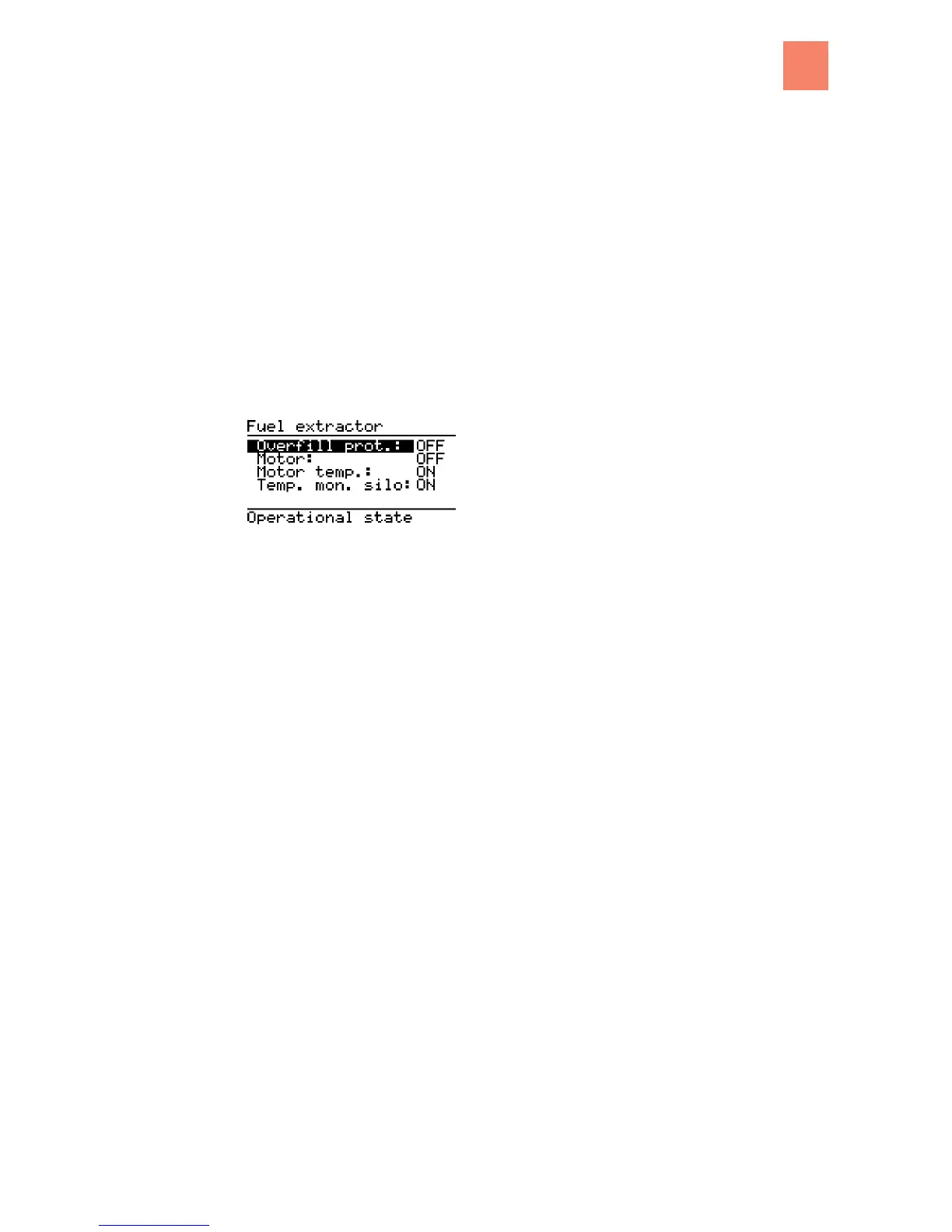

Fuel extractor (worm)
Main Menu >> Operating Status >> Fuel Extraction
Overfill protection:
Status of the sensor for the display of the fill level in the drop stage (On|Off)
On: Drop shaft filled
Off: Drop shaft NOT filled
Motor:
Status of the conveyor system motor (On|Off)
On: Motor in operation
Off: Motor NOT in operation
Temp.Motor:
Status of the motor overheating protection (On|Off)
On: Normal operation
Off: Motor overheated
TMC fuel:
Status of the temperature switch to the storage area monitoring ("TMC" = Temperature moni-
toring of the combustion chamber) (On|Off)
On: Normal operation
Off: Fire alarm in the fuel storage area or cabling problem
Fuel extractor (suction system)
Main Menu >> Operating Status >> Fuel Extraction
6.8.5
6.8.6
The commands of the KWB Comfort 3 control
6
Operational state
B KWB Easyfire EN, 05.2011
35

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
