Suction system

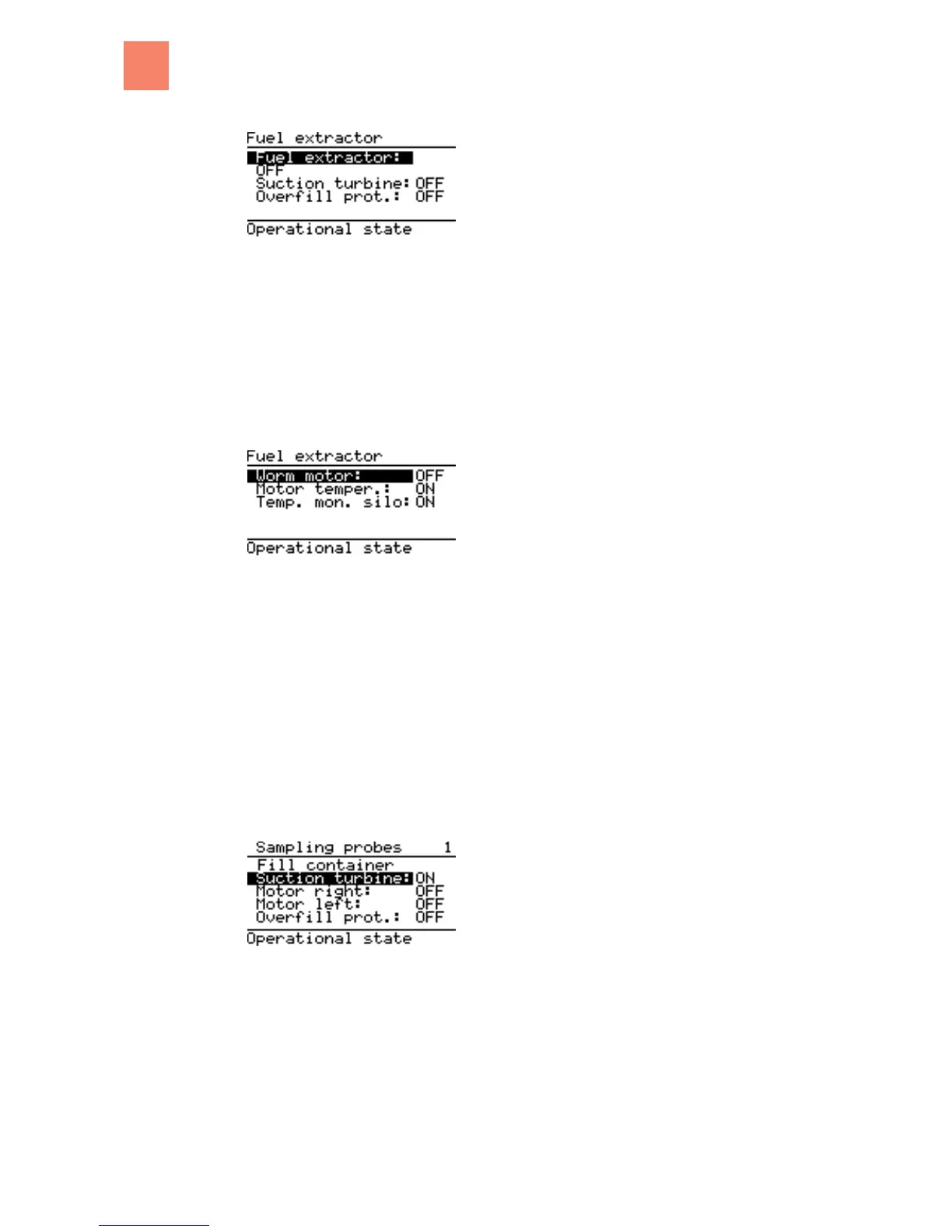

Displays the status of the conveyor system (On|Off).
Displays the status of the suction turbine (On|Off).
On: Suction turbine in operation
Off: Suction turbine NOT in operation
Shows the status of the sensor of the container fill level (On|Off)
On: Drop shaft filled
Off: Container NOT filled
Suction system with conveyor worm
Shows the status of the sensor on the conveyor system motor (On|Off)
On: Conveyor system motor in operation
Off: Conveyor system motor NOT in operation
Displays the status of the motor overheating protection (On|Off)
On: Normal operation
Off: Motor overheated
Displays the status of the temperature switch to the storage area monitoring (On|Off)
On: Normal operation
Off: Fire alarm in the fuel storage area or cabling problem
Suction system with sample probes
For suction systems with sample probes, the menu shows additional states:
Note: The header or the first line shows the status.
The digit in the upper right corner shows the current position of the switch unit:
•
0 … Start position (neutral point)
• 1, 2 or 3 …Suction troughs
• 4, 5 or 6 … Flushing troughs
The first line shows the status of the unit (Off|Fill container|Flush).
Displays the status of the suction turbine (On|Off).
Displays that the motor is to turn to the right (On|Off).
Fuel extractor:
Suction turbine:
Overfill protec-
tion:
Worm drive:
Temp. drive:
TMC fuel:
Vacuum turbine
Motor right
6
The commands of the KWB Comfort 3 control
Operational state
