5 Press U or V to select Adjust Magenta.
6 Press [OK]. The Adjust Magenta screen appears.
Values corrected are H-1, H-2, H-3, H-4, H-5, H-6, H-7, V-3.

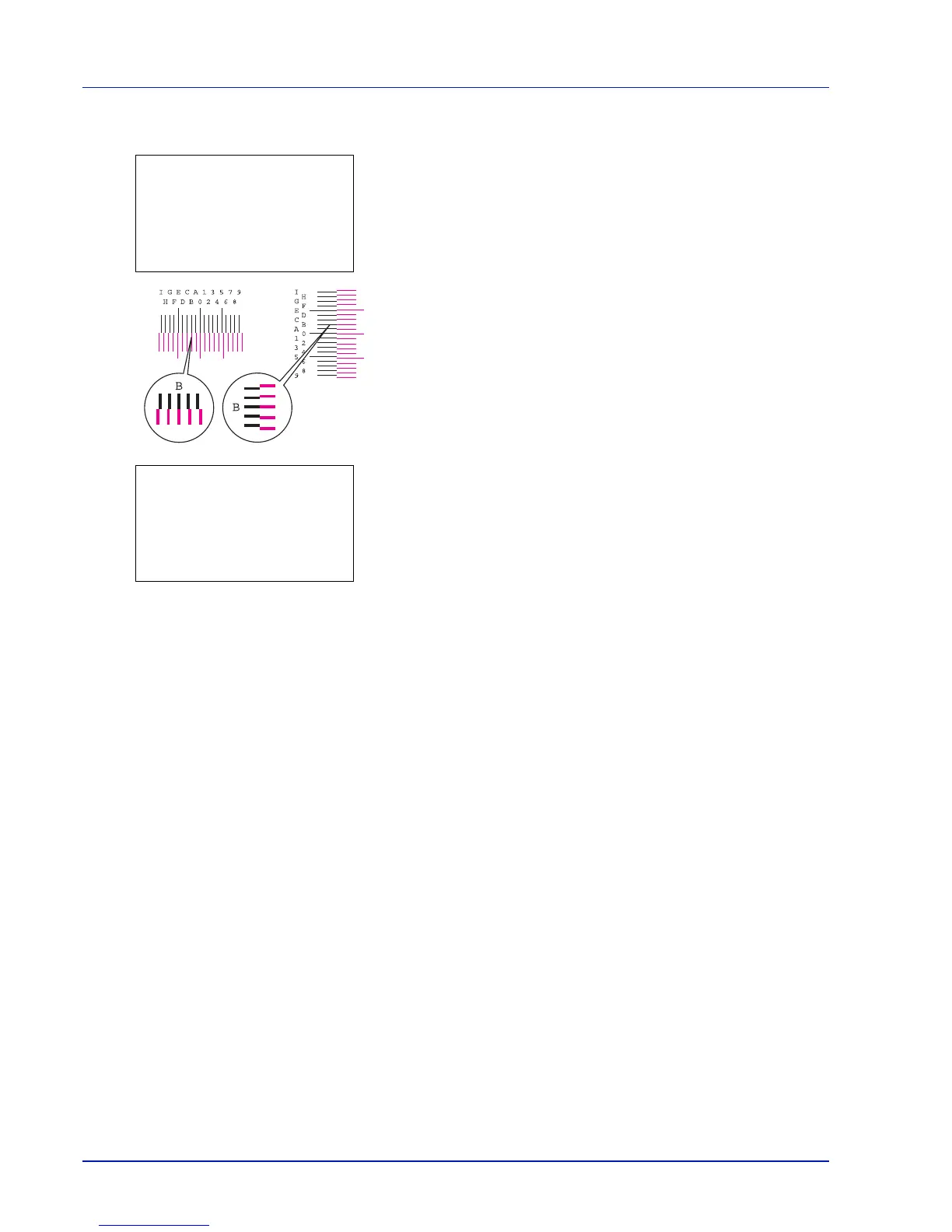

7 In the H and V charts for magenta printed in Print Chart above, note
the values where the lines are closest to forming a single straight line.
This would be B in this figure.
8 Press U or V until that value is displayed.
9 Press Y or Z to move the cursor right or left.
Using the same procedure as for the H-1 value, display the other
values identified in the color registration correction chart. When you
have completed all the values, press [OK]. The setting is saved and
you are returned to the Color Regist. Detail menu screen.
Adjust Magenta:
a
b
(I - A, 0 - 9)
H-1:
/0-
H-2: 0 H-3: 0
H-4: 0 H-5: 0 H-6: 0
H-7: 0 V-3: 0
Adjust Magenta:
a
b
(I - A, 0 - 9)
H-1:
/*-
H-2: 0 H-3: 0
H-4: 0 H-5: 0 H-6: 0
H-7: 0 V-3: 0
