Kyocera KM-4230

2A3/4
2-2-4

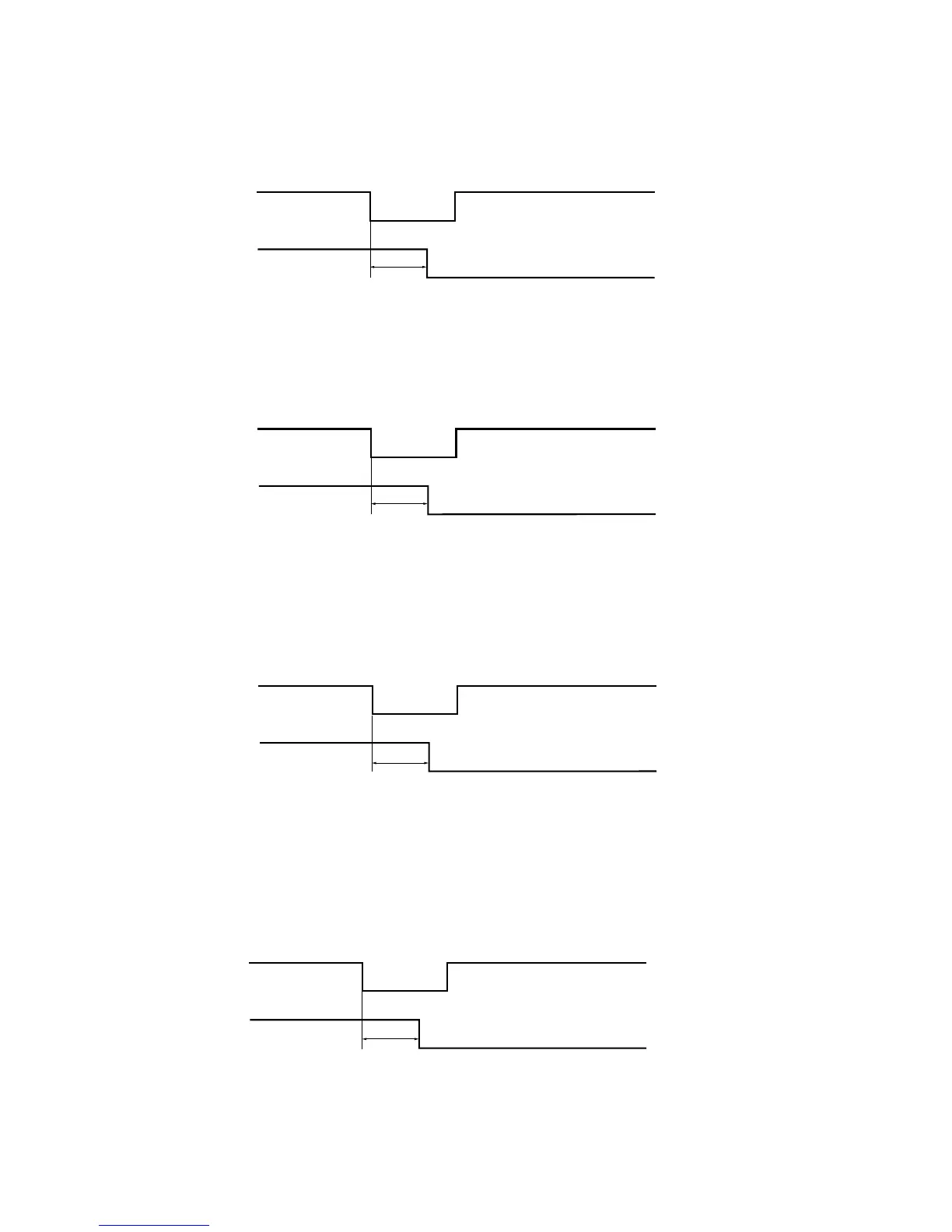

• Jam in copier vertical paper conveying section (jam code 18)
The feed switch (FSW) does not turn on within 780 ms of paper feed switch 1 (PFSW1)
turning on.
FSW
PFSW1
780 ms
On
Off
On
Off
Timing chart 2-2-4
Paper feed switch 1 (PFSW1) does not turn on within 733 ms of paper feed switch 2
(PFSW2) turning on.
PFSW2
733 ms
On
Off
On
Off
PFSW1
Timing chart 2-2-5
Paper feed switch 2 (PFSW2) does not turn on within 814 ms of paper feed switch 3
(PFSW3) turning on.
PFSW3
814 ms
On
Off
On
Off
PFSW2
Timing chart 2-2-6
• Jam in converging section (jam code 20)
The registration switch (RSW) does not turn on within 444 ms of the feed switch (FSW)
turning on.
FSW
444 ms
On
Off
On
Off
RSW
Timing chart 2-2-7
