1. Remove the two screws and unlock the two hooks to remove the developing
unit upper cover.
Caution: Place the developing unit on a level surface when loading developer.
Developing unit upper cover
Hook
Screws
Hook

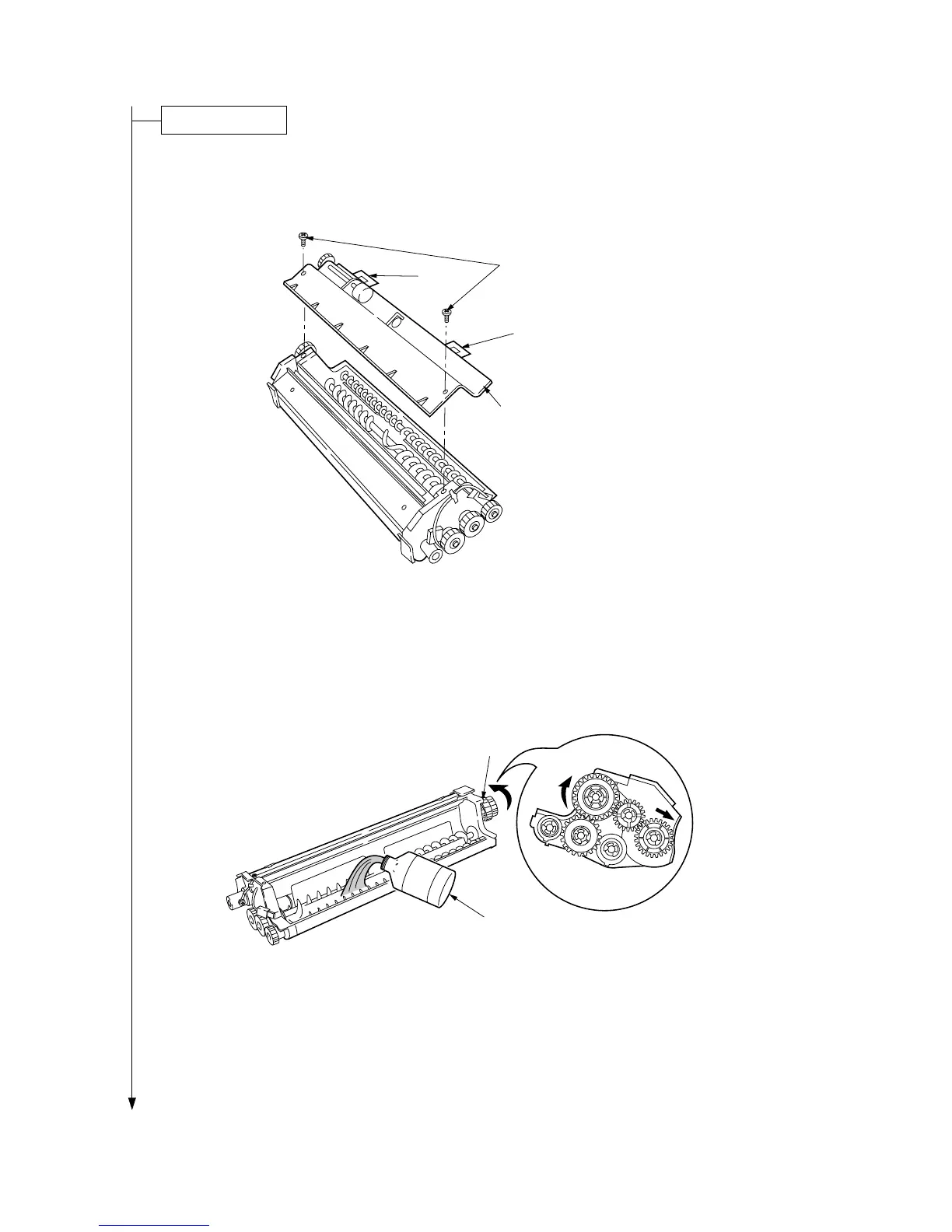

Figure 3-1-20
2. Shake the developer bottle well to agitate the developer.
3. While turning the developing gear in the direction of the arrow in the diagram,
uniformly pour developer into the developing unit.
Caution: Never turn the developing gear in the reverse direction.
Developer
Developing gear
Figure 3-1-21 Loading developer
4. Refit the developing unit upper cover using the two screws.
Load developer.
